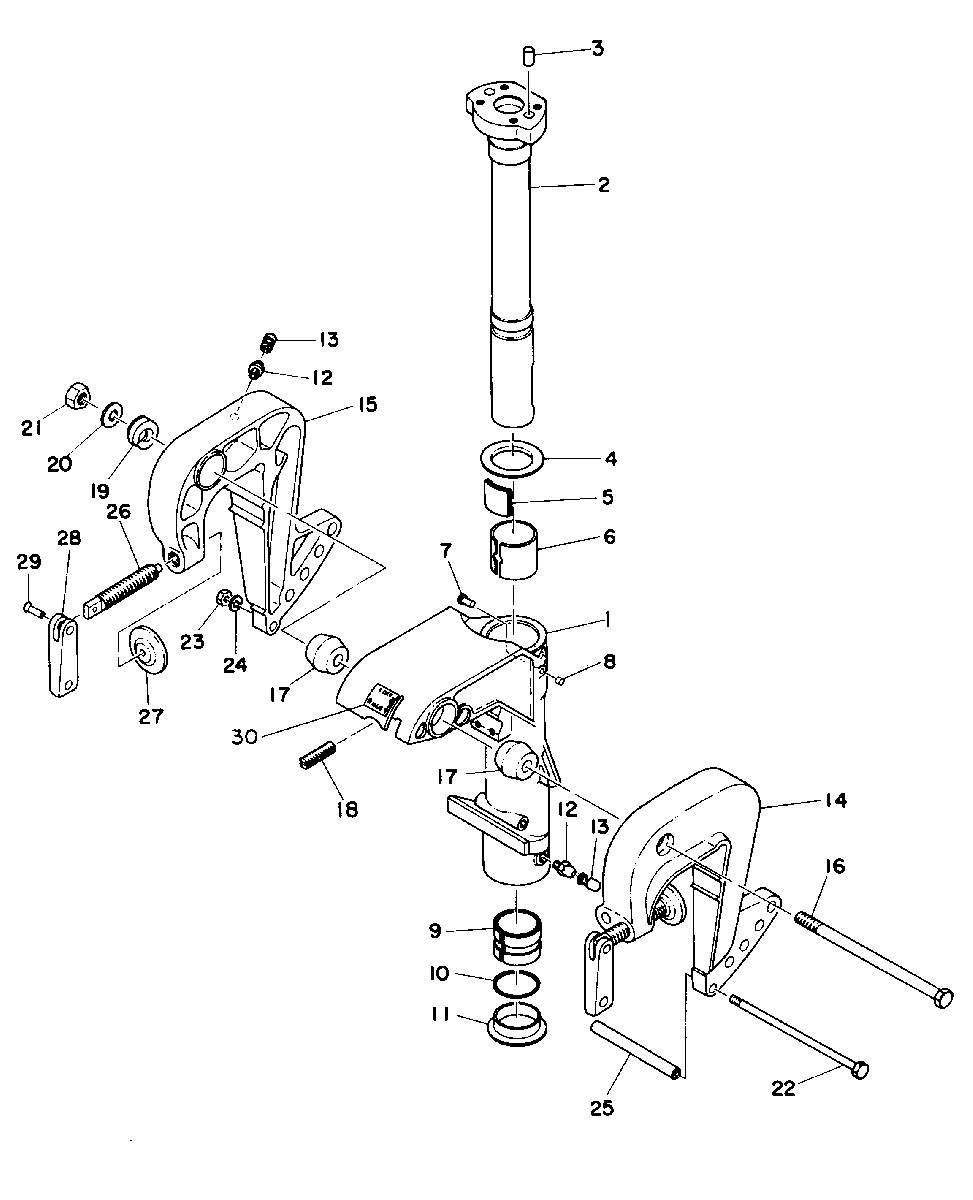

CLAMP AND SWIVEL BRACKET для Mariner - 15A 651-000285 AND BELOW

  • №
    Артикул
    Название
  • 1
    1485-6756M SWIVEL BRACKET
    SWIVEL BRACKET
  • 2
    80880M SHAFT, STEERING PIVOT
    SHAFT, STEERING PIVOT
  • 3
    17-82368M PIN, DOWEL-PIVOT SHAFT
    PIN, DOWEL-PIVOT SHAFT
  • 4
    12-81872M COLLAR, THRUST-PIVOT SHAFT
    COLLAR, THRUST-PIVOT SHAFT
  • 5
    80225M PLATE, FRICTION
    PLATE, FRICTION
  • 6
    23-81960M BUSHING, PIVOT SHAFT-UPPER
    BUSHING, PIVOT SHAFT-UPPER
  • 7
    17-81887M PIN, PIVOT SHAFT
    PIN, PIVOT SHAFT
  • 8
    22-81917M PLUG, PIVOT SHAFT
    PLUG, PIVOT SHAFT
  • 9
    23-81956M BUSHING, PIVOT SHAFT-LOWER
    BUSHING, PIVOT SHAFT-LOWER
  • 10
    25-82273M O-RING, PIVOT SHAFT BUSHING
    O-RING, PIVOT SHAFT BUSHING
  • 11
    23-81958M COLLAR, THRUST-PIVOT SHAFT
    COLLAR, THRUST-PIVOT SHAFT
  • 12
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 13
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 14
    1484-6754M CLAMP BRACKET, PORT
    CLAMP BRACKET, PORT
  • 15
    1484-6755M CLAMP BRACKET, STARBOARD
    CLAMP BRACKET, STARBOARD
  • 16
    10-81708M BOLT, CLAMP BRACKET
    BOLT, CLAMP BRACKET
  • 17
    80230M MOUNT, RUBBER CLAMP BRACKET
    MOUNT, RUBBER CLAMP BRACKET
  • 18
    10-81721M SCREW, FRICTION PLATE ADJUSTING
    SCREW, FRICTION PLATE ADJUSTING
  • 19
    24-82101M SPRING, CLAMP BRACKET BOLT
    SPRING, CLAMP BRACKET BOLT
  • 20
    12-81806M WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 21
    11-82395M NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 22
    10-81724M BOLT, CLAMP BRACKET
    SERIAL 00000000-00012755
    BOLT, CLAMP BRACKET
    SERIAL 00000000-00012755
  • 22
    10-82921M BOLT, CLAMP BRACKET
    SERIAL 00012756-09999999
    BOLT, CLAMP BRACKET
    SERIAL 00012756-09999999
  • 23
    11-82389M NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 24
    13-82212M LOCK WASHER, CLAMP BRACKET BOLT
    LOCK WASHER, CLAMP BRACKET BOLT
  • 25
    23-82116M SPACER, CLAMP BRACKET BOLT
    SPACER, CLAMP BRACKET BOLT
  • 26
    10-81756M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 27
    12-80638M PAD, TRANSOM CLAMP SCREW
    PAD, TRANSOM CLAMP SCREW
  • 28
    809959M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 29
    17-81888M PIN, TRANSOM CLAMP SCREW
    PIN, TRANSOM CLAMP SCREW
  • 30
    80891M INDCATOR
    INDCATOR
