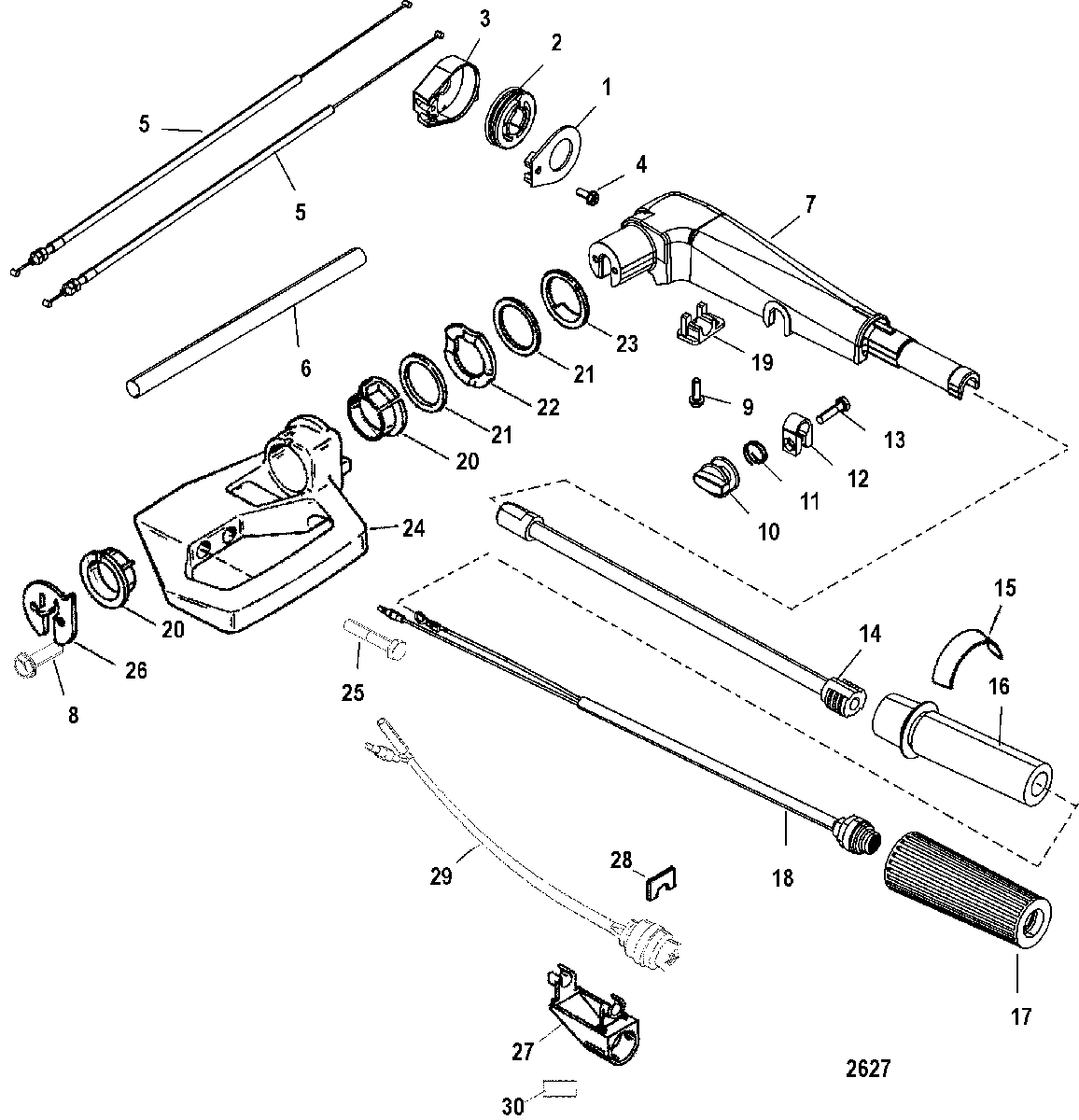

Tiller Handle для Mariner - 13.5 (4-STROKE) (International) 0P401000 & Up

  • №
    Артикул
    Название
  • -
    821468T65 TILLER HANDLE ASSEMBLY
    TILLER HANDLE ASSEMBLY
  • 1
    822148A3 COVER KIT
    COVER KIT
  • 2
    822150 PULLEY
    PULLEY
  • 3
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 4
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 5
    43242T09 CABLE, Throttle
    CABLE, Throttle
  • 6
    85-9600910 SLEEVE
    SLEEVE
  • 7
    821468A66 ARM ASSEMBLY, Steering Handle
    ARM ASSEMBLY, Steering Handle
  • 8
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 9
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 10
    821972T KNOB, Throttle
    KNOB, Throttle
  • 11
    24-96203 SPRING
    SPRING
  • 12
    892995 LOCK, Throttle
    LOCK, Throttle
  • 13
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 14
    821463T01 TILLER TUBE
    TILLER TUBE
  • 15
    37-8242003 DECAL
    DECAL
  • 16
    821465 HANDLE, Throttle
    HANDLE, Throttle
  • 17
    99589003 GRIP
    GRIP
  • 18
    87-8M0104613 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 19
    822441 RETAINER
    RETAINER
  • 20
    23-823939 BUSHING
    BUSHING
  • 21
    12-822145 WASHER
    WASHER
  • 22
    13-826792 WAVE WASHER
    WAVE WASHER
  • 23
    12-822146 WASHER
    WASHER
  • 24
    822841F1 BRACKET, Steering Arm
    BRACKET, Steering Arm
  • 25
    10-4000384 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 26
    826648 PLATE
    PLATE
  • 27
    889734 HOUSING, Switch
    (Electric Handle)
    HOUSING, Switch
    (Electric Handle)
  • 28
    824918 CLIP
    (Electric Handle)
    CLIP
    (Electric Handle)
  • 29
    87-823609A8 SWITCH ASSEMBLY
    (Electric Handle)
    SWITCH ASSEMBLY
    (Electric Handle)
  • 30
    37-855262 DECAL, Start
    (Electric Handle)
    DECAL, Start
    (Electric Handle)
