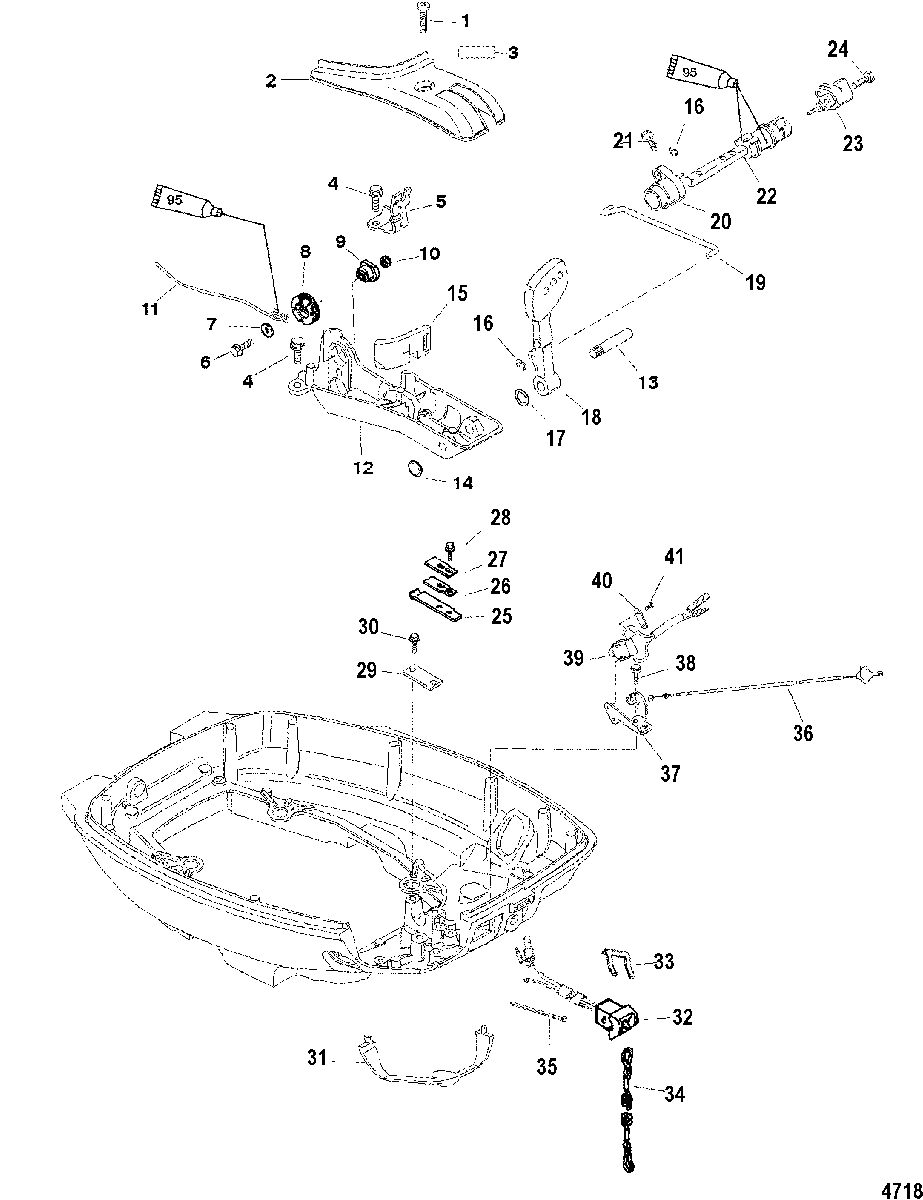

Throttle/Shift Linkage(Handle Models) для Mariner - 13.5 (4-STROKE) (International) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    10-8248291 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 2
    856905 COVER
    COVER
  • 3
    NSS NOT SOLD SEPARATE, Decal (F,N,R)
    NOT SOLD SEPARATE, Decal (F,N,R)
  • 4
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 5
    856909 BRACKET
    BRACKET
  • 6
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 7
    12-4002316 WASHER
    WASHER
  • 8
    825787A2 PULLEY ASSEMBLY
    PULLEY ASSEMBLY
  • 9
    23-825788 BUSHING
    BUSHING
  • 10
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 11
    882818 LINK, Throttle
    LINK, Throttle
  • 12
    856904T01 SHIFT PLATFORM KIT
    SHIFT PLATFORM KIT
  • 13
    8569111 SHAFT
    SHAFT
  • 14
    19-48323 PLUG
    PLUG
  • 15
    856910 SEAL
    SEAL
  • 16
    53-857213 RING, Retaining
    RING, Retaining
  • 17
    13-69150 WAVE WASHER
    WAVE WASHER
  • 18
    856906 SHIFT HANDLE
    SHIFT HANDLE
  • 19
    856908 SHIFT LINK
    SHIFT LINK
  • 20
    856907 LEVER, Shift
    LEVER, Shift
  • 21
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 22
    852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
    (Non-Bigfoot)
    SHIFT SHAFT ASSEMBLY, Horizontal
    (Non-Bigfoot)
  • 22
    852494A6 SHIFT SHAFT ASSEMBLY, Horizontal
    (Bigfoot)
    SHIFT SHAFT ASSEMBLY, Horizontal
    (Bigfoot)
  • 23
    855609 LEVER, Interlock
    (Bigfoot)
    LEVER, Interlock
    (Bigfoot)
  • 23
    826063 LEVER, Interlock
    (Non-Bigfoot)
    LEVER, Interlock
    (Non-Bigfoot)
  • 24
    10-40011111 SCREW, (M5 x 35) Stainless Steel
    SCREW, (M5 x 35) Stainless Steel
  • 25
    24-824992 SPRING, Detent
    SPRING, Detent
  • 26
    24-824993 SPRING, Backing
    SPRING, Backing
  • 27
    824994 SPRING, Plate
    SPRING, Plate
  • 28
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 29
    8280471 STRAP
    STRAP
  • 30
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 31
    8354191 SEAL
    SEAL
  • 32
    87-11083A30 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 33
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 34
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 35
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 36
    852472 WIRE
    WIRE
  • 37
    855888F BRACKET
    BRACKET
  • 38
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 39
    87-8M0052929 SWITCH ASSEMBLY
    (Electric)
    SWITCH ASSEMBLY
    (Electric)
  • 40
    824923 PLATE
    (Electric)
    PLATE
    (Electric)
  • 41
    10-82470620 SCREW, (M3.5 x 20)
    (Electric)
    SCREW, (M3.5 x 20)
    (Electric)
