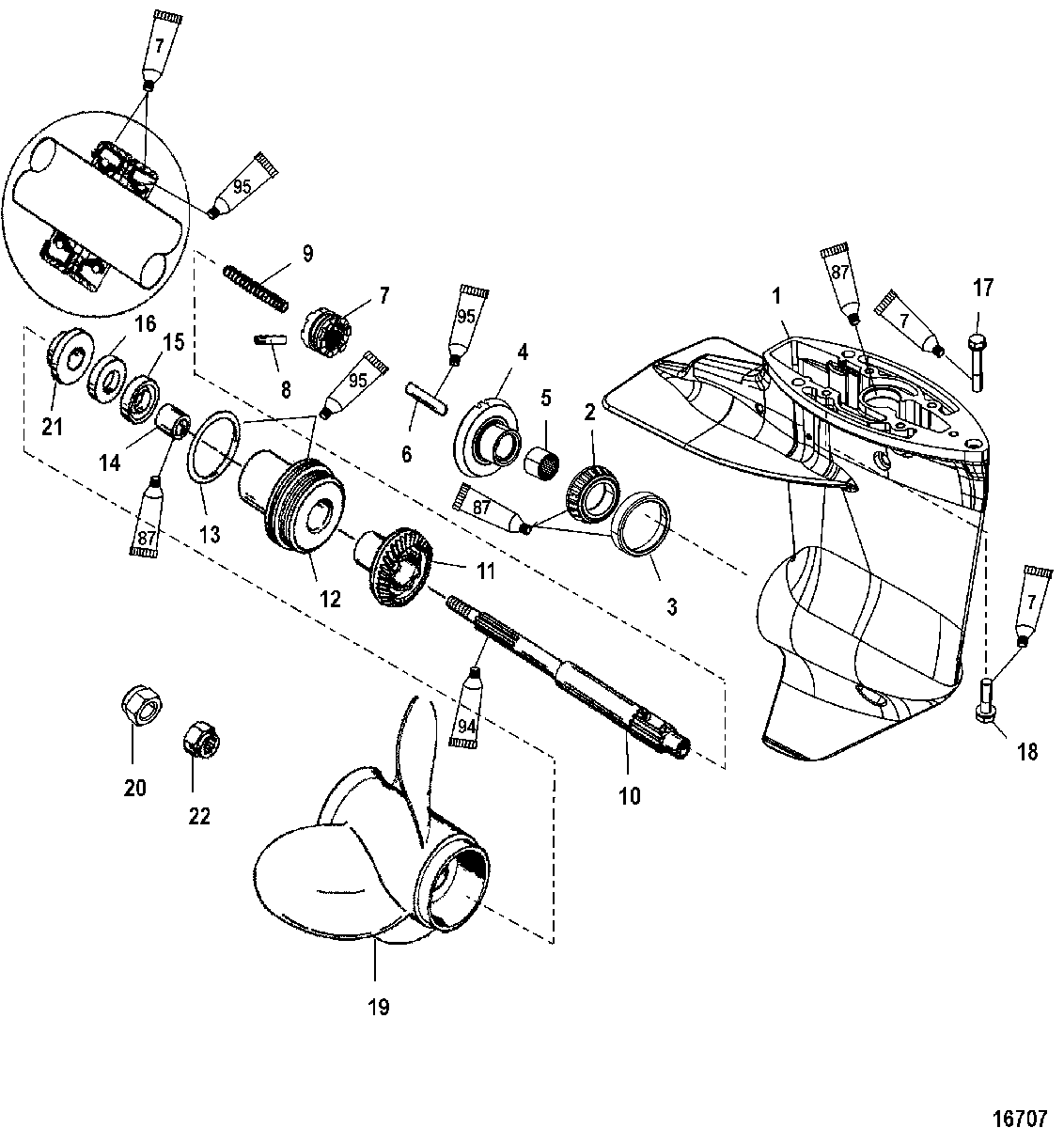

Gear Housing, Propeller Shaft- 2.00:1 Gear Ratio-Non-Bigfoot для Mariner - 13.5 (4-STROKE) (International) 0P401000 & Up

  • №
    Артикул
    Название
  • 0
    1666-8833T33 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Short)
    GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Short)
  • 0
    1666-8833T35 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Long)
    GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Long)
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
    GEAR HOUSING ASSEMBLY, Basic-Black
  • 2
    31-821321A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 3
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 4
    43-821924A1 GEAR ASSEMBLY, Forward (13-26)
    GEAR ASSEMBLY, Forward (13-26)
  • 5
    23-41367 BUSHING
    BUSHING
  • 6
    813139 FOLLOWER, Cam
    FOLLOWER, Cam
  • 7
    52-821930A1 CLUTCH ASSEMBLY
    CLUTCH ASSEMBLY
  • 8
    17-823951 PIN, Cross
    PIN, Cross
  • 9
    24-42204 SPRING
    SPRING
  • 10
    44-821929 PROPELLER SHAFT
    PROPELLER SHAFT
  • 11
    43-821926T1 GEAR, Reverse - 13/26
    GEAR, Reverse - 13/26
  • 12
    42144T3 CARRIER, Bearing
    CARRIER, Bearing
  • 13
    25-33145 O-RING, (1.984 x .139)
    O-RING, (1.984 x .139)
  • 14
    23-821927 BUSHING
    BUSHING
  • 15
    26-99325 SEAL
    SEAL
  • 16
    26-821928 SEAL, Oil
    SEAL, Oil
  • 17
    10-82407110 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 18
    10-8240717 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 19
    48-828156A12 PROPELLER, (9.00 x 9.00)
    PROPELLER, (9.00 x 9.00)
  • 20
    11-40140 NUT, (M10)
    NUT, (M10)
  • 21
    8219321 THRUST HUB
    THRUST HUB
  • 22
    23-420911 SPACER
    SPACER
  • -
    26-41365A3 SEAL KIT
    SEAL KIT
