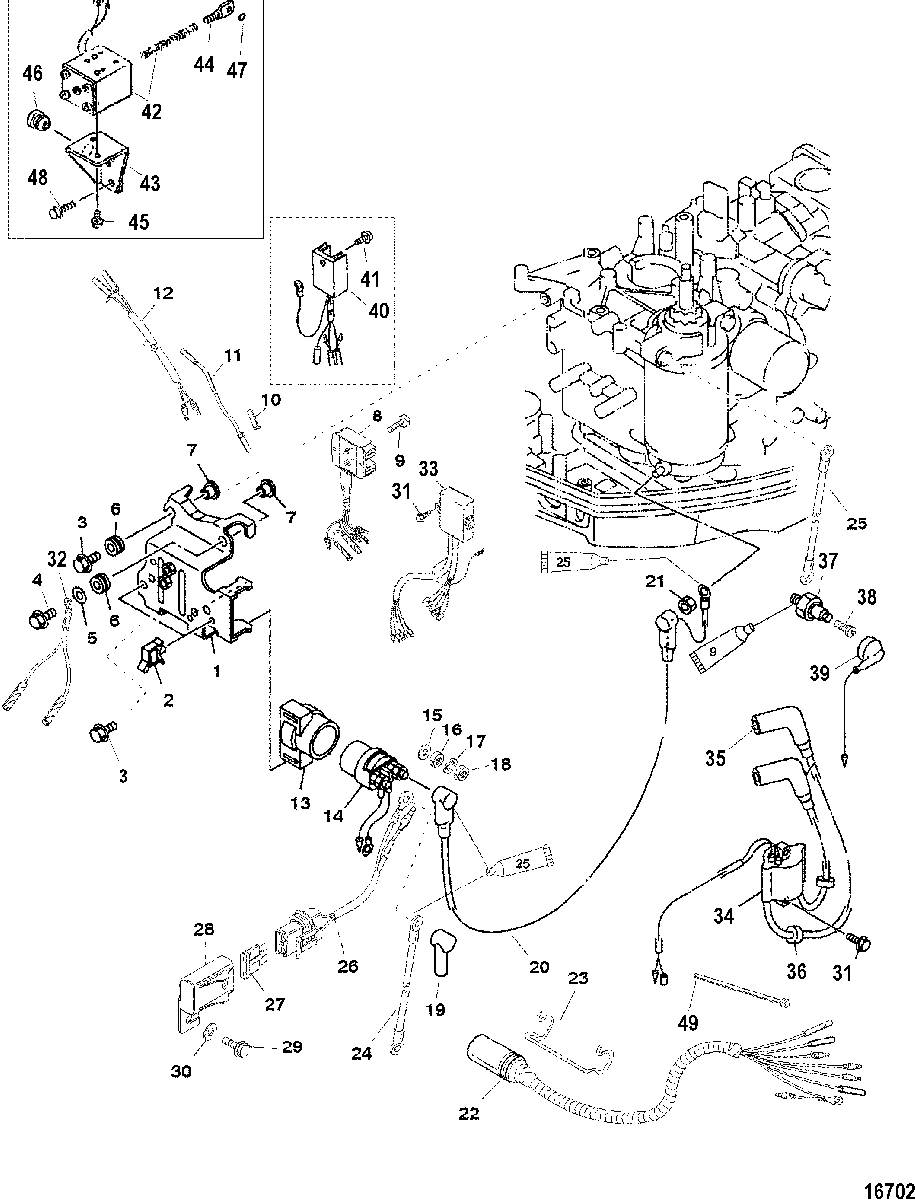

Electrical Components для Mariner - 13.5 (4-STROKE) (International) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    835403T1 BRACKET
    (Electric)
    BRACKET
    (Electric)
  • 1
    835403T BRACKET
    (Manual)
    BRACKET
    (Manual)
  • 2
    54-855686 CLAMP
    CLAMP
  • 3
    10-855810 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 4
    10-8248326 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 5
    12-855811 WASHER
    WASHER
  • 6
    25-97687M GROMMET
    GROMMET
  • 7
    23-852473 COLLAR
    COLLAR
  • 8
    854650T2 RECTIFIER/REGULATOR
    (Electric)
    RECTIFIER/REGULATOR
    (Electric)
  • 9
    10-811188T BOLT, (M6 x 16)
    (Electric)
    BOLT, (M6 x 16)
    (Electric)
  • 10
    13540 CAP, Female
    (Electric)
    CAP, Female
    (Electric)
  • 10
    13541 PLUG, Male
    (Electric)
    PLUG, Male
    (Electric)
  • 11
    84-11149A43 CABLE ASSEMBLY, Brown/White
    (Electric)
    CABLE ASSEMBLY, Brown/White
    (Electric)
  • 12
    84-824372A1 CABLE ASSEMBLY
    (Electric)
    CABLE ASSEMBLY
    (Electric)
  • 13
    8M0010250 BRACKET
    (Electric)
    BRACKET
    (Electric)
  • 14
    89-8M0098898 RELAY
    (Electric)
    RELAY
    (Electric)
  • 15
    12-827205 WASHER
    (Electric)
    WASHER
    (Electric)
  • 16
    11-827204 NUT, (M6)
    (Electric)
    NUT, (M6)
    (Electric)
  • 17
    13-400256 LOCKWASHER, (M6)
    (Electric)
    LOCKWASHER, (M6)
    (Electric)
  • 18
    11-400212 NUT, (M6) Stainless Steel
    (Electric)
    NUT, (M6) Stainless Steel
    (Electric)
  • 19
    85-804284001 BOOT
    (Electric)
    BOOT
    (Electric)
  • 20
    855742 LEAD WIRE
    (Electric)
    LEAD WIRE
    (Electric)
  • 21
    11-94330 NUT, (.250-20) Brass
    (Electric)
    NUT, (.250-20) Brass
    (Electric)
  • 22
    84-859312T1 HARNESS ASSEMBLY, Engine Wiring
    (Electric)
    HARNESS ASSEMBLY, Engine Wiring
    (Electric)
  • 23
    92753 RETAINER
    (Electric)
    RETAINER
    (Electric)
  • 24
    84-88439A29 CABLE ASSEMBLY, Battery - Positive
    (Electric)
    CABLE ASSEMBLY, Battery - Positive
    (Electric)
  • 25
    84-88439A30 CABLE ASSEMBLY, Battery - Negative
    (Electric)
    CABLE ASSEMBLY, Battery - Negative
    (Electric)
  • 26
    84-859451A1 HARNESS ASSEMBLY, Fuse
    HARNESS ASSEMBLY, Fuse
  • 27
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 28
    828054 COVER, Fuse
    COVER, Fuse
  • 29
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 30
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 31
    10-84058M BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 32
    84-824912A6 CABLE ASSEMBLY
    (Handle)
    CABLE ASSEMBLY
    (Handle)
  • 33
    835401T1 CDI UNIT
    CDI UNIT
  • 34
    855685T COIL ASSEMBLY, Ignition - Includes Leads and Boots
    COIL ASSEMBLY, Ignition - Includes Leads and Boots
  • 35
    84-825102A1 HIGH TENSION LEAD
    HIGH TENSION LEAD
  • 36
    25-82069M GROMMET
    GROMMET
  • 37
    853524 SWITCH, Oil Pressure
    SWITCH, Oil Pressure
  • 38
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 39
    853537 LEAD WIRE
    LEAD WIRE
  • 40
    835406 RECTIFIER/REGULATOR
    (Manual)
    RECTIFIER/REGULATOR
    (Manual)
  • 41
    10-811188T BOLT, (M6 x 16)
    (Manual)
    BOLT, (M6 x 16)
    (Manual)
  • 42
    89-853598T SOLENOID ASSEMBLY
    (Electric Non/Handle)
    SOLENOID ASSEMBLY
    (Electric Non/Handle)
  • 43
    853599T BRACKET
    (Electric Non/Handle)
    BRACKET
    (Electric Non/Handle)
  • 44
    853601 HOOK WIRE
    (Electric Non/Handle)
    HOOK WIRE
    (Electric Non/Handle)
  • 45
    10-855739 SCREW, (M5 x 8)
    (Electric Non/Handle)
    SCREW, (M5 x 8)
    (Electric Non/Handle)
  • 46
    25-91782M GROMMET
    (Electric Non/Handle)
    GROMMET
    (Electric Non/Handle)
  • 47
    25-82258M O-RING
    (Electric Non/Handle)
    O-RING
    (Electric Non/Handle)
  • 48
    10-811188T BOLT, (M6 x 16)
    (Electric Non/Handle)
    BOLT, (M6 x 16)
    (Electric Non/Handle)
  • 49
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    802733A98 POWERHEAD ASSEMBLY
    (Electric)
    POWERHEAD ASSEMBLY
    (Electric)
  • -
    879783A01 POWERHEAD ASSEMBLY
    (Manual)
    POWERHEAD ASSEMBLY
    (Manual)
