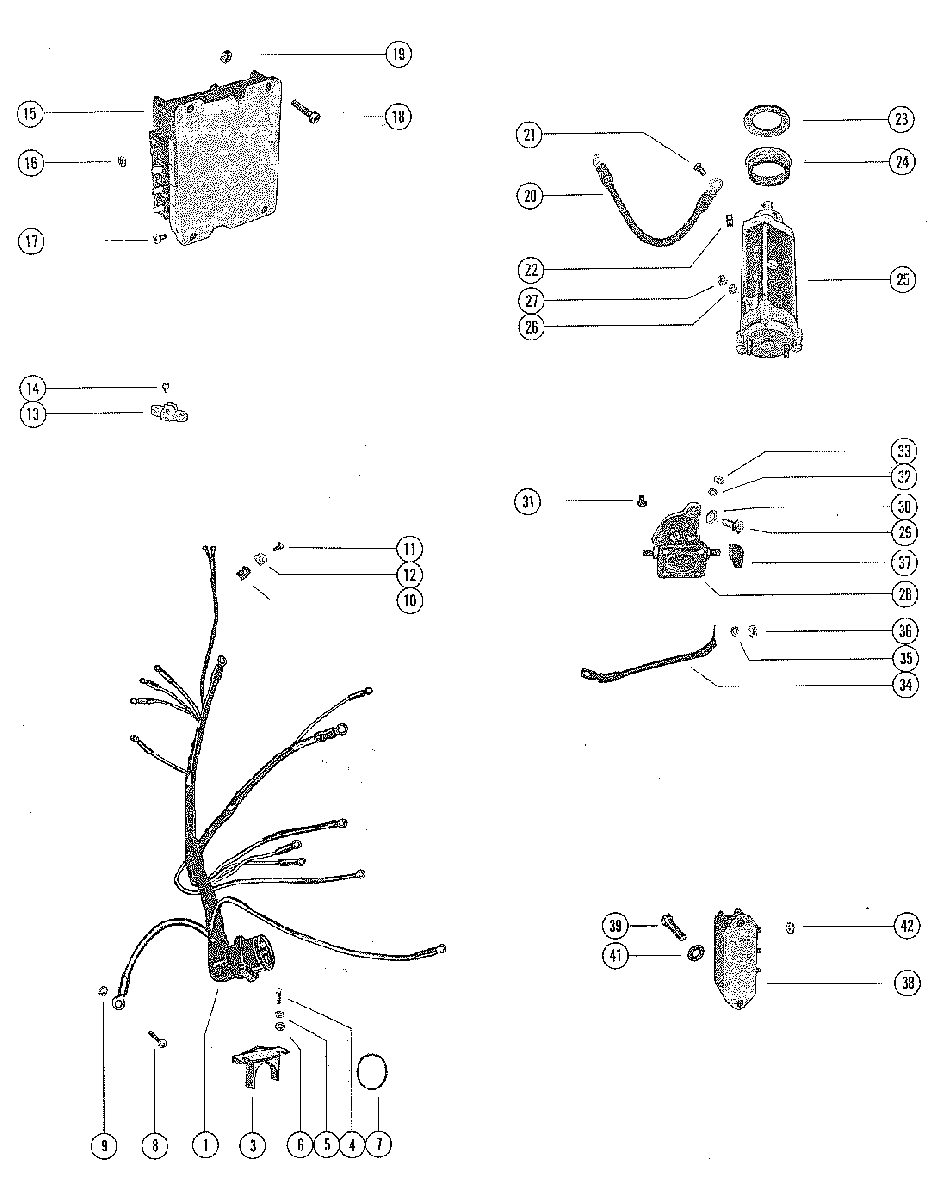

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mariner - 115 (6 CYL.) 8057045 THRU 8062459
-
№АртикулНазвание
-
184-69236A1 WIRING HARNESS, INTERNALWIRING HARNESS, INTERNAL
-
354-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
410-690201 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
513-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
612-30164 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
724-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
810-98256 SCREW, GROUND WIRE TO BOTTOM COWLSCREW, GROUND WIRE TO BOTTOM COWL
-
913-26992 LOCKWASHER, GROUND WIRE SCREWLOCKWASHER, GROUND WIRE SCREW
-
1054-648552 CLIP, STATOR LEADS TO BLOCK (1/8")CLIP, STATOR LEADS TO BLOCK (1/8")
-
1110-62568 SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")
-
128M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW"D" WASHER, WIRING HARNESS CLIP SCREW
-
1345559 TERMINAL BLOCK, STATOR LEADSTERMINAL BLOCK, STATOR LEADS
-
1410-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
-
15332-2986A21 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
1611-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1710-29794 SCREW, SWITCH BOX (3/8")SCREW, SWITCH BOX (3/8")
-
1810-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")
-
1911-20184 NUT, SWITCH BOX SCREWNUT, SWITCH BOX SCREW
-
2084-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKETCABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
-
2110-69035 SCREW, WIRE CABLE TO STARTER MOTORSCREW, WIRE CABLE TO STARTER MOTOR
-
228M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
2323-56774 SPACER, COLLAR TO TOP MOUNTING CAPSPACER, COLLAR TO TOP MOUNTING CAP
-
2423-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNTCOLLAR, RUBBER - STARTER MOTOR MOUNT
-
2550-898265010 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2613-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
2711-64015 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
2889-853654A1 SOLENOID, STARTERSOLENOID, STARTER
-
2910-38601 SCREW, SOLENOID TO BOTTOM COWL (5/8")SCREW, SOLENOID TO BOTTOM COWL (5/8")
-
3013-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREWLOCKWASHER, STARTER SOLENOID FASTENING SCREW
-
31269011 BUMPER, RUBBER - STARTER SOLENOIDBUMPER, RUBBER - STARTER SOLENOID
-
3213-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
3311-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3484-93388A8 CABLE, WIRE - STARTER MOTOR TO SOLENOIDCABLE, WIRE - STARTER MOTOR TO SOLENOID
-
3513-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
3611-68292 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
3746265 BOOT, SOLENOID TERMINALBOOT, SOLENOID TERMINAL
-
388M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
3910-37656 SCREW, RECTIFIER TO FRONT BRACKET (5/8")SCREW, RECTIFIER TO FRONT BRACKET (5/8")
-
4211-45076 NUT, STATOR LEADS TO RECTIFIERNUT, STATOR LEADS TO RECTIFIER
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE
- DISTRIBUTOR HOUSING AND ROTOR
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- FUEL TANK ASSEMBLY (6 GALLON)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- HYDRAULIC PUMP AND CONTROL VALVE
- HYDRAULIC PUMP ASSEMBLY
- IGNITION COIL
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM CYLINDER REPAIR KITS
- REMOTE CONTROL ASSEMBLY (ELECTRIC)
- REMOTE CONTROL ASSEMBLY (ELECTRIC) (BOSCH)
- STARTER MOTOR ASSEMBLY, COMPLETE
- • STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES
- SWIVEL BRACKET ASSEMBLY
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
