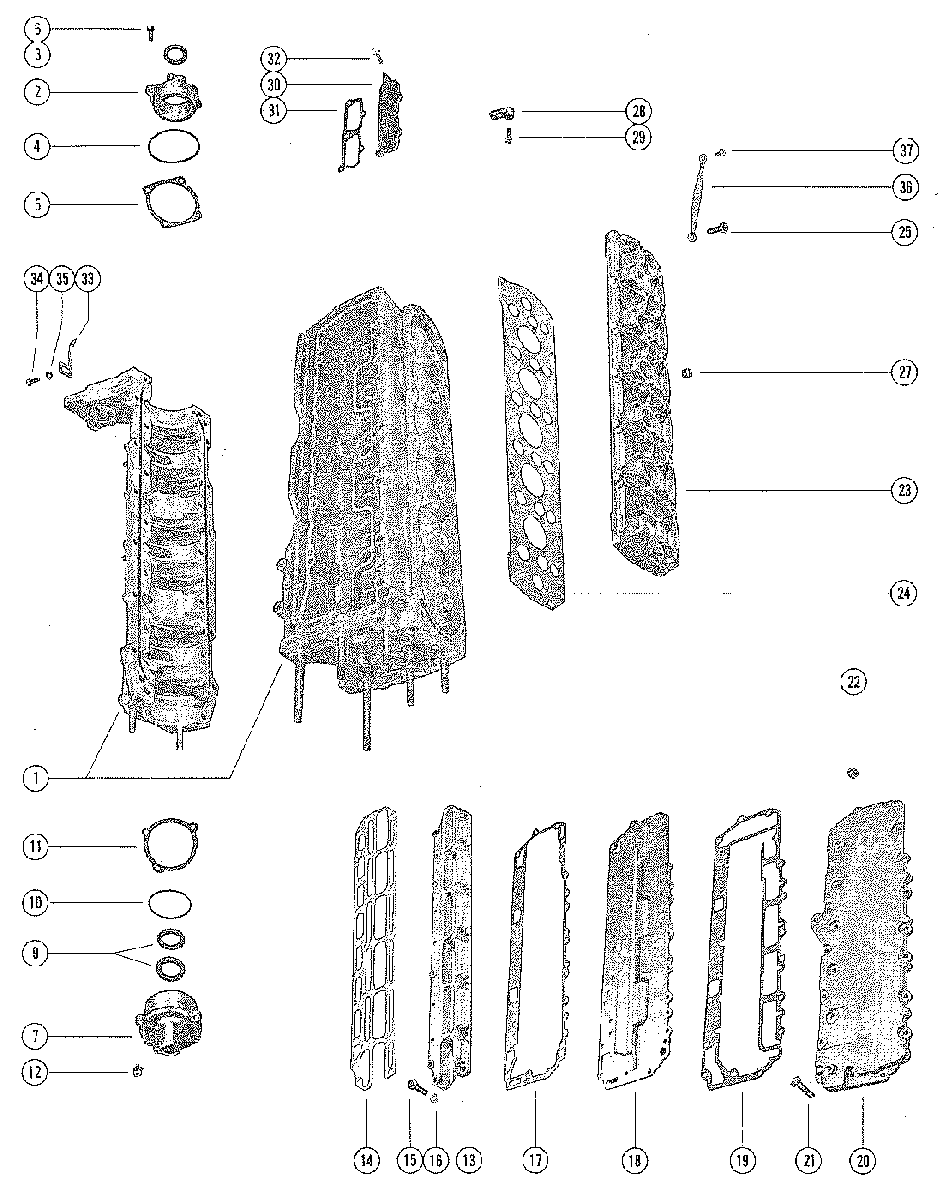

END CAP, MANIFOLD AND EXHAUST COVERS для Mariner - 115 (6 CYL.) 8057045 THRU 8062459

  • №
    Артикул
    Название
  • 1
    852-7401A2 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5076583 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5076583 AND BELOW
  • 1
    852-7401A2 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5076584 AND UP
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5076584 AND UP
  • 2
    1134-3197A1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 4
    25-47254 "O" RING
    "O" RING
  • 5
    15-47248A1 SHIM, END CAP TO CRANKCASE (.006-8-10)
    SHIM, END CAP TO CRANKCASE (.006-8-10)
  • 6
    10-30225 SCREW, END CAP MOUNTING
    SCREW, END CAP MOUNTING
  • 7
    1148-5410T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 9
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 10
    25-32546 "O" RING, END CAP
    "O" RING, END CAP
  • 11
    15-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, END CAP TO CRANKCASE (.002-3-5-10)
  • 12
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 13
    71808 COVER, WATER JACKET - CYLINDER BLOCK
    COVER, WATER JACKET - CYLINDER BLOCK
  • 14
    27-721421 GASKET, WATER JACKET COVER
    GASKET, WATER JACKET COVER
  • 15
    10-53167T SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
    SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
  • 16
    12-8M0042642 WASHER, WATER JACKET COVER FASTENING SCREW
    WASHER, WATER JACKET COVER FASTENING SCREW
  • 17
    27-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 18
    757781 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 19
    27-854972 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 20
    99896A1 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 21
    10-53576 SCREW, MANIFOLD COVER MOUNTING
    SCREW, MANIFOLD COVER MOUNTING
  • 22
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
    PLUG, PIPE - EXHAUST MANIFOLD COVER
  • 23
    1023-8368A1 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 24
    27-981853 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 25
    10-76630 SCREW, COVER MOUNTING (1")
    SCREW, COVER MOUNTING (1")
  • 27
    22-68307 PLUG, PIPE - CYLINDER BLOCK COVER
    PLUG, PIPE - CYLINDER BLOCK COVER
  • 28
    37440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
  • 29
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 30
    62301 COVER, TRANSFER PORT (TOP/MIDDLE)
    COVER, TRANSFER PORT (TOP/MIDDLE)
  • 30
    66094 COVER, TRANSFER PORT (BOTTOM)
    COVER, TRANSFER PORT (BOTTOM)
  • 31
    27-64941 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 32
    10-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")
    SCREW, TRANSFER PORT COVER MOUNTING (1")
  • 32
    10-28636 SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SCREW, TRANSFER PORT COVER MOUNTING (3/4")
  • 33
    43352 POINTER, TIMING
    POINTER, TIMING
  • 34
    10-28636 SCREW, TIMING POINTER ATTACHING (3/4")
    SCREW, TIMING POINTER ATTACHING (3/4")
  • 35
    12-35462 WASHER, TIMING POINTER SCREW
    WASHER, TIMING POINTER SCREW
  • 36
    46933A3 GROUND STRAP ASSEMBLY, EXHAUST COVER
    GROUND STRAP ASSEMBLY, EXHAUST COVER
  • 37
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
