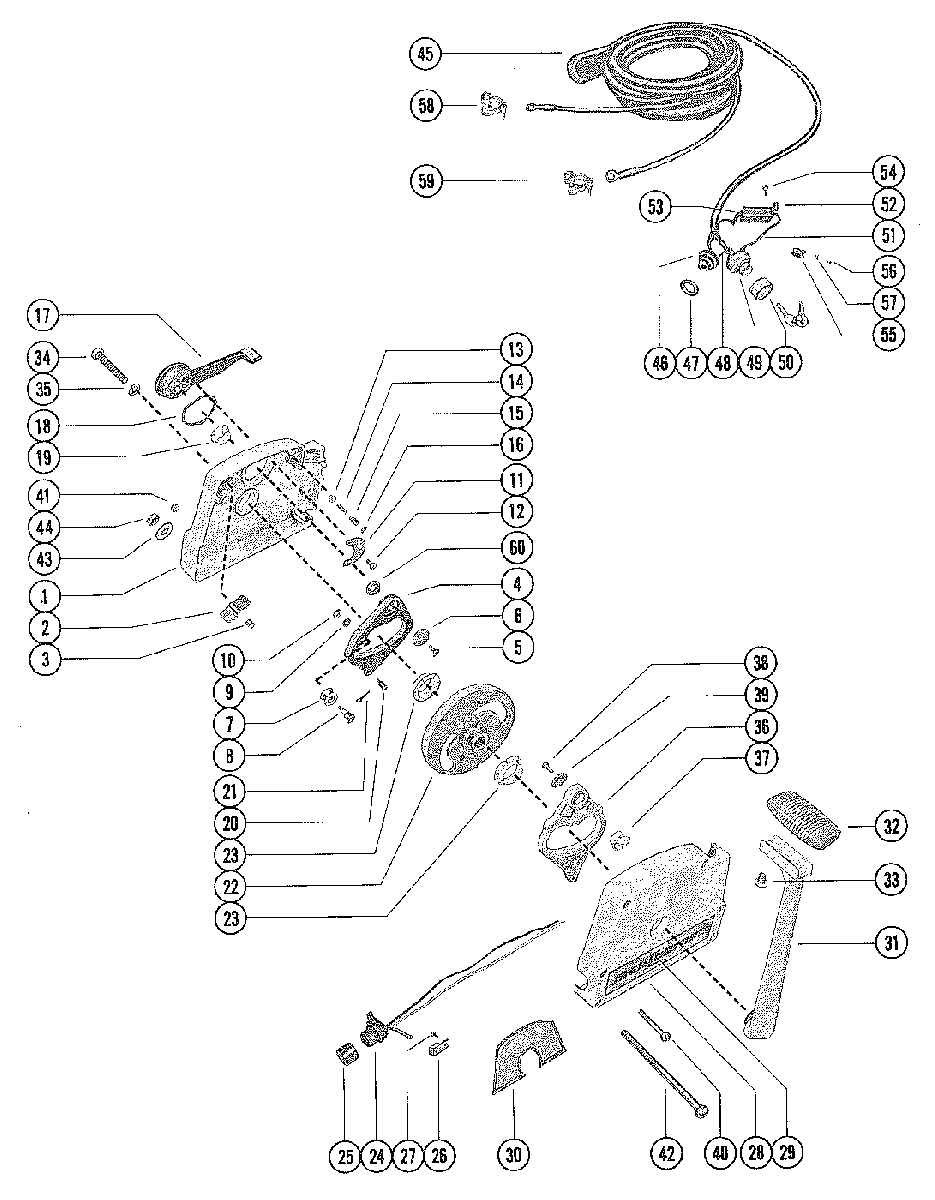

REMOTE CONTROL ASSEMBLY (ELECTRIC) для Mariner - 115 (6 CYL.) 8057045 THRU 8062459

  • №
    Артикул
    Название
  • 76714A ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE
    ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE
  • 1
    458802 HOUSING, REMOTE CONTROL (STARBOARD)
    HOUSING, REMOTE CONTROL (STARBOARD)
  • 2
    24-34683 SPRING, DETENT - CONTROL HOUSING
    SPRING, DETENT - CONTROL HOUSING
  • 3
    34992 ROLLER, DETENT SPRING
    ROLLER, DETENT SPRING
  • 4
    34671 LEVER, THROTTLE _ CONTROL HOUSING
    LEVER, THROTTLE _ CONTROL HOUSING
  • 5
    10-85072 SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER
    SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER
  • 6
    12-34675 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 7
    34672 CAM ROLELR, THROTTLE LEVER
    CAM ROLELR, THROTTLE LEVER
  • 8
    17-34673 PIN, CAM ROLLER TO THROTTLE LEVER
    PIN, CAM ROLLER TO THROTTLE LEVER
  • 9
    12-34680 WASHER, CAM ROLLER PIN
    WASHER, CAM ROLLER PIN
  • 10
    11-24656 NUT, CAM ROLLER TO THROTTLE LEVER PIN
    NUT, CAM ROLLER TO THROTTLE LEVER PIN
  • 11
    34679 PLATE, THRUST - CONTROL HOUSING
    PLATE, THRUST - CONTROL HOUSING
  • 12
    10-47220 SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER
    SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER
  • 13
    17-20009 PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER
    PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER
  • 14
    24-35210 SPRING, DETENT PIN
    SPRING, DETENT PIN
  • 15
    24-35227 SPRING, DETENT PIN TENSION
    SPRING, DETENT PIN TENSION
  • 16
    19-20011 WELCH PLUG, DETENT PIN AND SPRING RETAINING
    WELCH PLUG, DETENT PIN AND SPRING RETAINING
  • 17
    346702 LEVER, NEUTRAL WARM-UP
    LEVER, NEUTRAL WARM-UP
  • 18
    13-34678 WASHER, WAVE - NEUTRAL WARM-UP LEVER
    WASHER, WAVE - NEUTRAL WARM-UP LEVER
  • 19
    23-33589 BUSHING, NYLON - NEUTRAL WARM-UP LEVER (5/8" I.D.)
    BUSHING, NYLON - NEUTRAL WARM-UP LEVER (5/8" I.D.)
  • 20
    17-34692 PIN, SHIFT AND THROTTLE LEVERS
    PIN, SHIFT AND THROTTLE LEVERS
  • 21
    18-29623 COTTER PIN, SHIFT AND THROTTLE LEVER PINS
    COTTER PIN, SHIFT AND THROTTLE LEVER PINS
  • 22
    59369 FACE CAM
    FACE CAM
  • 23
    23-34677 BUSHING, NYLON - FACE CAM (1" I.D.)
    BUSHING, NYLON - FACE CAM (1" I.D.)
  • 24
    84-93466A1 CONNECTOR, TACHOMETER LEAD TO REMOTE CONTROL
    CONNECTOR, TACHOMETER LEAD TO REMOTE CONTROL
  • 25
    45940 CAP, TACHOMETER LEAD CONNECTOR
    CAP, TACHOMETER LEAD CONNECTOR
  • 26
    86-63577 TERMINAL BLOCK, CONNECTOR LEADS
    TERMINAL BLOCK, CONNECTOR LEADS
  • 27
    10-37260 SCREW, THERMINAL BLOCK TO CONTROL HOUSING (7/16")
    SCREW, THERMINAL BLOCK TO CONTROL HOUSING (7/16")
  • 28
    459392 HOUSING, REMOTE CONTROL (PORT)
    HOUSING, REMOTE CONTROL (PORT)
  • 29
    37-76703 DECAL, CONTROL HOUSING (MARINER) - NOT AS SHOWN
    DECAL, CONTROL HOUSING (MARINER) - NOT AS SHOWN
  • 30
    37-64043 DECAL, CONTROL HOUSING (MERCONTROL)
    DECAL, CONTROL HOUSING (MERCONTROL)
  • 31
    346892 LEVER, CONTROL
    LEVER, CONTROL
  • 32
    36005 GRIP, CONTROL LEVER
    GRIP, CONTROL LEVER
  • 33
    10-37342 SCREW, GRIP TO CONTROL LEVER (7/16")
    SCREW, GRIP TO CONTROL LEVER (7/16")
  • 34
    10-68909 SCREW, CONTROL LEVER TO FACE CAM (1 1/2")
    SCREW, CONTROL LEVER TO FACE CAM (1 1/2")
  • 35
    13-26992 LOCKWASHER, CONTROL LEVER SCREW
    LOCKWASHER, CONTROL LEVER SCREW
  • 36
    34682 LEVER, SHIFT - CONTROL HOUSING
    LEVER, SHIFT - CONTROL HOUSING
  • 37
    23-33589 BUSHING, NYLO - SHIFT LEVER (5/8" I.D.)
    BUSHING, NYLO - SHIFT LEVER (5/8" I.D.)
  • 38
    10-85072 SCREW, SHIFT LEVER TO CONTROL HOUSING
    SCREW, SHIFT LEVER TO CONTROL HOUSING
  • 39
    12-34675 WASHER, SHIFT LEVER SCREW
    WASHER, SHIFT LEVER SCREW
  • 40
    10-37941 SCREW, REMOTE CONTROL HOUSING CLAMPING
    SCREW, REMOTE CONTROL HOUSING CLAMPING
  • 41
    11-30506 NUT, REMOTE CONTROL HOUSING CLAMPING SCREW
    NUT, REMOTE CONTROL HOUSING CLAMPING SCREW
  • 42
    10-34900 SCREW, REMOTE CONTROL TO BOAT (4 1/4")
    SCREW, REMOTE CONTROL TO BOAT (4 1/4")
  • 43
    12-69057 WASHER, REMOTE CONTROL SCREW
    WASHER, REMOTE CONTROL SCREW
  • 44
    11-24652 NUT, REMOTE CONTROL TO BOAT TRANSOM
    NUT, REMOTE CONTROL TO BOAT TRANSOM
  • 45
    45876 WIRING HARNESS, EXTERNAL (AVAILABLE IN LENGHTS OF 10; 15'
    WIRING HARNESS, EXTERNAL (AVAILABLE IN LENGHTS OF 10; 15'
  • 46
    29759 SWITCH, CHOKE
    SWITCH, CHOKE
  • 47
    30053 COLLAR, CHOKE SWITCH TO CONTROL HOUSING
    COLLAR, CHOKE SWITCH TO CONTROL HOUSING
  • 48
    39180 JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH
    WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
    JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH
    WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
  • 49
    54211T SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431
    SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431
  • 50
    68863 BEZEL, IGNITION SWITCH TO CONTROL HOUSING
    BEZEL, IGNITION SWITCH TO CONTROL HOUSING
  • 51
    30795 JUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCH
    JUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCH
  • 52
    34621T SWITCH, SAFETY
    SWITCH, SAFETY
  • 53
    23-379612 SLEEVE, SAFETY SWITCH LEADS
    SLEEVE, SAFETY SWITCH LEADS
  • 54
    10-30902 SCREW, SAFETY SWITCH TO CONTROL HOUSING
    SCREW, SAFETY SWITCH TO CONTROL HOUSING
  • 55
    54-22627 CLIP, INNER - WIRING HARNESS TO CONTROL HOUSING
    CLIP, INNER - WIRING HARNESS TO CONTROL HOUSING
  • 56
    10-37260 SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (7/16")
    SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (7/16")
  • 57
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 58
    27913 BATTERY TERMINAL, NEGATIVE (WITH BOLT AND NUT)
    BATTERY TERMINAL, NEGATIVE (WITH BOLT AND NUT)
  • 59
    27912 BATTERY TERMINAL, POSITIVE (WITH BOLT AND NUT)
    BATTERY TERMINAL, POSITIVE (WITH BOLT AND NUT)
  • 60
    13-60861 WASHER, WAVE - THROTTLE LEVER
    WASHER, WAVE - THROTTLE LEVER
