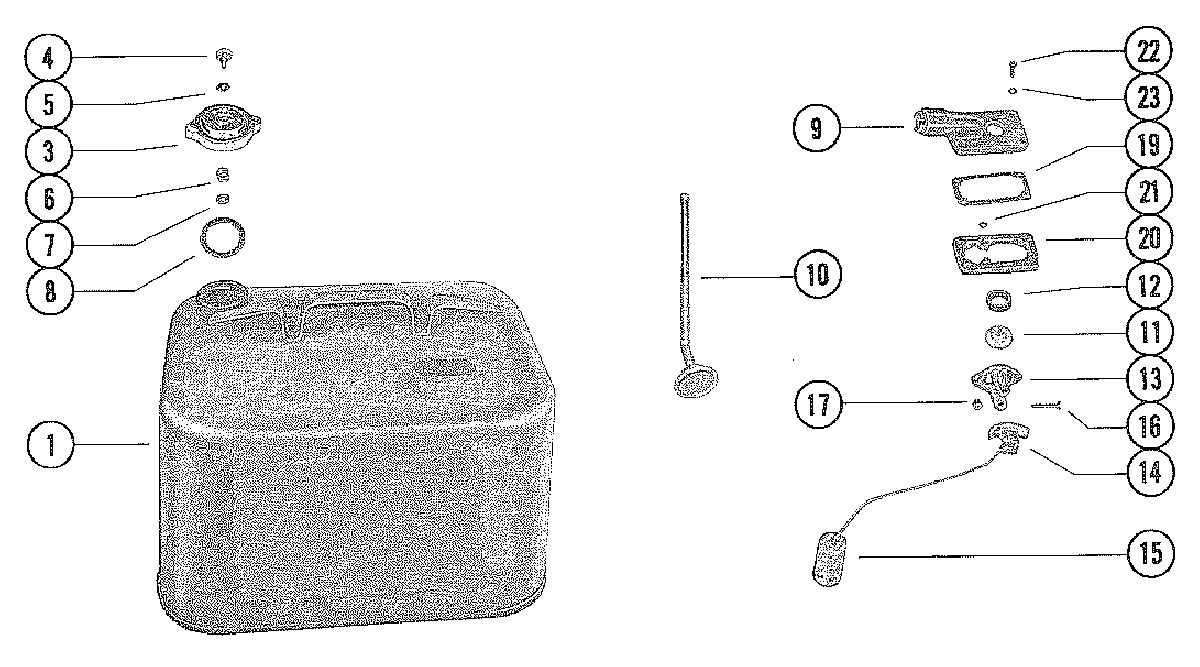

FUEL TANK ASSEMBLY (6 GALLON) для Mariner - 115 (6 CYL.) 8057045 THRU 8062459
-
№АртикулНазвание
-
1259-812410A1 FUEL TANK ASSEMBLY, COMPLETE (6 GALLON)FUEL TANK ASSEMBLY, COMPLETE (6 GALLON)
-
11259-812410A1 FUEL TANK (6 GALLON)FUEL TANK (6 GALLON)
-
137-13921 DECAL, FUEL TANKDECAL, FUEL TANK
-
336-18962M FILLER CAP ASSEMBLYFILLER CAP ASSEMBLY
-
410-25575 SCREW, VENT - FILLER CAPSCREW, VENT - FILLER CAP
-
512-49221 WASHER, VENT SCREWWASHER, VENT SCREW
-
624-22227 SPRING, TENSION - VENT SCREWSPRING, TENSION - VENT SCREW
-
711-28587 NUT, SPEED - SPRING RETAINERNUT, SPEED - SPRING RETAINER
-
827-41065 GASKET, FILLER CAP TO FUEL TANKGASKET, FILLER CAP TO FUEL TANK
-
864841A1 COVER ASSEMBLY, COMPLETE - FUEL TANKCOVER ASSEMBLY, COMPLETE - FUEL TANK
-
917792A1 COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)
-
1032-75239 TUBE ASS'Y (1/4-18 CONNECTOR & 1/2" TUBE) (#32-75239)TUBE ASS'Y (1/4-18 CONNECTOR & 1/2" TUBE) (#32-75239)
-
1198542A1 LENS ASSEMBLY, FUEL GAUGELENS ASSEMBLY, FUEL GAUGE
-
1298542A1 GASKET, FUEL GAUGE LENSGASKET, FUEL GAUGE LENS
-
1228897A2 FUEL GAUGE ASSEMBLY, COMPLETEFUEL GAUGE ASSEMBLY, COMPLETE
-
1320430 RETAINER, FUEL GAUGERETAINER, FUEL GAUGE
-
1428897A1 INDICATOR AND FLOAT ASSEMBLYINDICATOR AND FLOAT ASSEMBLY
-
1599274 FLOAT, FUEL GAUGEFLOAT, FUEL GAUGE
-
1617-20426 RIVET, INDICATOR TO RETAINERRIVET, INDICATOR TO RETAINER
-
1710-62568 SCREW, RETAINER TO FUEL TANK COVER (5/16")SCREW, RETAINER TO FUEL TANK COVER (5/16")
-
1927-28862 GASKET, COVER ASSEMBLY TO FRAMEGASKET, COVER ASSEMBLY TO FRAME
-
2028860 FRAME, RETAINING - FUEL TANK COVERFRAME, RETAINING - FUEL TANK COVER
-
2111-28903 FASTENER, RETAINING FRAME TO FUEL TANKFASTENER, RETAINING FRAME TO FUEL TANK
-
2210-20411 SCREW, FUEL TANK COVER TO FUEL TANKSCREW, FUEL TANK COVER TO FUEL TANK
-
2312-29070 WASHER, FUEL TANK COVER FASTENING SCREWWASHER, FUEL TANK COVER FASTENING SCREW
