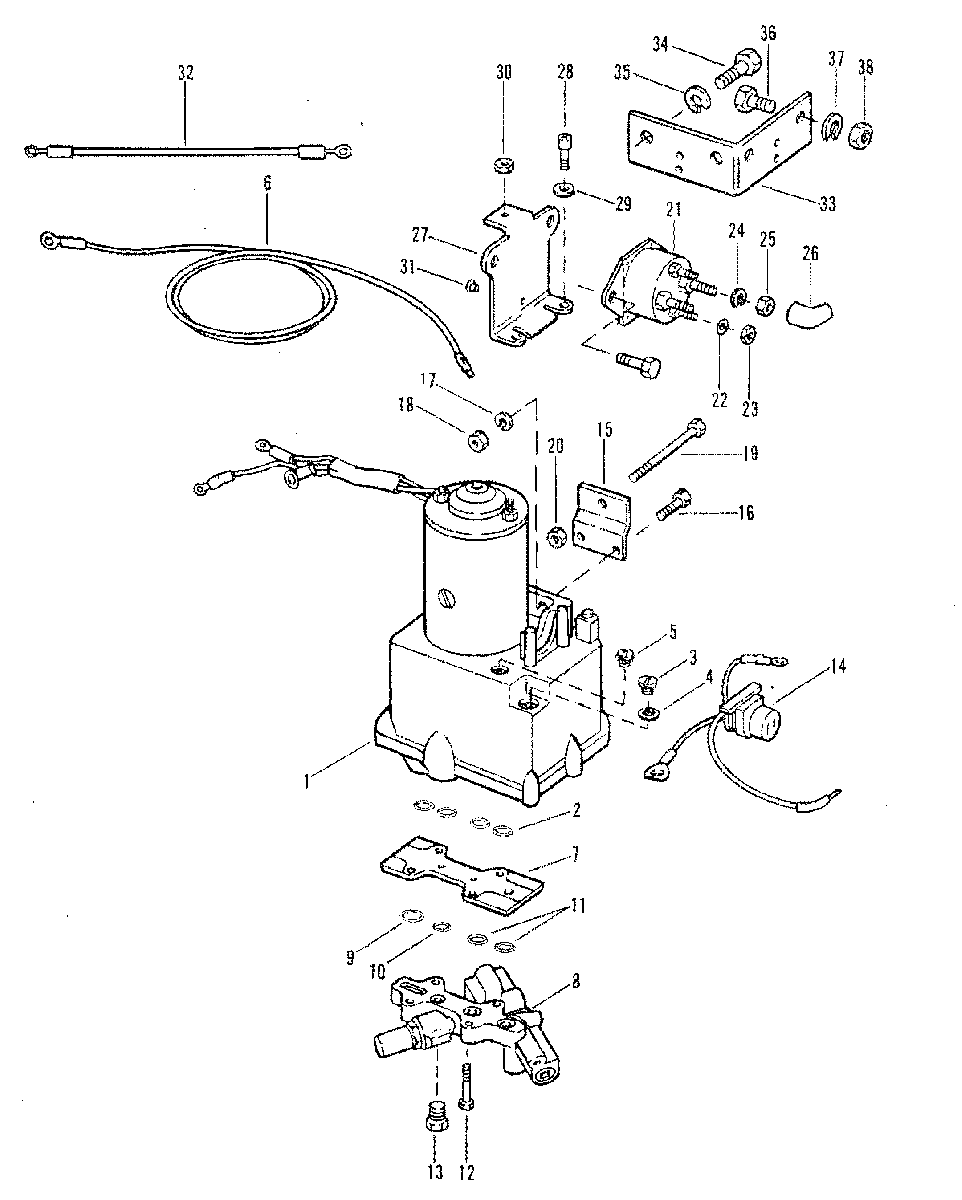

POWER TRIM COMPONENTS - WITHOUT CIRCUIT BREAKER для Mariner - 115 (6 CYL.) 5738891 THRU 6436122

№

Артикул

Название
1

92975A32 HYDRAULIC PUMP ASS'Y (METAL RESEROVIR)
SEE PAGE 40 OR 41 FOR BREAKDOWN

HYDRAULIC PUMP ASS'Y (METAL RESEROVIR)
SEE PAGE 40 OR 41 FOR BREAKDOWN

130 600 ₽
1

92975A32 HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR)
SEE PAGE 40 OR 41 FOR BREAKDOWN

HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR)
SEE PAGE 40 OR 41 FOR BREAKDOWN

130 600 ₽
2

25-48171 "O" RING, MANIFOLD PLATE

"O" RING, MANIFOLD PLATE

130 ₽
3

10-79953Q04 SCREW, FILLER - HYDRAULIC PUMP

SCREW, FILLER - HYDRAULIC PUMP

1 000 ₽
4

12-191833 WASHER, SEALING - FILLER SCREW

WASHER, SEALING - FILLER SCREW

60 ₽
5

10-62269 SCREW, VENT - HYDRAULIC PUMP

SCREW, VENT - HYDRAULIC PUMP

0 ₽
6

32979 BATTERY LEAD (POSITIVE)

BATTERY LEAD (POSITIVE)

0 ₽
6

32988 BATTERY LEAD (NEGATIVE)

BATTERY LEAD (NEGATIVE)

0 ₽
7

45336 PLATE, MANIFOLD

PLATE, MANIFOLD

0 ₽
8

45197A2 CONTROL VALVE ASSEMBLY

CONTROL VALVE ASSEMBLY

0 ₽
--

25-48171 "O" RING, MANIFOLD PLATE (SEE REF. #2)

"O" RING, MANIFOLD PLATE (SEE REF. #2)

130 ₽
9

25-45254 "O" RING, CONTROL VALVE (3/4" O.D.)

"O" RING, CONTROL VALVE (3/4" O.D.)

150 ₽
10

25-48171 "O" RINGM CONTROL VALVE (1/2" O.D.)

"O" RINGM CONTROL VALVE (1/2" O.D.)

130 ₽
11

25-45253 "O" RING, CONTROL VALVE (5/8" O.D.)

"O" RING, CONTROL VALVE (5/8" O.D.)

120 ₽
12

10-56500 SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")

SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")

210 ₽
13

22-46008 PLUG, CONTROL VALVE (1/2-20")

PLUG, CONTROL VALVE (1/2-20")

450 ₽
14

84-74023A1 CONNECTOR AND HARNESS

CONNECTOR AND HARNESS

0 ₽
15

45377T BRACKET, MOUNTING

BRACKET, MOUNTING

0 ₽
16

10-35386 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")

SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")

90 ₽
17

13-39107 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

120 ₽
18

11-21908 NUT, MOUNTING BRACKET SCREW

NUT, MOUNTING BRACKET SCREW

180 ₽
19

10-68298 BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")

BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")

0 ₽
20

11-82671112 NUT, HYDRAULIC PUMP BOLT

NUT, HYDRAULIC PUMP BOLT

230 ₽
21

89-853654A1 STARTER SOLENOID

STARTER SOLENOID

4 900 ₽
22

13-26996 LOCKWASHER, SOLENOID TERMINALJ (#10)

LOCKWASHER, SOLENOID TERMINALJ (#10)

60 ₽
23

11-68219 NUT, SOLENOID TERMINAL (#10)

NUT, SOLENOID TERMINAL (#10)

50 ₽
24

13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")

LOCKWASHER, SOLENOID TERMINAL (5/16")

140 ₽
25

11-68292 NUT, SOLENOID TERMINAL (5/16")

NUT, SOLENOID TERMINAL (5/16")

200 ₽
26

46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL

BOOT, RUBBER - STARTER SOLENOID TERMINAL

340 ₽
27

74407T BRACKET, MOUNTING - STARTER SOLENOID

BRACKET, MOUNTING - STARTER SOLENOID

0 ₽
28

10-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")

SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")

0 ₽
29

13-26992 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

70 ₽
30

11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

0 ₽
31

269011 BUMPER, RUBBER - SOLENOID BRACKET

BUMPER, RUBBER - SOLENOID BRACKET

290 ₽
32

84-79139A2 JUMPER WIRE (POSITIVE)

JUMPER WIRE (POSITIVE)

0 ₽
32

55992 JUMPER WIRE (NEGATIVE)

JUMPER WIRE (NEGATIVE)

0 ₽
33

74406 BRACKET, MOUNTING - STARTER SOLENOID

BRACKET, MOUNTING - STARTER SOLENOID

0 ₽
34

10-69028 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")

SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")

180 ₽
35

13-26992 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

70 ₽
36

10-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")

SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")

60 ₽
37

13-26992 LOCKWASHER, STARTER SOLENOID SCREW

LOCKWASHER, STARTER SOLENOID SCREW

70 ₽
38

11-21825 NUT, STARTER SOLENOID SCREW

NUT, STARTER SOLENOID SCREW

130 ₽
