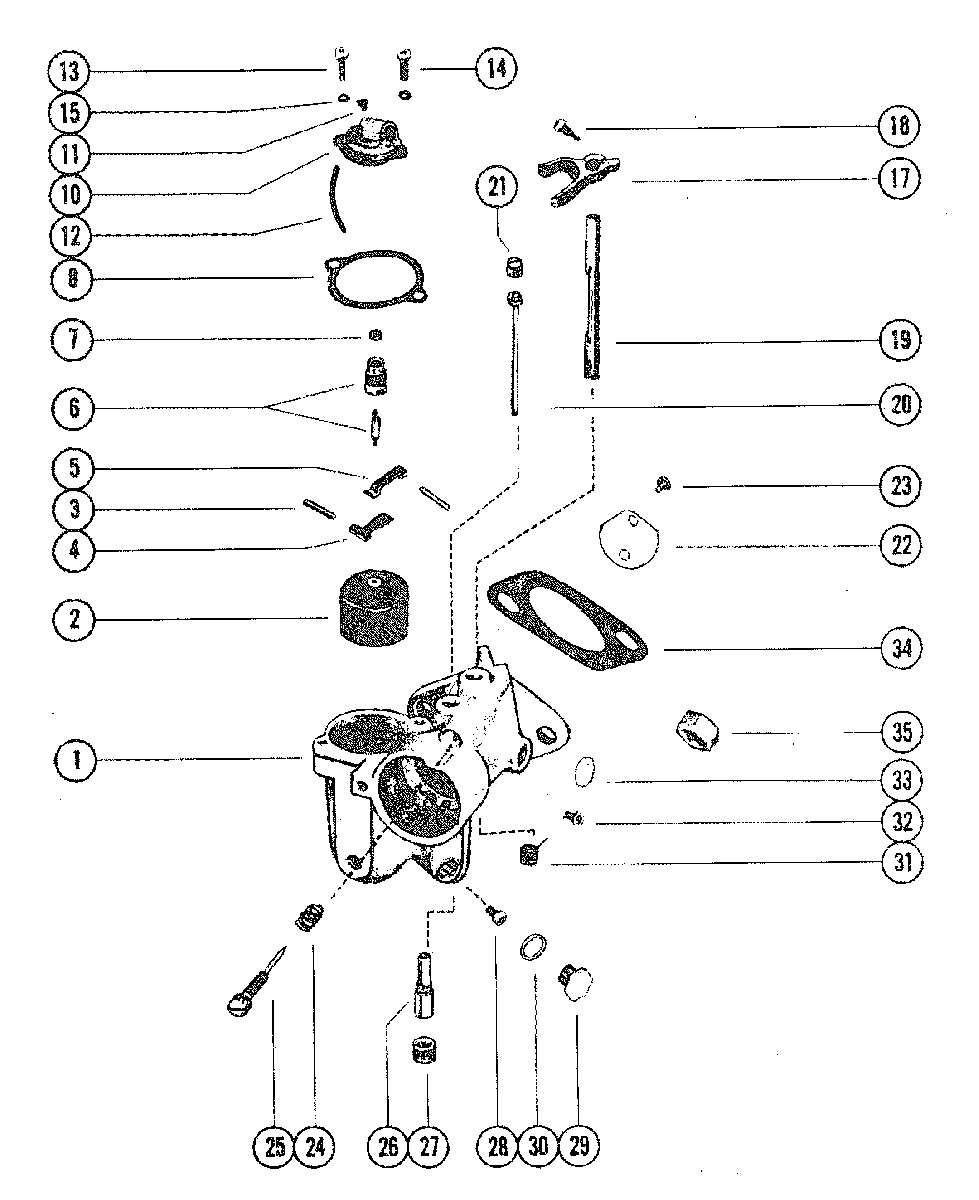

CARBURETOR ASSEMBLY для Mariner - 115 (6 CYL.) 5738891 THRU 6436122

  • №
    Артикул
    Название
  • 1
    1368-7472A1 CARBURETOR (TOP)
    STAMPED WMK-28 UNITED STATES 6050770 AND BELOW
    CARBURETOR (TOP)
    STAMPED WMK-28 UNITED STATES 6050770 AND BELOW
  • 1
    1368-7472A3 CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-28 UNITED STATES 6050770 AND BELOW
    CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-28 UNITED STATES 6050770 AND BELOW
  • 1
    1368-7472A6 CARBURETOR (TOP)
    STAMPED WMK-32 UNITED STATES 6050770 AND BELOW
    CARBURETOR (TOP)
    STAMPED WMK-32 UNITED STATES 6050770 AND BELOW
  • 1
    1368-7472A8 CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-32 UNITED STATES 6050770 AND BELOW
    CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-32 UNITED STATES 6050770 AND BELOW
  • 1
    1368-7472A10 CARBURETOR (TOP)
    STAMPED WMK-36 UNITED STATES 6050771 THRU 6262755
    CANADA 7191308 THRU 7191347
    CARBURETOR (TOP)
    STAMPED WMK-36 UNITED STATES 6050771 THRU 6262755
    CANADA 7191308 THRU 7191347
  • 1
    1368-7472A12 CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-36 UNITED STATES 6050771 THRU 6262755
    CANADA 7191308 THRU 7191347
    CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-36 UNITED STATES 6050771 THRU 6262755
    CANADA 7191308 THRU 7191347
  • 1
    1368-7472A27 CARBURETOR (TOP)
    STAMPED WMK-40 UNITED STATES 6262756 AND UP
    CARBURETOR (TOP)
    STAMPED WMK-40 UNITED STATES 6262756 AND UP
  • 1
    1368-7472A29 CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-40 UNITED STATES 6262756 AND UP
    CARBURETOR (CENTER/BOTTOM)
    STAMPED WMK-40 UNITED STATES 6262756 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY (WMK-28/WMK-32)
    FLOAT ASSEMBLY (WMK-28/WMK-32)
  • 2
    1395-8673 FLOAT ASSEMBLY (WMK-36/WMK-40)
    FLOAT ASSEMBLY (WMK-36/WMK-40)
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET (WMK-28)
    INLET NEEDLE, SEAT AND GASKET (WMK-28)
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET (WMK-32/-36/-40)
    INLET NEEDLE, SEAT AND GASKET (WMK-32/-36/-40)
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 10
    1395-5680 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 11
    1399-6249 JET, BOWL VENT (.096) (WMK-28)
    JET, BOWL VENT (.096) (WMK-28)
  • 11
    1395-8423 JET, BOWL VENT (.094) (WMK-32/WMK-36/WMK-40)
    JET, BOWL VENT (.094) (WMK-32/WMK-36/WMK-40)
  • 12
    32-892024122 HOSE, ECONOMIZER
    HOSE, ECONOMIZER
  • 13
    10-52195 SCREW, FLOAT BOWL COVER
    SCREW, FLOAT BOWL COVER
  • 14
    1395-4804 SCREW, FLOAT BOWL COVER
    SCREW, FLOAT BOWL COVER
  • 15
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 17
    8146791 LEVER, THROTTLE (SEE NOTE BELOW)
    LEVER, THROTTLE (SEE NOTE BELOW)
  • 18
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 19
    1395-7614 SHAFT, THROTTLE (TOP)
    SHAFT, THROTTLE (TOP)
  • 19
    1395-7942 SHAFT, THROTTLE (CENTER/BOTTOM)
    SHAFT, THROTTLE (CENTER/BOTTOM)
  • 20
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 21
    1395-4540 SCREW, BODY (IDLE TUBE)
    SCREW, BODY (IDLE TUBE)
  • 22
    1395-7639 SHUTTER, THROTTLE (WMK-28/WMK-32/WMK-36)
    SHUTTER, THROTTLE (WMK-28/WMK-32/WMK-36)
  • 22
    1395-8964 SHUTTER, THROTTLE (WMK-40)
    SHUTTER, THROTTLE (WMK-40)
  • 23
    90-8M0143356 SCREW, THROTTLE SHUTTER
    SCREW, THROTTLE SHUTTER
  • 24
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 25
    90-8M0143356 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 26
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 27
    1395-4542 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 28
    1399-3796 JET, MAIN FUEL (.076) - STANDARD (WMK-36)
    JET, MAIN FUEL (.076) - STANDARD (WMK-36)
  • 28
    1399-3794 JET, MAIN FUEL (.074) - STANDARD (WMK-28/WMK-40)
    JET, MAIN FUEL (.074) - STANDARD (WMK-28/WMK-40)
  • 28
    1395-6207 JET, MAIN FUEL (.O72) - STANDARD (WMK-32)
    JET, MAIN FUEL (.O72) - STANDARD (WMK-32)
  • 28
    1395-6030 JET, MAIN FUEL (.070)
    JET, MAIN FUEL (.070)
  • 28
    1395-6029 JET, MAIN FUEL (.068)
    JET, MAIN FUEL (.068)
  • 29
    1395-4541 SCREW, PLUG - MAIN FULE JET CHANNEL
    SCREW, PLUG - MAIN FULE JET CHANNEL
  • 30
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 31
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 32
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
  • 33
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • 33
    1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)
    GASKET AND PACKING SET (1 PER CARBURETOR)
  • 33
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR) (WMK-28)
    REPAIR PARTS KIT (1 PER CARBURETOR) (WMK-28)
  • 33
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)(WMK-32/WMK-36)
    REPAIR PARTS KIT (1 PER CARBURETOR)(WMK-32/WMK-36)
  • 33
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)(WMK-40)
    REPAIR PARTS KIT (1 PER CARBURETOR)(WMK-40)
  • 34
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 35
    11-64809 NUT, CARBURETOR STUD
    NUT, CARBURETOR STUD
