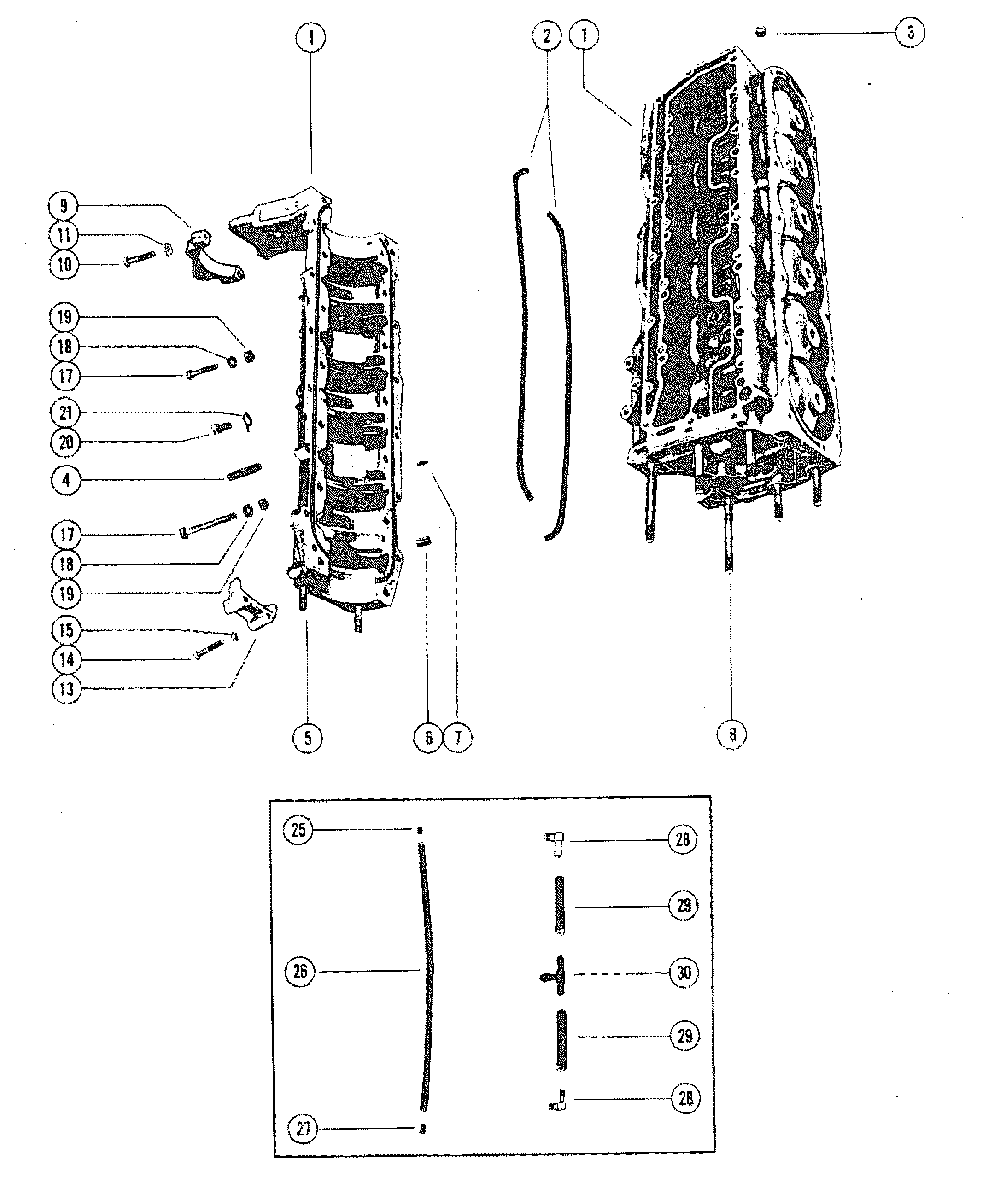

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 115 (6 CYL.) 5738891 THRU 6436122

  • №
    Артикул
    Название
  • 1
    852-7740A3 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 5861526 AND BELOW
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 5861526 AND BELOW
  • 1
    852-7740A3 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 5861527 THRU 6050770
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 5861527 THRU 6050770
  • 1
    852-8310A4 BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6050771 AND UP
    CANADA 7191308 AND UP
    BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6050771 AND UP
    CANADA 7191308 AND UP
  • 2
    852-8310A4 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    66517 RESTRICTION, CRANKCASE BLEED
    RESTRICTION, CRANKCASE BLEED
  • 4
    16-64936 STUD, CARBURETOR (1-3/16")
    STUD, CARBURETOR (1-3/16")
  • 5
    16-64281 STUD, CRANKCASE TO EXTENSION PLATE (1-7/8")
    STUD, CRANKCASE TO EXTENSION PLATE (1-7/8")
  • 6
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 7
    17-63779 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 8
    16-64282 STUD, CYLINDER BLOCK TO PLATE (4")
    STUD, CYLINDER BLOCK TO PLATE (4")
  • 9
    86473 COVER, STARTER MOTOR - TOP
    COVER, STARTER MOTOR - TOP
  • 10
    10-73279 SCREW, TOP COVER (1-7/8")
    SCREW, TOP COVER (1-7/8")
  • 11
    13-26993 LOCKWASHER, TOP COVER SCREWS
    LOCKWASHER, TOP COVER SCREWS
  • 13
    76867 COVER, STARTER MOTOR BRACKET - BOTTOM
    COVER, STARTER MOTOR BRACKET - BOTTOM
  • 14
    10-73279 SCREW, BOTTOM COVER (1-7/8")
    SCREW, BOTTOM COVER (1-7/8")
  • 15
    13-26993 LOCKWASHER, BOTTOM COVER SCREW
    LOCKWASHER, BOTTOM COVER SCREW
  • 17
    10-57841 SCREW, CRANKCASE TO CYLINDER BLOCK (2-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2-3/4")
  • 17
    10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
  • 17
    10-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/2")
  • 17
    10-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
  • 18
    12-22753 WASHER, CRANKCASE SCREWS
    WASHER, CRANKCASE SCREWS
  • 19
    11-29250 NUT, CRANKCASE SCREWS (LOWER)
    NUT, CRANKCASE SCREWS (LOWER)
  • 20
    10-20359 SCREW, CENTER MAIN BEARING LOCKING
    SCREW, CENTER MAIN BEARING LOCKING
  • 21
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 25
    21-42866 CHECK VALVE, BLEED HOSE - UPPER
    CHECK VALVE, BLEED HOSE - UPPER
  • 26
    32-9938779 HOSE, BLEED (22")
    HOSE, BLEED (22")
  • 27
    21-428671 CHECK VALVE, BLEED HOSE - LOWER
    CHECK VALVE, BLEED HOSE - LOWER
  • 28
    22-996642 ELBOW, BALANCE HOSE
    ELBOW, BALANCE HOSE
  • 29
    32-8M0108355 HOSE, BALANCE - MAIN BEARING (6-1/4")
    HOSE, BALANCE - MAIN BEARING (6-1/4")
  • 30
    22-8585531 TEE, BALANCE HOSE
    UNITED STATES 6050770 AND BELOW
    TEE, BALANCE HOSE
    UNITED STATES 6050770 AND BELOW
  • 30
    22-97231 TEE, BLEED HOSE
    UNITED STATES 6050771 AND UP
    CANADA 7191308 AND UP
    TEE, BLEED HOSE
    UNITED STATES 6050771 AND UP
    CANADA 7191308 AND UP
