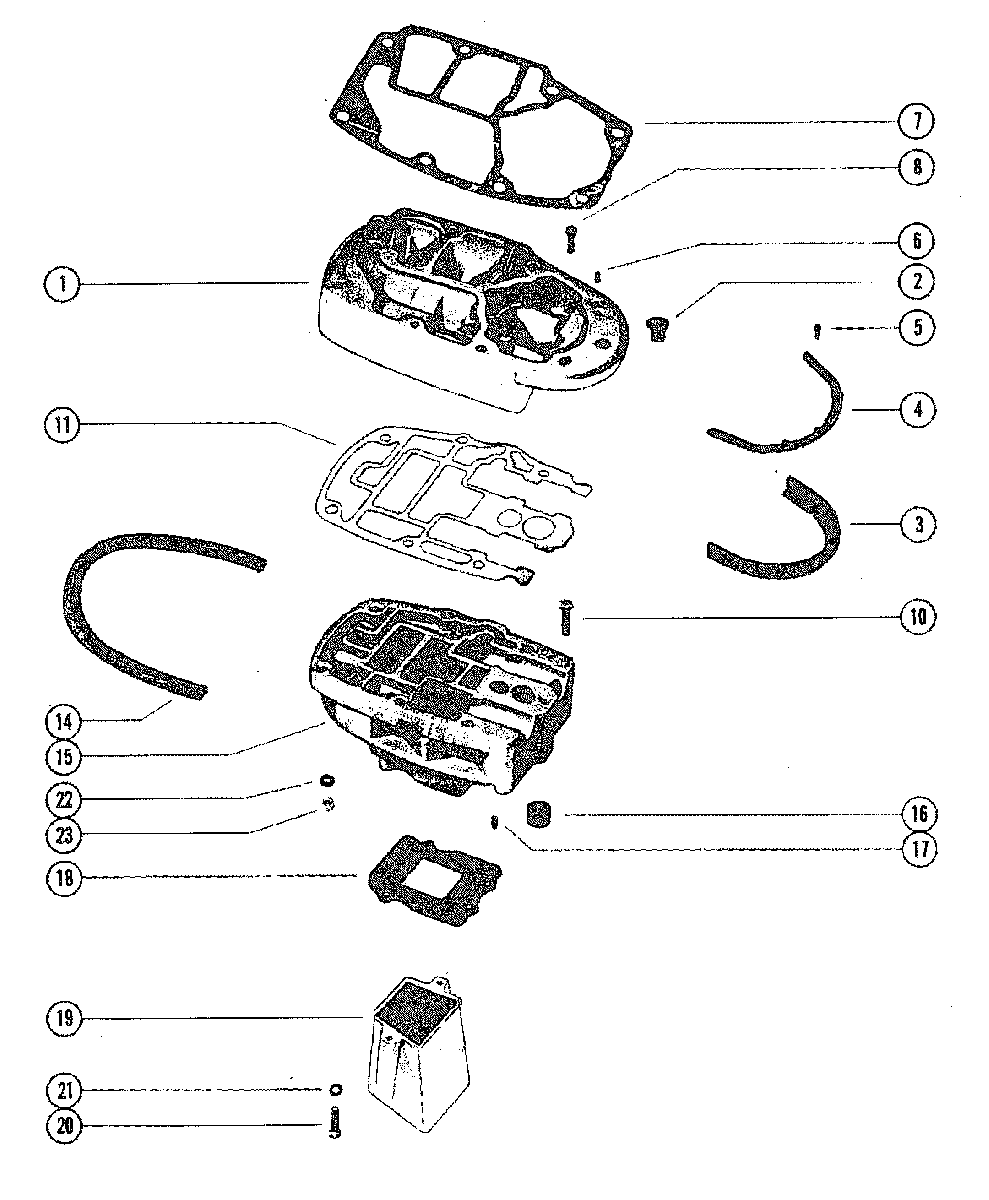

EXHAUST EXTENSION PLATE для Mariner - 115 (6 CYL.) 5738891 THRU 6436122

  • №
    Артикул
    Название
  • 1
    43289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 2
    23-27132 BUSHING, NYLON - EXHAUST EXTENSION
    BUSHING, NYLON - EXHAUST EXTENSION
  • 3
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 4
    99358 STRIP, RETAINING - PLATE SEAL
    STRIP, RETAINING - PLATE SEAL
  • 5
    10-37571 SCREW, SEAL AND RETAINING STRIP (1/2")
    SCREW, SEAL AND RETAINING STRIP (1/2")
  • 6
    17-23784 DOWEL PIN, EXHAUST EXTENSION PLATE
    DOWEL PIN, EXHAUST EXTENSION PLATE
  • 7
    27-692381 GASKET, POWERHEAD
    GASKET, POWERHEAD
  • 8
    10-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
    SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
  • 10
    10-66023 SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
    SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
  • 11
    27-661021 GASKET, PLATE TO DRIVE SHAFT HOUSING PLATE
    GASKET, PLATE TO DRIVE SHAFT HOUSING PLATE
  • 14
    26-60898 SEAL, DRAIVE SHAFT HOUSING PLATE
    SEAL, DRAIVE SHAFT HOUSING PLATE
  • 15
    43290A4 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
    PLATE ASSEMBLY, DRIVE SHAFT HOUSING
  • 16
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 17
    17-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATE
    DOWEL PIN, DRIVE SHAFT HOUSING PLATE
  • 18
    27-62362 GASKET, MEGAPHONE
    UNITED STATES 5861526 AND BELOW
    GASKET, MEGAPHONE
    UNITED STATES 5861526 AND BELOW
  • 19
    99699 MEGAPHONE, EXHAUST
    UNITED STATES 5861526 AND BELOW
    MEGAPHONE, EXHAUST
    UNITED STATES 5861526 AND BELOW
  • 20
    10-60480 SCREW, MEGAPHONE (1-1/8")
    UNITED STATES 5861526 AND BELOW
    SCREW, MEGAPHONE (1-1/8")
    UNITED STATES 5861526 AND BELOW
  • 21
    12-29245 WASHER, MEGAPHONE SCREW
    UNITED STATES 5861526 AND BELOW
    WASHER, MEGAPHONE SCREW
    UNITED STATES 5861526 AND BELOW
  • 19
    99700 MEGAPHONE, EXHAUST
    UNITED STATES 5861527 AND UP
    MEGAPHONE, EXHAUST
    UNITED STATES 5861527 AND UP
  • 20
    10-65414 SCREW, MEGAPHONE TO PLATE (3/4")
    UNITED STATES 5861527 AND UP
    SCREW, MEGAPHONE TO PLATE (3/4")
    UNITED STATES 5861527 AND UP
  • 21
    13-26992 LOCKWASHER, MEGAPHONE SCREW
    UNITED STATES 5861527 AND UP
    LOCKWASHER, MEGAPHONE SCREW
    UNITED STATES 5861527 AND UP
  • 22
    12-20553 WASHER, POWERHEAD STUD
    WASHER, POWERHEAD STUD
  • 23
    11-82671013 NUT, POWERHEAD STUD
    NUT, POWERHEAD STUD
