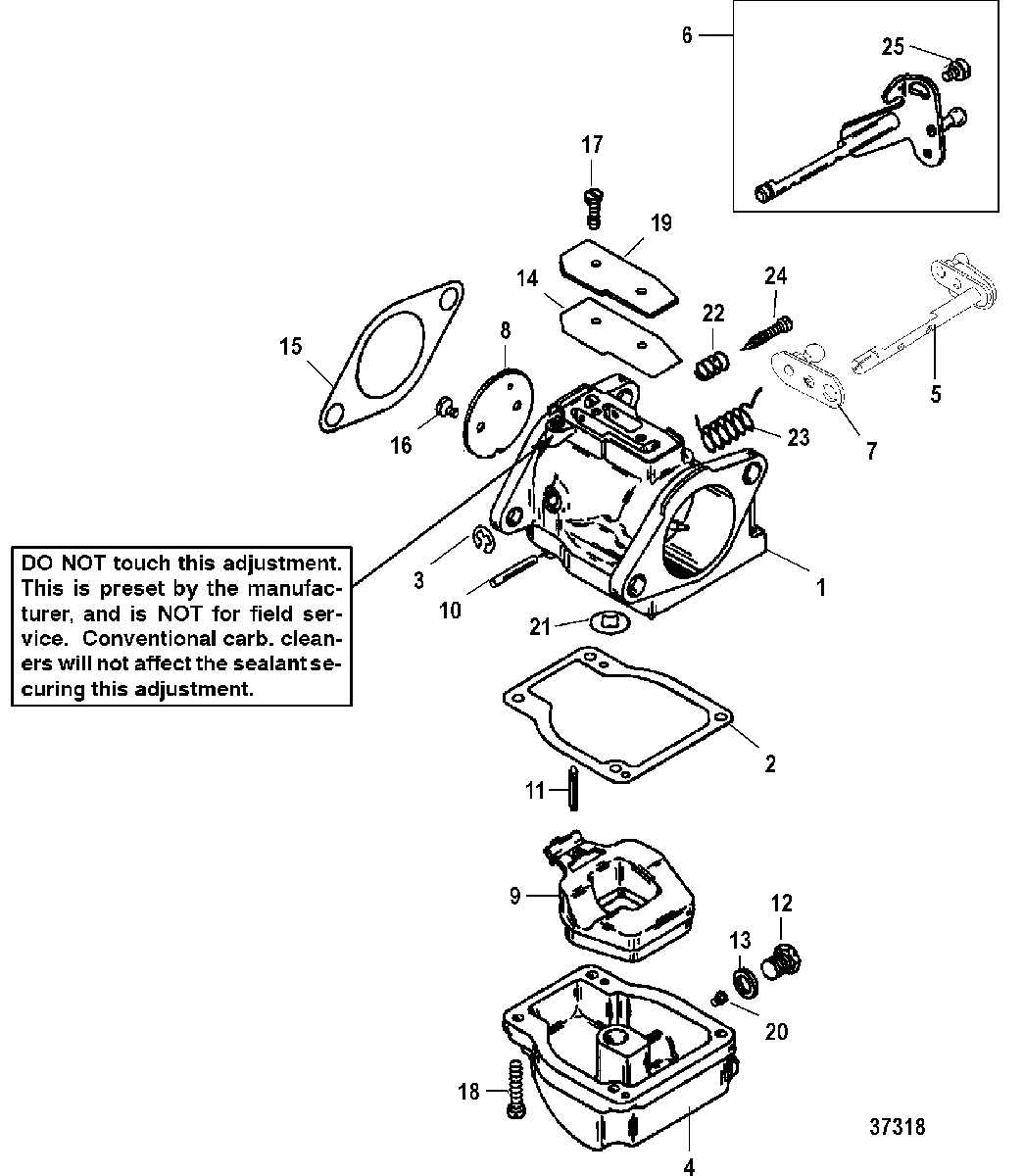

CARBURETOR, WME-50/51/52/79/80/81 для Mariner - 115 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
13301-823799T39 CARBURETOR
100 - WME-50CARBURETOR
100 - WME-50 -
13301-823799T40 CARBURETOR
100 - WME-50CARBURETOR
100 - WME-50 -
13301-823799T41 CARBURETOR
100 - WME-50CARBURETOR
100 - WME-50 -
13301-823799T42 CARBURETOR
100 - WME-50CARBURETOR
100 - WME-50 -
13301-884586T07 CARBURETOR
115 - WME-51CARBURETOR
115 - WME-51 -
13301-884586T08 CARBURETOR
115 - WME-51CARBURETOR
115 - WME-51 -
13301-884586T09 CARBURETOR
115 - WME-51CARBURETOR
115 - WME-51 -
13301-884586T10 CARBURETOR
115 - WME-51CARBURETOR
115 - WME-51 -
13301-884587T07 CARBURETOR
125 - WME-52CARBURETOR
125 - WME-52 -
13301-884587T08 CARBURETOR
125 - WME-52CARBURETOR
125 - WME-52 -
13301-884587T09 CARBURETOR
125 - WME-52CARBURETOR
125 - WME-52 -
13301-884587T10 CARBURETOR
125 - WME-52CARBURETOR
125 - WME-52 -
13301-823799T39 CARBURETOR
100 - WME-79CARBURETOR
100 - WME-79 -
13301-823799T40 CARBURETOR
100 - WME-79CARBURETOR
100 - WME-79 -
13301-823799T41 CARBURETOR
100 - WME-79CARBURETOR
100 - WME-79 -
13301-823799T42 CARBURETOR
100 - WME-79CARBURETOR
100 - WME-79 -
13301-884586T07 CARBURETOR
115 - WME-80CARBURETOR
115 - WME-80 -
13301-884586T08 CARBURETOR
115 - WME-80CARBURETOR
115 - WME-80 -
13301-884586T09 CARBURETOR
115 - WME-80CARBURETOR
115 - WME-80 -
13301-884586T10 CARBURETOR
115 - WME-80CARBURETOR
115 - WME-80 -
13301-884587T07 CARBURETOR
125 - WME-81CARBURETOR
125 - WME-81 -
13301-884587T08 CARBURETOR
125 - WME-81CARBURETOR
125 - WME-81 -
13301-884587T09 CARBURETOR
125 - WME-81CARBURETOR
125 - WME-81 -
13301-884587T10 CARBURETOR
125 - WME-81CARBURETOR
125 - WME-81 -
2NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
3NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
41395-811693 BOWL, FuelBOWL, Fuel
-
51395-823632 SHAFT, Throttle (WME-1/3/4)SHAFT, Throttle (WME-1/3/4)
-
61395-8236321 SHAFT, Throttle (WME-2)SHAFT, Throttle (WME-2)
-
71395-8087461 LEVER, Throttle (WME-1/3/4)LEVER, Throttle (WME-1/3/4)
-
81395-97241 VALVE, Throttle
(WME-50/51/52/81)VALVE, Throttle
(WME-50/51/52/81) -
81395-97244 VALVE, Throttle
(WME-79/80)VALVE, Throttle
(WME-79/80) -
91395-9594 FLOATFLOAT
-
10F10064 SHAFTSHAFT
-
1110-95951 VALVE, Inlet NeedleVALVE, Inlet Needle
-
121395-811694 PLUG KITPLUG KIT
-
131395-802731 SEAL (CONSISTS OF 4 SEALS)SEAL (CONSISTS OF 4 SEALS)
-
14NSS NOT SOLD SEPARATE, Gasket-Cover PlateNOT SOLD SEPARATE, Gasket-Cover Plate
-
1527-151724 GASKETGASKET
-
1610-F10155 SCREW, Throttle ValveSCREW, Throttle Valve
-
171395-811220 SCREW, Cover PlateSCREW, Cover Plate
-
181395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
191395-811221 COVER PLATECOVER PLATE
-
201395-6359 JET, (.052)
(WME-50-1)JET, (.052)
(WME-50-1) -
201395-6028 JET, (.050)
(WME-50-2/3)JET, (.050)
(WME-50-2/3) -
201395-6359 JET, (.052)
(WME-50-4)JET, (.052)
(WME-50-4) -
201399-4217 JET, Main (.062)
(WME-51-1/2/3)JET, Main (.062)
(WME-51-1/2/3) -
201399-4216 JET, (.064)
(WME-51-4)JET, (.064)
(WME-51-4) -
201395-6030 JET, (.070)
(WME-52-1)JET, (.070)
(WME-52-1) -
201395-6201 JET, (.080)
(WME-52-2/3)JET, (.080)
(WME-52-2/3) -
201399-3518 JET, (.082)
(WME-52-4)JET, (.082)
(WME-52-4) -
201395-6359 JET, (.052)
(WME-79-1)JET, (.052)
(WME-79-1) -
201395-6028 JET, (.050)
(WME-79-2/3)JET, (.050)
(WME-79-2/3) -
201395-6359 JET, (.052)
(WME-79-4)JET, (.052)
(WME-79-4) -
201395-6487 JET, Main (.060)
(WME-80-1)JET, Main (.060)
(WME-80-1) -
201399-4216 JET, (.064)
(WME-80-2/4)JET, (.064)
(WME-80-2/4) -
201399-4217 JET, Main (.062)
(WME-80-3)JET, Main (.062)
(WME-80-3) -
201395-6030 JET, (.070)
(WME-81-1)JET, (.070)
(WME-81-1) -
201395-6201 JET, (.080)
(WME-81-2/3)JET, (.080)
(WME-81-2/3) -
201399-3518 JET, (.082)
(WME-81-4/52-4)JET, (.082)
(WME-81-4/52-4) -
211395-808738 GASKETGASKET
-
22NSS NOT SOLD SEPARATE, Spring-Idle NeedleNOT SOLD SEPARATE, Spring-Idle Needle
-
23NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
24NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
251395-823634 SCREWSCREW
-
-1395-8112231 GASKET SET, CarburetorGASKET SET, Carburetor
-
-1395-8236354 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-13461A99 GASKET SETGASKET SET
