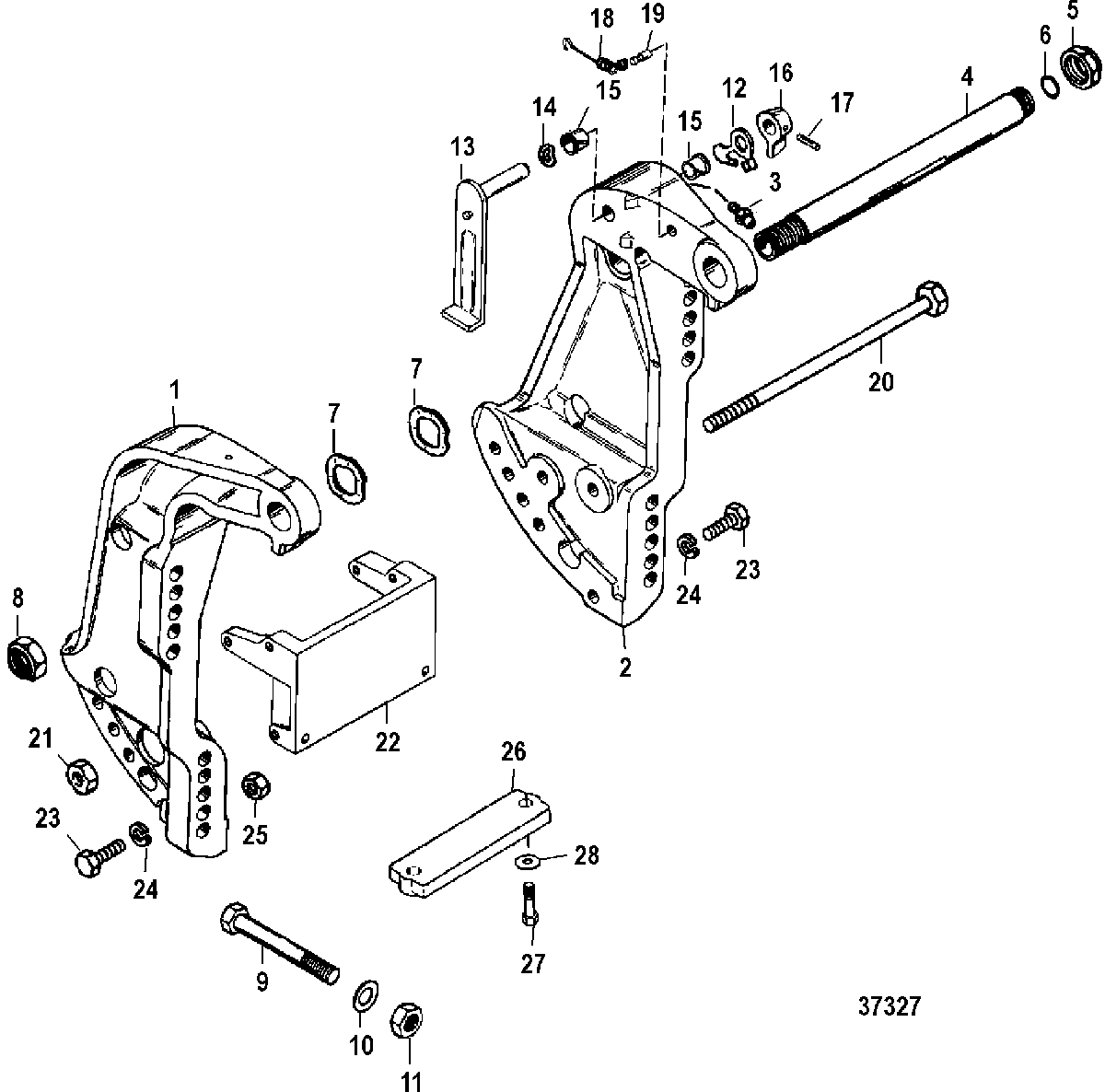

TRANSOM BRACKET(S/N-USA-0G589999/BEL-9973099 AND BELOW) для Mariner - 115 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
13401-8718F7 BRACKET, Transom
(STARBOARD) BLACKBRACKET, Transom
(STARBOARD) BLACK -
13401-8718F8 BRACKET, Transom
(STARBOARD) GRAYBRACKET, Transom
(STARBOARD) GRAY -
13401-8718F10 BRACKET, Transom
(STARBOARD) TRACKER GRAPHITE GRAYBRACKET, Transom
(STARBOARD) TRACKER GRAPHITE GRAY -
23400-8716A8 BRACKET ASSEMBLY, Transom
(PORT) BLACKBRACKET ASSEMBLY, Transom
(PORT) BLACK -
23400-8716A9 BRACKET ASSEMBLY, Transom
(PORT) GRAYBRACKET ASSEMBLY, Transom
(PORT) GRAY -
23400-8716A10 BRACKET ASSEMBLY, Transom
(PORT) TRACKER GRAPHITE GRAYBRACKET ASSEMBLY, Transom
(PORT) TRACKER GRAPHITE GRAY -
322-98727 FITTING, Grease (PORT)FITTING, Grease (PORT)
-
4826125A1 TUBE KIT, TiltTUBE KIT, Tilt
-
511-826135 NUT, (1.00-14) Nylon InsertNUT, (1.00-14) Nylon Insert
-
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
713-88750 WASHERWASHER
-
811-826164 NUT, (.875-14)NUT, (.875-14)
-
910-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1111-91962 NUT, (.500-20)NUT, (.500-20)
-
12814207 STOPSTOP
-
138M0109798 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1413-99611 WAVE WASHERWAVE WASHER
-
1523-65830 NYLINERNYLINER
-
1699633 KNOBKNOB
-
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLYBOLT ASSEMBLY
-
2111-23161 NUT, (.375-24)NUT, (.375-24)
-
228M0086406 BRACKET, Anchor
(BLACK)BRACKET, Anchor
(BLACK) -
228M0086406 BRACKET, Anchor
(GRAY)BRACKET, Anchor
(GRAY) -
228M0086406 BRACKET, Anchor
(TRACKER-GRAPHITE GRAY)BRACKET, Anchor
(TRACKER-GRAPHITE GRAY) -
2310-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2412-4002319 WASHERWASHER
-
2511-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
2697-818298Q1 ANODE KITANODE KIT
-
2710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
