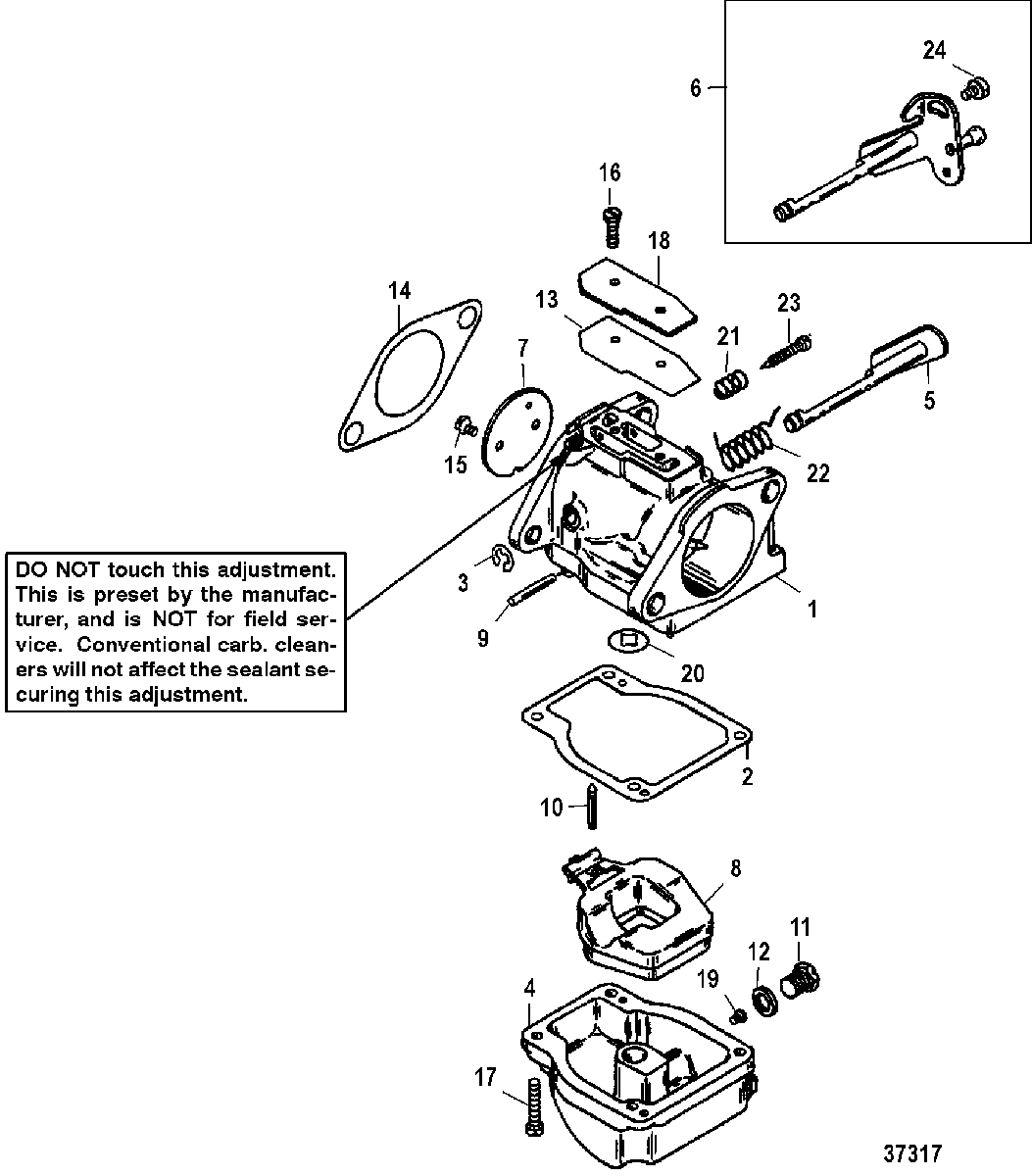

CARBURETOR, WME-32/32A/33/34/40/40A для Mariner - 115 (4 CYL.) 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    3301-823799T39 CARBURETOR
    100 - WME-32/32A
    CARBURETOR
    100 - WME-32/32A
  • 1
    3301-823799T40 CARBURETOR
    100 - WME-32/32A
    CARBURETOR
    100 - WME-32/32A
  • 1
    3301-823799T41 CARBURETOR
    100 - WME-32/32A
    CARBURETOR
    100 - WME-32/32A
  • 1
    3301-823799T42 CARBURETOR
    100 - WME-32/32A
    CARBURETOR
    100 - WME-32/32A
  • 1
    3301-884586T07 CARBURETOR
    115 - WME-33
    CARBURETOR
    115 - WME-33
  • 1
    3301-884586T08 CARBURETOR
    115 - WME-33
    CARBURETOR
    115 - WME-33
  • 1
    3301-884586T09 CARBURETOR
    115 - WME-33
    CARBURETOR
    115 - WME-33
  • 1
    3301-884586T10 CARBURETOR
    115 - WME-33
    CARBURETOR
    115 - WME-33
  • 1
    3301-884586T07 CARBURETOR
    115 - WME-40/40A
    CARBURETOR
    115 - WME-40/40A
  • 1
    3301-884586T08 CARBURETOR
    115 - WME-40/40A
    CARBURETOR
    115 - WME-40/40A
  • 1
    3301-884586T09 CARBURETOR
    115 - WME-40/40A
    CARBURETOR
    115 - WME-40/40A
  • 1
    3301-884586T10 CARBURETOR
    115 - WME-40/40A
    CARBURETOR
    115 - WME-40/40A
  • 1
    3301-884587T07 CARBURETOR
    125 - WME-34
    CARBURETOR
    125 - WME-34
  • 1
    3301-884587T08 CARBURETOR
    125 - WME-34
    CARBURETOR
    125 - WME-34
  • 1
    3301-884587T09 CARBURETOR
    125 - WME-34
    CARBURETOR
    125 - WME-34
  • 1
    3301-884587T10 CARBURETOR
    125 - WME-34
    CARBURETOR
    125 - WME-34
  • 2
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 3
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 4
    1395-811693 BOWL, Fuel
    BOWL, Fuel
  • 4
    1395-811696 BOWL, Fuel
    (WME-40-TOP)
    BOWL, Fuel
    (WME-40-TOP)
  • 5
    1395-823632 SHAFT, Throttle
    (WME-1/3/4)
    SHAFT, Throttle
    (WME-1/3/4)
  • 6
    1395-8236321 SHAFT, Throttle
    (WME-2)
    SHAFT, Throttle
    (WME-2)
  • 7
    1395-97241 VALVE, Throttle
    VALVE, Throttle
  • 8
    1395-9594 FLOAT
    FLOAT
  • 9
    F10064 SHAFT
    SHAFT
  • 10
    10-95951 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 11
    1395-811694 PLUG KIT
    PLUG KIT
  • 12
    1395-802731 SEAL (CONSISTS OF 4 SEALS)
    SEAL (CONSISTS OF 4 SEALS)
  • 13
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 14
    27-151724 GASKET
    GASKET
  • 15
    10-F10155 SCREW, Throttle Valve
    SCREW, Throttle Valve
  • 16
    1395-811220 SCREW, Cover Plate
    SCREW, Cover Plate
  • 17
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 18
    1395-811221 COVER PLATE
    COVER PLATE
  • 19
    1399-5317 JET, (.046)
    (WME-32-1/32A-1)
    JET, (.046)
    (WME-32-1/32A-1)
  • 19
    1395-6246 JET, (.048)
    (WME-32-2)
    JET, (.048)
    (WME-32-2)
  • 19
    1395-6028 JET, (.050)
    (WME-33-1/32A-2)
    JET, (.050)
    (WME-33-1/32A-2)
  • 19
    1395-6359 JET, (.052)
    (WME-32-3/4)
    JET, (.052)
    (WME-32-3/4)
  • 19
    1399-5225 JET, Main (.054)
    (WME-32A-3)
    JET, Main (.054)
    (WME-32A-3)
  • 19
    1399-5213 JET, Main (.056)
    (WME-33-2/3/32A-4)
    JET, Main (.056)
    (WME-33-2/3/32A-4)
  • 19
    1399-4217 JET, Main (.062)
    (WME-33-4)
    JET, Main (.062)
    (WME-33-4)
  • 19
    1399-4215 JET, Main Fuel (.066)
    (WME-34-1/40-1/40A-1)
    JET, Main Fuel (.066)
    (WME-34-1/40-1/40A-1)
  • 19
    1395-6029 JET, (.068)
    (WME-34-2/40-2/3)
    JET, (.068)
    (WME-34-2/40-2/3)
  • 19
    1395-6030 JET, (.070)
    (WME-34-3/40-4/40A-2/3)
    JET, (.070)
    (WME-34-3/40-4/40A-2/3)
  • 19
    1395-6207 JET, (.072)
    (WME-34-4/40A-4)
    JET, (.072)
    (WME-34-4/40A-4)
  • 20
    1395-808738 GASKET
    GASKET
  • 21
    NSS NOT SOLD SEPARATE, Spring-Idle Needle
    NOT SOLD SEPARATE, Spring-Idle Needle
  • 22
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 23
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 24
    1395-823634 SCREW
    SCREW
  • -
    1395-8112231 GASKET SET, Carburetor
    GASKET SET, Carburetor
  • -
    1395-8236354 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    27-13461A99 GASKET SET
    GASKET SET
