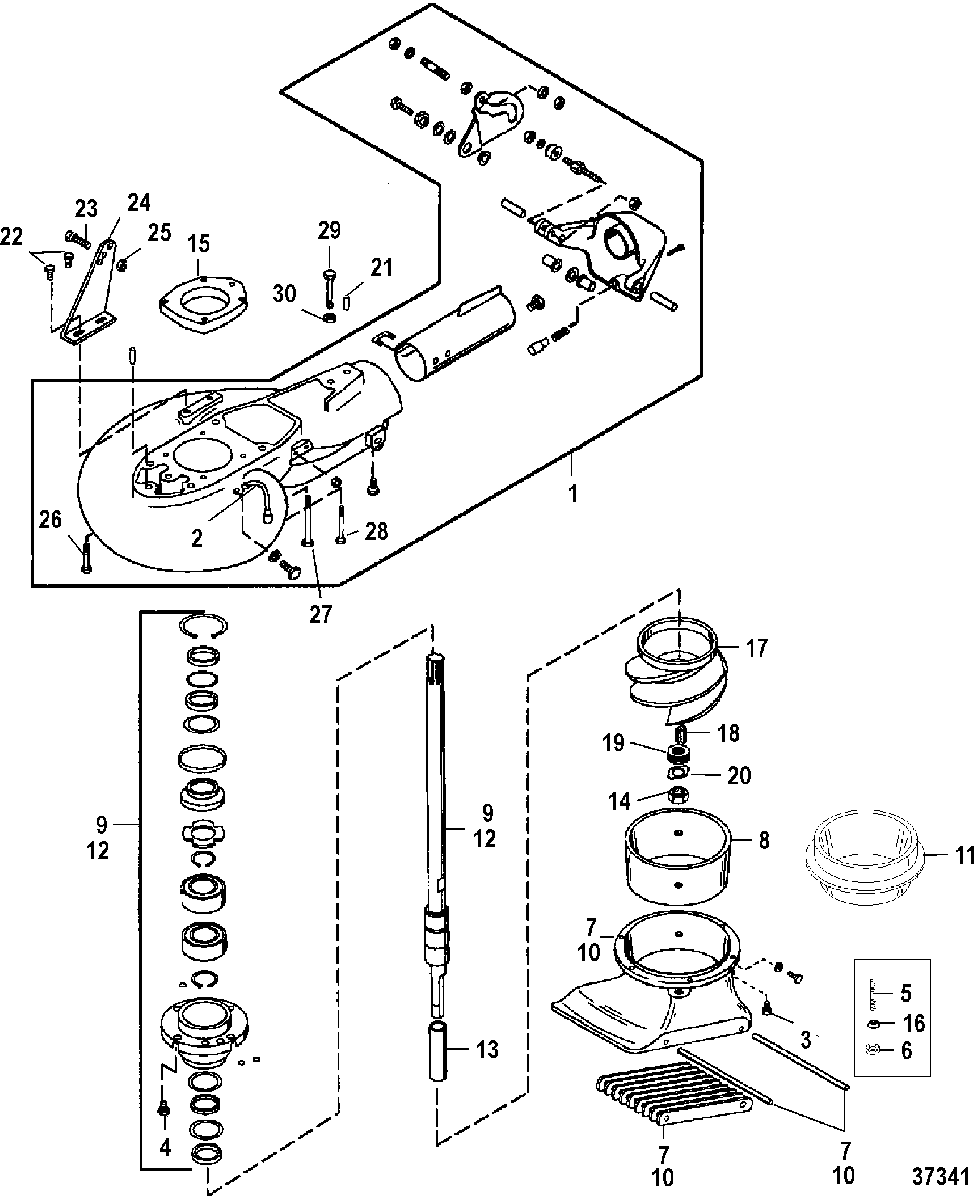

JET PUMP ASSEMBLY для Mariner - 115 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
-856143A1 JET PUMP ASSEMBLY
(BLACK) SN# 0G582704 & BelowJET PUMP ASSEMBLY
(BLACK) SN# 0G582704 & Below -
-856143A1 JET PUMP ASSEMBLY
(W/STAINLESS STEEL IMPELLER)JET PUMP ASSEMBLY
(W/STAINLESS STEEL IMPELLER) -
1855767T90 HOUSING, Pump
SN# 0G582705 & UpHOUSING, Pump
SN# 0G582705 & Up -
1801411T90 HOUSING, Pump
SN# 0G582704 & BelowHOUSING, Pump
SN# 0G582704 & Below -
232-827490 HOSE, LubeHOSE, Lube
-
310-848497 SCREW, (.312-18 x 1.00)
SN# 0G582704 & BelowSCREW, (.312-18 x 1.00)
SN# 0G582704 & Below -
410-19923088 SCREW, (.250-20 x .875)
SN# 0G582704 & BelowSCREW, (.250-20 x .875)
SN# 0G582704 & Below -
410-848497 SCREW, (.312-18 x 1.00)
SN# 0G582705 & UpSCREW, (.312-18 x 1.00)
SN# 0G582705 & Up -
516-855840 STUD, (.312-18 x 1.81)
SN# 0G582705 & UpSTUD, (.312-18 x 1.81)
SN# 0G582705 & Up -
611-82670910 NUT, (.312-18)
SN# 0G582705 & UpNUT, (.312-18)
SN# 0G582705 & Up -
780141290 HOUSING, Intake
SN# 0G582704 & BelowHOUSING, Intake
SN# 0G582704 & Below -
88271883 LINER
SN# 0G582704 & BelowLINER
SN# 0G582704 & Below -
945-80141390 DRIVESHAFT
SN# 0G582704 & BelowDRIVESHAFT
SN# 0G582704 & Below -
1085576890 HOUSING, Intake
SN# 0G582705 & UpHOUSING, Intake
SN# 0G582705 & Up -
11855771 LINER
SN# 0G582705 & UpLINER
SN# 0G582705 & Up -
1245-85576990 DRIVESHAFT
SN# 0G582705 & UpDRIVESHAFT
SN# 0G582705 & Up -
1323-8271891 SLEEVESLEEVE
-
1411-8271901 NUTNUT
-
15808747 ADAPTOR, PumpADAPTOR, Pump
-
1612-36001 WASHERWASHER
-
1747-855708115 IMPELLER
(ALUMINUM)IMPELLER
(ALUMINUM) -
1747-855708115 IMPELLER
(STAINLESS STEEL)IMPELLER
(STAINLESS STEEL) -
1828-801405875 KEYKEY
-
1915-801404875 SHIM, ImpellerSHIM, Impeller
-
2014-801403875 TAB WASHERTAB WASHER
-
2117-801407 PIN, DowelPIN, Dowel
-
2210-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2310-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
24801410 BRACKET, Cable SupportBRACKET, Cable Support
-
2511-82670910 NUT, (.312-18)NUT, (.312-18)
-
2610-4010860 SCREW, (M10 x 60) Hex Flange - Stainless SteelSCREW, (M10 x 60) Hex Flange - Stainless Steel
-
2710-4010890 SCREW, (M10 x 90) Hex Flange - Stainless SteelSCREW, (M10 x 90) Hex Flange - Stainless Steel
-
2810-4010870 SCREW, (M10 x 70) Hex Flange - Stainless SteelSCREW, (M10 x 70) Hex Flange - Stainless Steel
-
2910-843575 SCREW, (.375-16 x 4.00) Stainless SteelSCREW, (.375-16 x 4.00) Stainless Steel
-
3012-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
