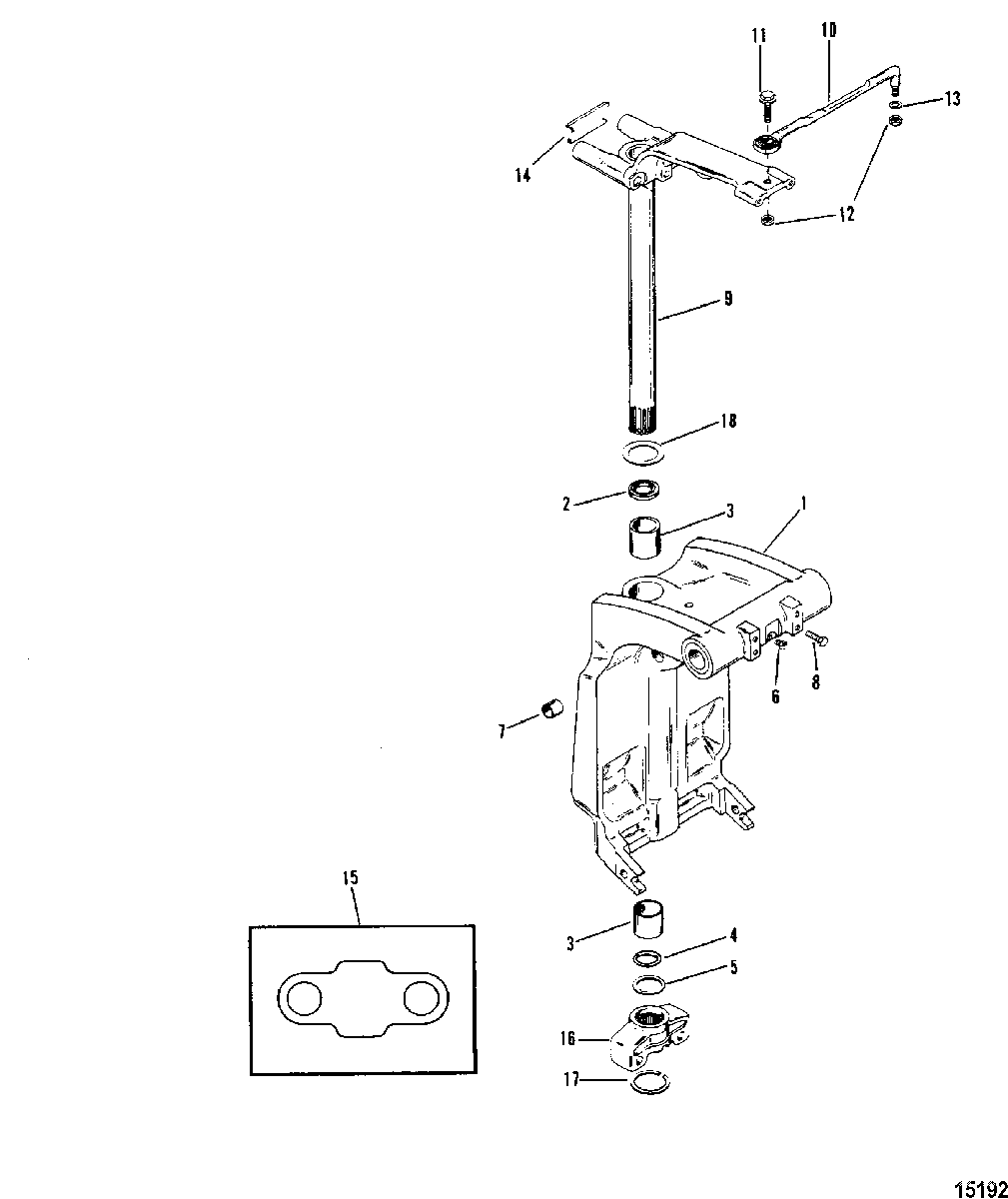

Swivel Bracket and Steering Arm(8709C6 / 818904C) для Mariner - 115 (4 CYL.) 0C100000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
    (Use With Non-Power Trim And Three Ram Power)
    SWIVEL BRACKET ASSEMBLY, Black
    (Use With Non-Power Trim And Three Ram Power)
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Gray
    (Use With Non-Power Trim And Three Ram Power)
    SWIVEL BRACKET ASSEMBLY, Gray
    (Use With Non-Power Trim And Three Ram Power)
  • 1
    1400-8M0107419 SWIVEL BRACKET ASSEMBLY, Black
    (Use With Single Ram Power Trim)
    SWIVEL BRACKET ASSEMBLY, Black
    (Use With Single Ram Power Trim)
  • 1
    3408-818904T2 SWIVEL BRACKET ASSEMBLY, Gray
    (Use With Single Ram Power Trim)
    SWIVEL BRACKET ASSEMBLY, Gray
    (Use With Single Ram Power Trim)
  • 2
    26-87735 SEAL, Oil, Lower
    SEAL, Oil, Lower
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    25-33504 O-RING
    O-RING
  • 5
    23-816039 SPACER
    SPACER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 9
    99661A35 SWIVEL PIN ASSEMBLY, Black
    SWIVEL PIN ASSEMBLY, Black
  • 9
    99661A35 SWIVEL PIN ASSEMBLY, Gray
    SWIVEL PIN ASSEMBLY, Gray
  • 10
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 11
    10-849838 SCREW, (.375-24 x 1.25)
    SCREW, (.375-24 x 1.25)
  • 12
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 13
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 14
    8M0000516 BUMPER, X-Long
    BUMPER, X-Long
  • 15
    11288001 BUMPER, Bottom Yoke, X-Long
    BUMPER, Bottom Yoke, X-Long
  • 16
    42961A06 YOKE ASSEMBLY, Bottom, Black
    YOKE ASSEMBLY, Bottom, Black
  • 16
    42961A06 YOKE ASSEMBLY, Bottom, Gray
    YOKE ASSEMBLY, Bottom, Gray
  • 17
    53-67684 RING, Retaining
    RING, Retaining
  • 18
    12-816432 THRUST WASHER
    THRUST WASHER
