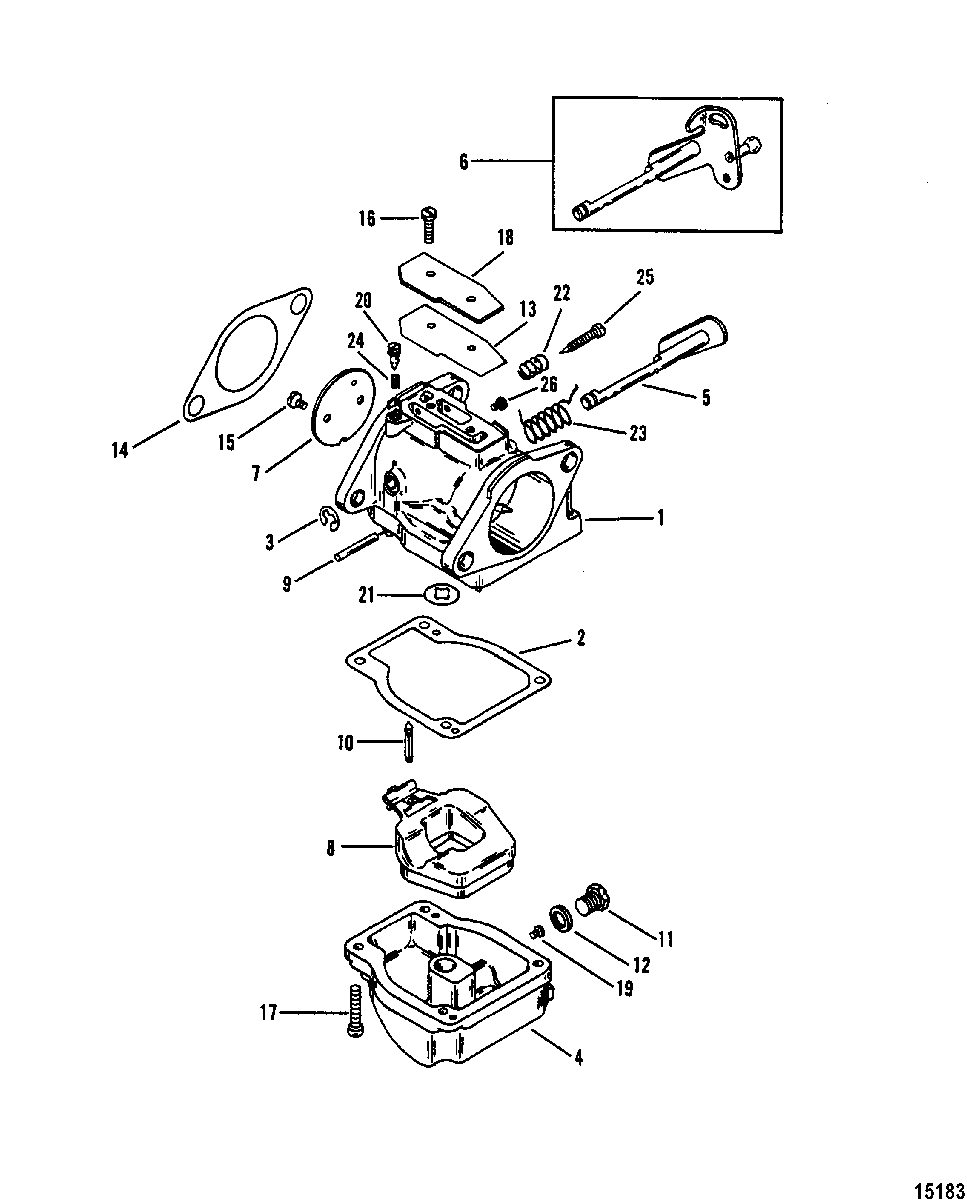

Carburetor для Mariner - 115 (4 CYL.) 0C100000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    3301-9532A12 CARBURETOR, 100 WME-20B
    CARBURETOR, 100 WME-20B
  • 1
    3301-9532A13 CARBURETOR, 100 WME-20B
    CARBURETOR, 100 WME-20B
  • 1
    3301-9532A14 CARBURETOR, 100 WME-20B
    CARBURETOR, 100 WME-20B
  • 1
    3301-9532A15 CARBURETOR, 100 WME-20B
    CARBURETOR, 100 WME-20B
  • 1
    3301-9012T77 CARBURETOR, 115-WME-21B
    CARBURETOR, 115-WME-21B
  • 1
    3301-9012T78 CARBURETOR, 115-WME-21B
    CARBURETOR, 115-WME-21B
  • 1
    3301-9012T79 CARBUBETOR, 115-WME-21B
    CARBUBETOR, 115-WME-21B
  • 1
    3301-9012T80 CARBURETOR, 115-WME-21B
    CARBURETOR, 115-WME-21B
  • 2
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 3
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 4
    1395-811693 BOWL, Fuel
    BOWL, Fuel
  • 4
    1395-811693 BOWL, Fuel (WME-20A&B/21A&B)
    BOWL, Fuel (WME-20A&B/21A&B)
  • 5
    1395-9591 SHAFT, Throttle (WME-1/3/4)
    SHAFT, Throttle (WME-1/3/4)
  • 6
    19270 SHAFT, Throttle (WME-2)
    SHAFT, Throttle (WME-2)
  • 7
    1395-9724 VALVE, Throttle (100)
    VALVE, Throttle (100)
  • 7
    813619 VALVE, Throttle (115)
    VALVE, Throttle (115)
  • 8
    1395-9594 FLOAT
    FLOAT
  • 9
    NSS NOT SOLD SEPARATE, Float Shaft
    NOT SOLD SEPARATE, Float Shaft
  • 10
    1395-879194011 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 11
    1395-811694 PLUG
    PLUG
  • 11
    1395-811694 PLUG KIT (WME-20A&B/21A&B)
    PLUG KIT (WME-20A&B/21A&B)
  • 12
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 13
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 14
    27-151724 GASKET
    GASKET
  • 15
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 16
    1395-9597 SCREW (WME-11/14)
    SCREW (WME-11/14)
  • 16
    1395-811220 SCREW, Cover Plate (WME-20/21)
    SCREW, Cover Plate (WME-20/21)
  • 17
    1395-808612 SCREW
    SCREW
  • 18
    1395-9598 COVER PLATE (WME-11/14)
    COVER PLATE (WME-11/14)
  • 18
    1395-811221 COVER PLATE (WME-20/21)
    COVER PLATE (WME-20/21)
  • 19
    1399-5225 JET, Main (.054) (100)
    JET, Main (.054) (100)
  • 19
    1399-5213 JET, Main (.056) (100)
    JET, Main (.056) (100)
  • 19
    1395-6680 JET, (.078) (WME1/2)-115 WME-14
    JET, (.078) (WME1/2)-115 WME-14
  • 19
    1399-3796 JET, (.076) (WME 3/4) -115 WME-14
    JET, (.076) (WME 3/4) -115 WME-14
  • 19
    1399-3796 JET, (.076) (115)
    JET, (.076) (115)
  • 19
    1395-6680 JET, (.078) (115)
    JET, (.078) (115)
  • 20
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 21
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 22
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 23
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 24
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 25
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 26
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • -
    1395-8112231 GASKET KIT (WME-11/14)
    GASKET KIT (WME-11/14)
  • -
    1395-8112231 GASKET SET, Carburetor (WME-20/21)
    GASKET SET, Carburetor (WME-20/21)
  • -
    1395-8236354 REPAIR KIT (WME-11/14) And (WME-20/21)
    REPAIR KIT (WME-11/14) And (WME-20/21)
  • -
    27-13461A99 GASKET SET
    GASKET SET
