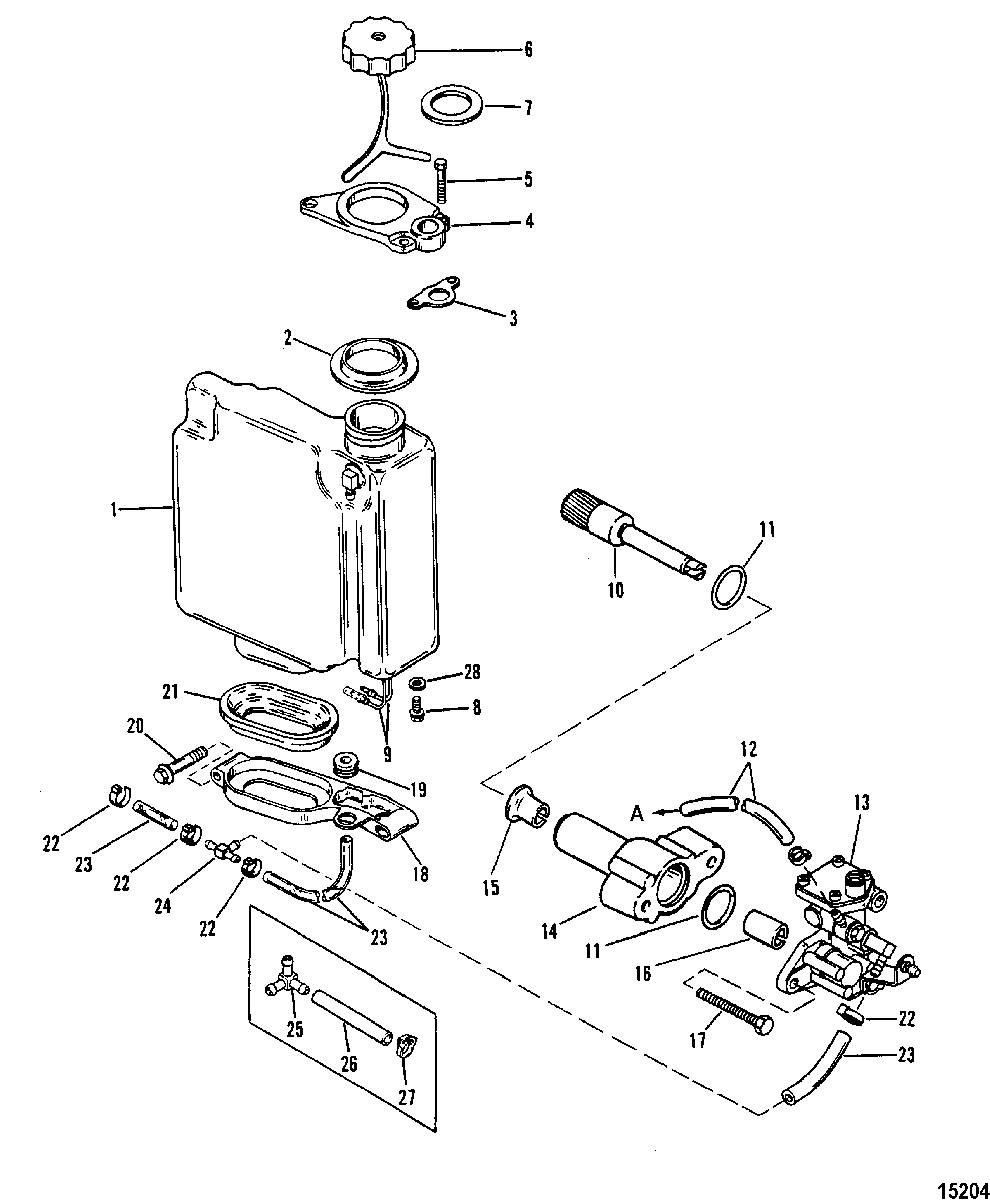

Oil Injection Components для Mariner - 115 (4 CYL.) 0C100000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    1256-8628A7 TANK ASSEMBLY, Oil
    TANK ASSEMBLY, Oil
  • 2
    99160001 BOOT, Upper
    BOOT, Upper
  • 3
    NLA No Longer Available, Cover, Old Design
    No Longer Available, Cover, Old Design
  • 4
    988952 BRACKET, Upper
    BRACKET, Upper
  • 5
    10-4010630 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 6
    36-42653A3 CAP ASSEMBLY
    CAP ASSEMBLY
  • 7
    27-42999T GASKET
    GASKET
  • 8
    10-12896 SCREW, (#8-18 x .310)
    SCREW, (#8-18 x .310)
  • 9
    87-12886A6 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 10
    43-430204 GEAR, Driven
    GEAR, Driven
  • 11
    25-62705 O-RING
    O-RING
  • 12
    32-82381335 TUBING, (8.00 Inches)
    (A = To Fuel Pump)
    TUBING, (8.00 Inches)
    (A = To Fuel Pump)
  • 13
    44345T3 PUMP, Oil
    PUMP, Oil
  • 14
    17335A3 ADAPTOR ASSEMBLY
    ADAPTOR ASSEMBLY
  • 15
    23-17597 BUSHING
    BUSHING
  • 16
    23-17596 BUSHING
    BUSHING
  • 17
    10-82104540 SCREW
    SCREW
  • 18
    42888 BRACKET, Oil Tank Base
    BRACKET, Oil Tank Base
  • 19
    25-56291 GROMMET
    GROMMET
  • 20
    10-82155050 SCREW, (M8 x 50) Stainless Steel
    SCREW, (M8 x 50) Stainless Steel
  • 21
    99161 BOOT
    BOOT
  • 22
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 23
    32-82381455 TUBING, Use With Reference Number 24
    TUBING, Use With Reference Number 24
  • 24
    22-73318 TEE, Plastic
    TEE, Plastic
  • 23
    32-82381455 TUBING, Use With Reference Number 25
    TUBING, Use With Reference Number 25
  • 25
    22-44456 FITTING, Three Hole
    FITTING, Three Hole
  • 26
    32-82381455 TUBING, (14.50 Inches Bulk), Use With Reference Number 25
    TUBING, (14.50 Inches Bulk), Use With Reference Number 25
  • 27
    54-814200 CLAMP, Use With Reference Number 25
    CLAMP, Use With Reference Number 25
  • 28
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
