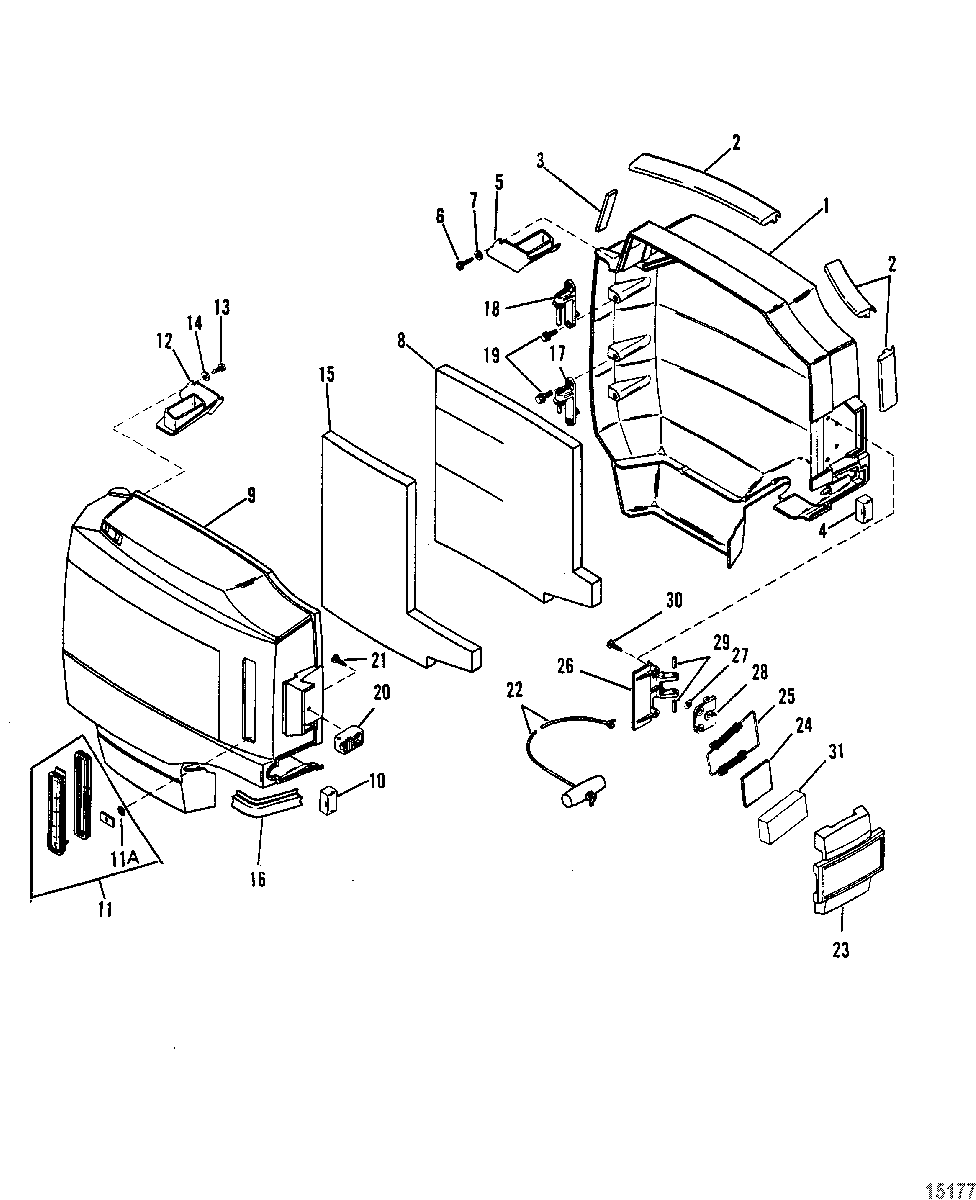

Cowls And Front Cover для Mariner - 115 (4 CYL.) 0C100000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    2188-9264A2 TOP COWL ASSEMBLY, Port, Black
    TOP COWL ASSEMBLY, Port, Black
  • 1
    2188-9264A3 TOP COWL ASSEMBLY, Port, Gray
    TOP COWL ASSEMBLY, Port, Gray
  • 1
    2188-9264A3 TOP COWL ASSEMBLY, Port, Oyster
    TOP COWL ASSEMBLY, Port, Oyster
  • 2
    429404 SEAL
    SEAL
  • 3
    12401 SEAL, Rear
    SEAL, Rear
  • 4
    90274 SEAL
    SEAL
  • 5
    42958 SHIELD
    SHIELD
  • 5
    429581 SHIELD OYSTER
    SHIELD OYSTER
  • 6
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 7
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 8
    112031 SOUND BLANKET
    SOUND BLANKET
  • 9
    2187-9263A1 TOP COWL ASSEMBLY, Starboard, Black
    TOP COWL ASSEMBLY, Starboard, Black
  • 9
    2187-9263A2 TOP COWL ASSEMBLY, Starboard, Gray
    TOP COWL ASSEMBLY, Starboard, Gray
  • 9
    2187-9263A2 TOP COWL ASSEMBLY, Starboard, Oyster
    TOP COWL ASSEMBLY, Starboard, Oyster
  • 10
    26-60297 SEAL
    SEAL
  • 11
    11206A1 OIL LEVEL GAUGE ASSEMBLY
    OIL LEVEL GAUGE ASSEMBLY
  • 11A
    11-113161 NUT
    NUT
  • 12
    42957 SHIELD
    SHIELD
  • 13
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 14
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 15
    112041 SOUND BLANKET
    SOUND BLANKET
  • 16
    193682 SEAL, (4.20 Inches), Black, Gray
    SEAL, (4.20 Inches), Black, Gray
  • 16
    193681 SEAL, (3.20 Inch), Oyster
    SEAL, (3.20 Inch), Oyster
  • 17
    879851 BRACKET, Lower
    BRACKET, Lower
  • 18
    879871 BRACKET, Upper
    BRACKET, Upper
  • 19
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 20
    120811 LATCH, Cowl
    LATCH, Cowl
  • 21
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 22
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, Manual Starting
    ROPE AND HANDLE KIT, Manual/Emergency Start, Manual Starting
  • 23
    11207A1 COVER ASSEMBLY, Black
    COVER ASSEMBLY, Black
  • 23
    11207A2 COVER ASSEMBLY, Gray
    COVER ASSEMBLY, Gray
  • 23
    11207A2 COVER ASSEMBLY, Oyster
    COVER ASSEMBLY, Oyster
  • 24
    12356 BUMPER
    BUMPER
  • 25
    24-17288 SPRING
    SPRING
  • 26
    43137A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 27
    11-434181 SPEED NUT
    SPEED NUT
  • 28
    15432 RETAINER
    RETAINER
  • 29
    17-43134 PIN
    PIN
  • 30
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 31
    134741 SOUND BLANKET
    SOUND BLANKET
  • -
    37-179061 EMBLEM, Back, Sea Ray
    EMBLEM, Back, Sea Ray
  • -
    38-17996 EMBLEM, Port/Starboard
    EMBLEM, Port/Starboard
