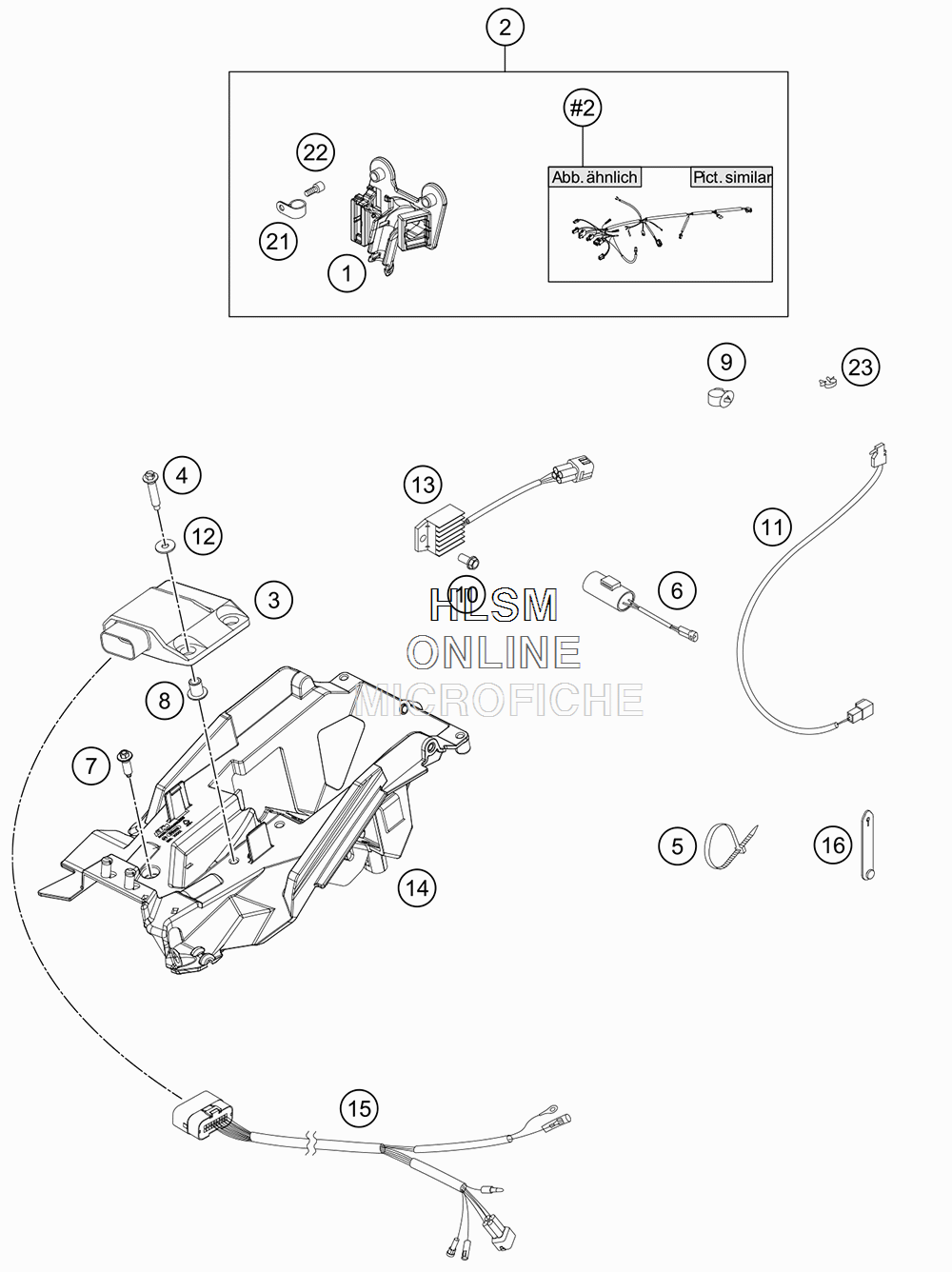

WIRING HARNESS для Ktm 150 XCW - 2019 года выпуска

№

Артикул

Название
1

77711083000 SUPPORT BRACKET

SUPPORT BRACKET

6 080 ₽
2

50311175000 WIRING HARNESS 125 EXC CPL. 14

WIRING HARNESS 125 EXC CPL. 14

29 850 ₽
3

50439231000 ELECTRONIC BOX 125 18

ELECTRONIC BOX 125 18

61 910 ₽
4

0017060305 SPECIAL SCREW K60X30 WS=6

SPECIAL SCREW K60X30 WS=6

290 ₽
5

44011076140 CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

100 ₽
5

44011076200 CABLE TIE 200/3,6MM BLACK

CABLE TIE 200/3,6MM BLACK

120 ₽
5

44011076305 CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

290 ₽
6

50311035000 CONDENSATOR 2200MF ADP-48 2000

CONDENSATOR 2200MF ADP-48 2000

20 530 ₽
7

0017060206 SCREW F. PLASTIC K60X20AL SW6

SCREW F. PLASTIC K60X20AL SW6

740 ₽
8

60308006000 COLLAR BUSHING 6,2X9,2X15X12,5

COLLAR BUSHING 6,2X9,2X15X12,5

570 ₽
9

58111076000 CABLE SUPPORT KHS NR.150-47610

CABLE SUPPORT KHS NR.150-47610

910 ₽
10

0023060123 COLLAR SCREW M6X12

COLLAR SCREW M6X12

290 ₽
11

50311050100 BRAKE LIGHT SWITCH FRONT

BRAKE LIGHT SWITCH FRONT

17 440 ₽
12

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
13

80011034000 VOLTAGE REGULATOR

VOLTAGE REGULATOR

19 800 ₽
14

79011055100 BATTERY BOX

BATTERY BOX

9 410 ₽
15

54839032200 WIRING HARNESS FOR CDI 2-ST.07

WIRING HARNESS FOR CDI 2-ST.07

18 170 ₽
16

60011093075 RUBBER CABLE TIE 75MM

RUBBER CABLE TIE 75MM

1 140 ₽
21

57013070000 PVC-CLAMP 7/16" HEYCO 3377

PVC-CLAMP 7/16" HEYCO 3377

240 ₽
22

0912050083 AH SCREW DIN 912 M 5X8

AH SCREW DIN 912 M 5X8

180 ₽
23

57013072000 WIRING HOLDER 12MM

WIRING HOLDER 12MM

970 ₽
23

57013072100 WIRING HOLDER 16MM

WIRING HOLDER 16MM

150 ₽
