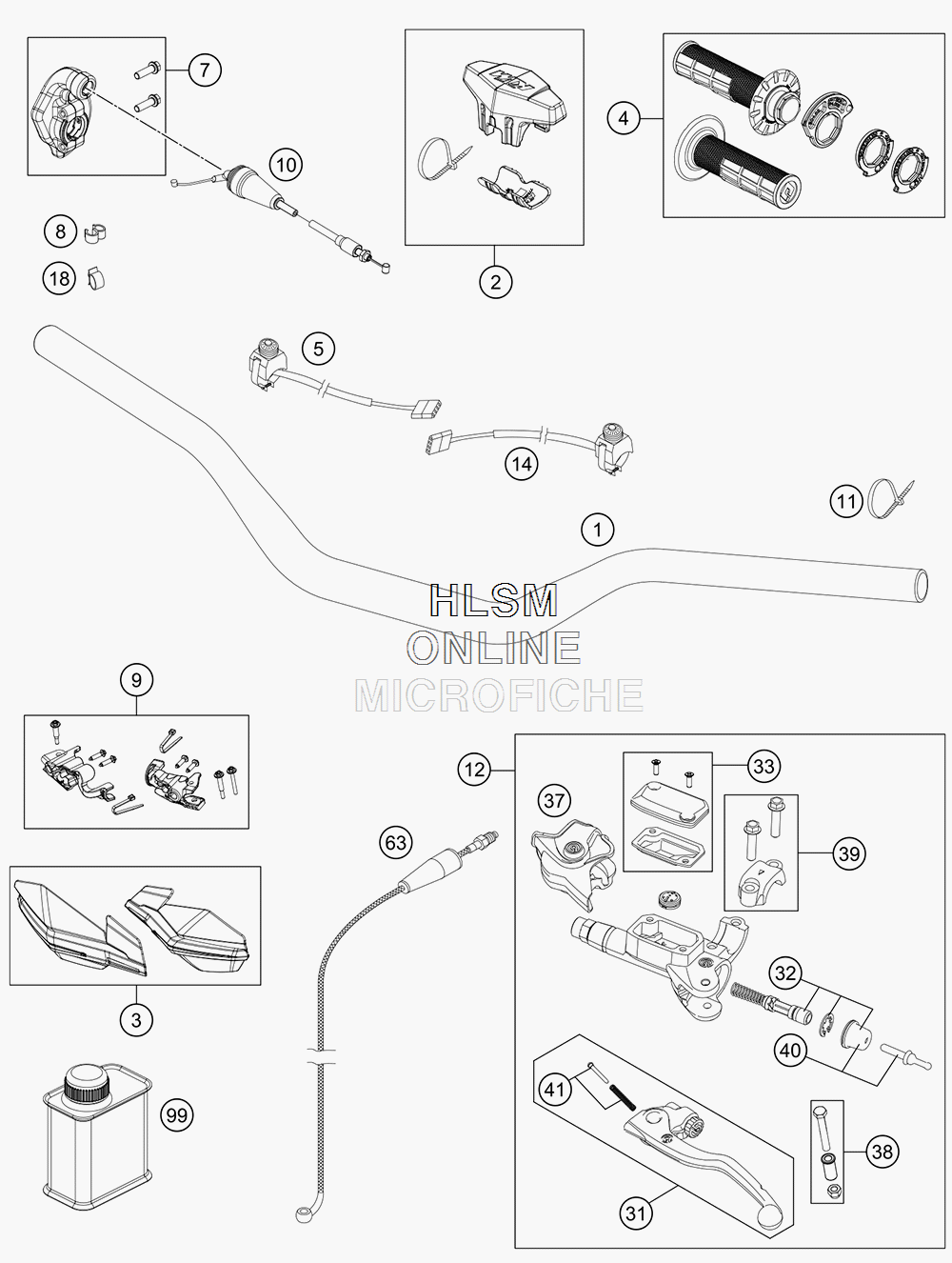

HANDLEBAR- CONTROLS для Ktm 150 XCW - 2019 года выпуска
-
№АртикулНазвание
-
17800200100030 HANDLEBARHANDLEBAR
-
277202002144 BAR PAD CPL.BAR PAD CPL.
-
379602182044EB HANDGUARDHANDGUARD
-
479002021100 GRIP SETGRIP SET
-
550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
750402010025 THROTTLE BODY CPL.THROTTLE BODY CPL.
-
860111094000 CLIP 5/7 MMCLIP 5/7 MM
-
979602084044 HANDGUARD ASSEMBLY KITHANDGUARD ASSEMBLY KIT
-
1050402091000 THROTTLE CABLETHROTTLE CABLE
-
1144011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1279202030044 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
1478111074000 STARTER BUTTON GREYSTARTER BUTTON GREY
-
1857013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
3154802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
3279202032044 REP. KIT PISTON 9MMREP. KIT PISTON 9MM
-
335480200310030 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
3754802037000 PROTECTION CAPPROTECTION CAP
-
3854802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
3954802005100 CLAMP CPL.CLAMP CPL.
-
4054802046000 PUSH ROD CPL.PUSH ROD CPL.
-
4154802052000 BOLT KPL.BOLT KPL.
-
6379232063000 CLUTCH PIPECLUTCH PIPE
-
9900062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
