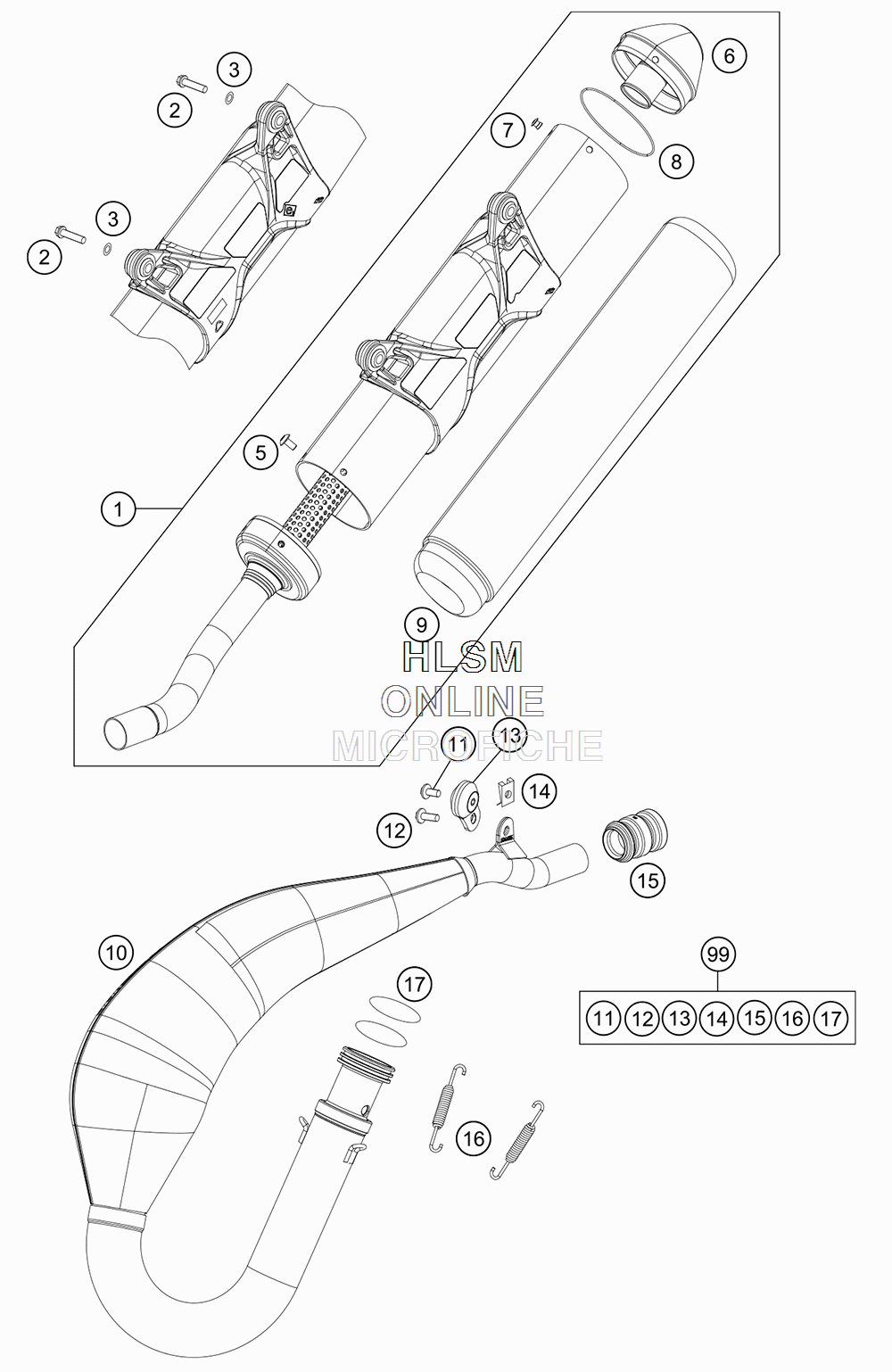

EXHAUST SYSTEM для Ktm 150 XCW - 2019 года выпуска
-
№АртикулНазвание
-
150405083000 SILENCERSILENCER
-
20025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
350233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
578105081010 SCREW TORX M5X10SCREW TORX M5X10
-
650305083260 END CAP CPL.END CAP CPL.
-
70011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
80770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
954805078265 ROCK WOOL 265GROCK WOOL 265G
-
1050405007100 EXHAUST PIPEEXHAUST PIPE
-
110024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
120024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
1350305012000 SWINGELEMENT FOR EXHAUST PIPESWINGELEMENT FOR EXHAUST PIPE
-
1454603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1554605057000 RUBBER SLEEVE D=21MM/23MM '93RUBBER SLEEVE D=21MM/23MM '93
-
1650305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
170770380030 O-RING 38,00X3,00 VITONO-RING 38,00X3,00 VITON
-
9900050000811 EXHAUST HARDWARE KITEXHAUST HARDWARE KIT
