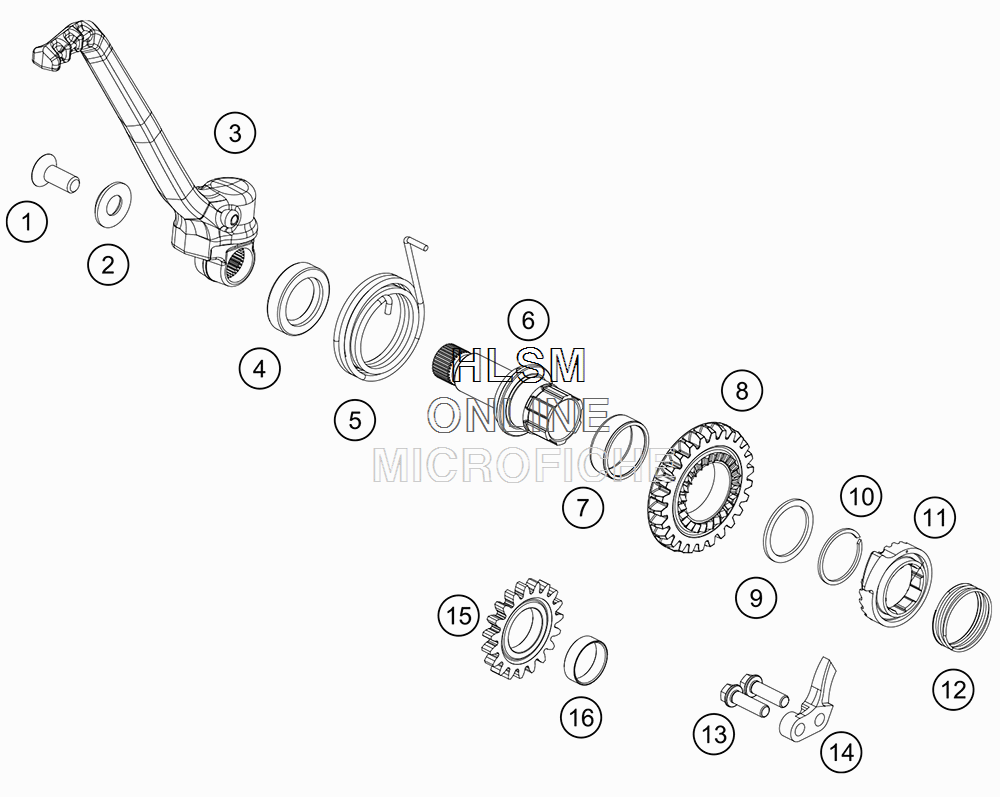

KICK STARTER для Ktm 150 XCW - 2019 года выпуска`
-
№АртикулНазвание
-
10019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
254633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
350433070044 KICKSTARTER CPL.KICKSTARTER CPL.
-
40760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
550433054200 KICK-STARTER SPRINGKICK-STARTER SPRING
-
679233050000 KICK STARTER SHAFTKICK STARTER SHAFT
-
70405252910 NEEDLE BEAR K 25X29X10NEEDLE BEAR K 25X29X10
-
850533051026 KICKSTART GEAR T26KICKSTART GEAR T26
-
954833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
100417025000 CIRCLIP SW25CIRCLIP SW25
-
1150433052000 KICK STARTER RATCHETKICK STARTER RATCHET
-
1258033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
13014580060206S CYL. SCREW ISO 14580 M6X20 SSCYL. SCREW ISO 14580 M6X20 SS
-
1459033069000 BUMP PARTBUMP PART
-
1550533053019 IDLER GEAR 19TIDLER GEAR 19T
-
1650433024050 BUSHING IDLER GEARBUSHING IDLER GEAR
