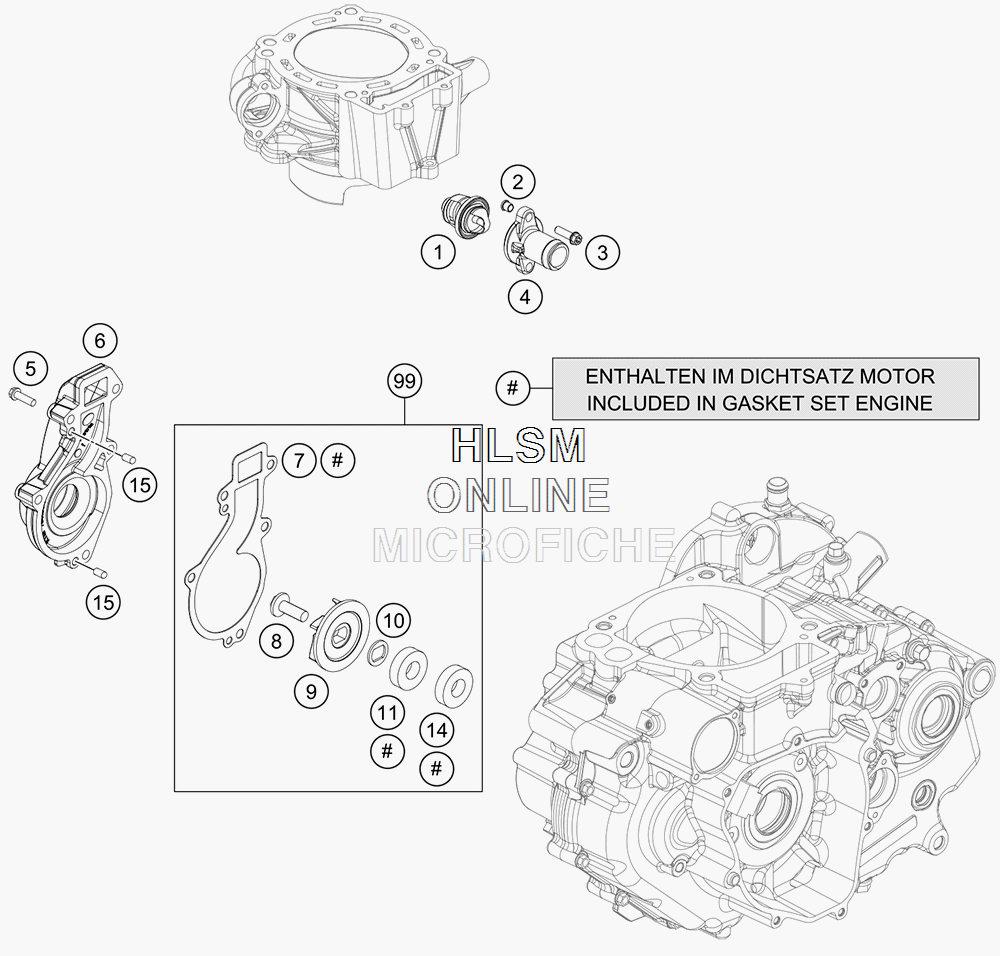

WATER PUMP для Ktm 690 ENDURO R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    75035017000 THERMOSTAT
    THERMOSTAT
  • 2
    60040027050 SUPPORTING SLEEVE
    SUPPORTING SLEEVE
  • 3
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 4
    75035016000 THERMOSTATCOVER
    THERMOSTATCOVER
  • 5
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 6
    7503505210033 WATERPUMP COVER
    WATERPUMP COVER
  • 7
    75035053000 WATER PUMP COVER GASKET
    WATER PUMP COVER GASKET
  • 8
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 9
    75035055000 WATER PUMP ROTOR
    WATER PUMP ROTOR
  • 10
    60035055150 FORM WASHER 16X1 NIRO
    FORM WASHER 16X1 NIRO
  • 11
    0760123071 SHAFT SEAL RING. 12X30X7 VITON
    SHAFT SEAL RING. 12X30X7 VITON
  • 14
    0760123073 SHAFT SEAL RING 12X30X7 PTFE
    SHAFT SEAL RING 12X30X7 PTFE
  • 15
    0474050100 GROOVED PIN DIN1474 5X10
    GROOVED PIN DIN1474 5X10
  • 99
    75035055010 WATER PUMP REP. KIT 690
    WATER PUMP REP. KIT 690
