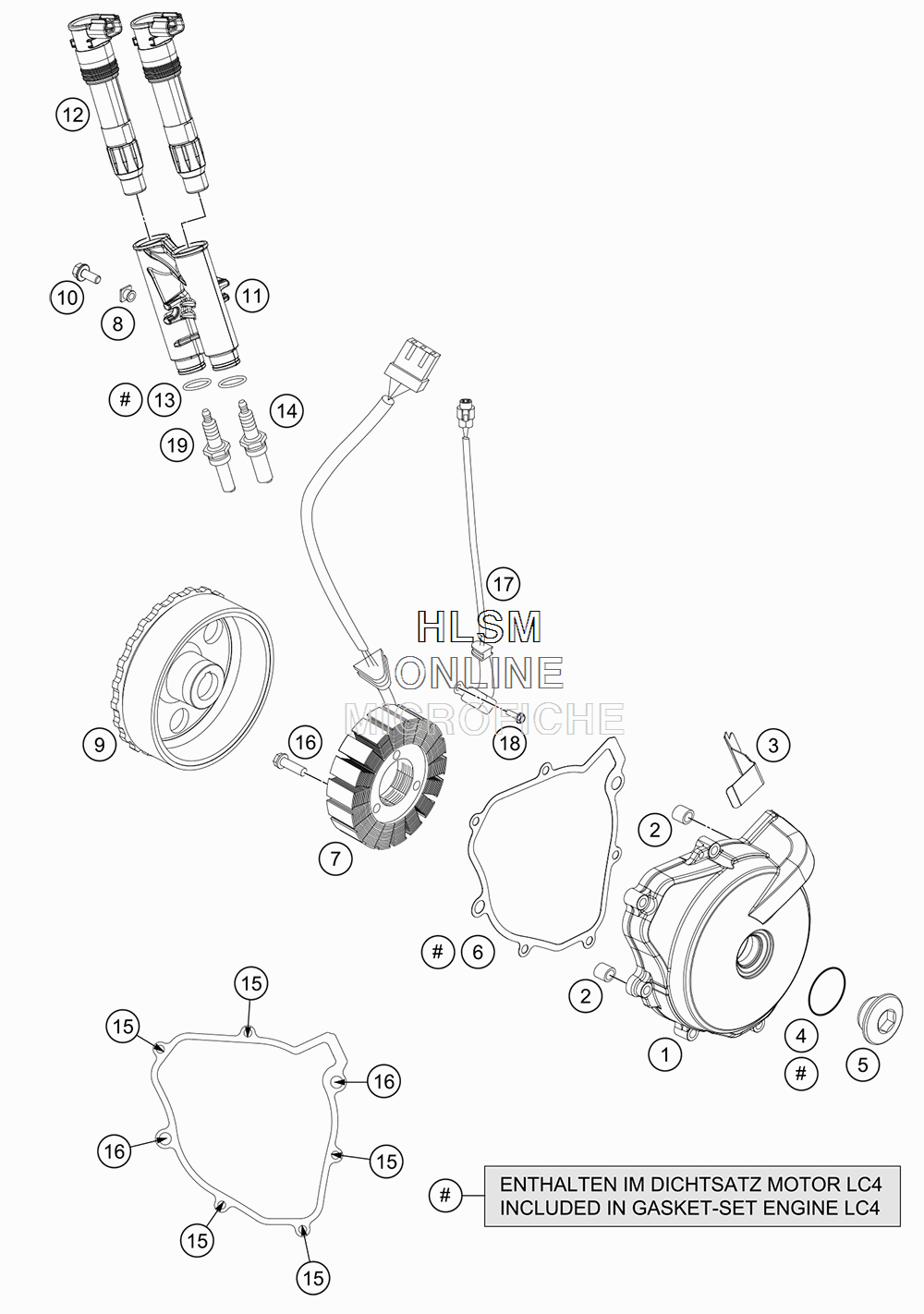

IGNITION SYSTEM для Ktm 690 ENDURO R - 2018 года выпуска
-
№АртикулНазвание
-
17503000210041 IGNITION COVERIGNITION COVER
-
249030090100 DOWEL 9,8 X7X10DOWEL 9,8 X7X10
-
360039040020 CABLE SUPPORT GENERATORCABLE SUPPORT GENERATOR
-
407700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
56003009400030 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
675030040000 IGNITI.COVER GASKETIGNITI.COVER GASKET
-
775039004100 STATORSTATOR
-
876036075050 INSETINSET
-
975039005200 ROTORROTOR
-
100025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
1176036075000 STICK COIL HOLDERSTICK COIL HOLDER
-
1276039006000 STICK COILSTICK COIL
-
130770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
1460139093000 SPARK PLUG M12X1,25 "8"SPARK PLUG M12X1,25 "8"
-
150025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
160025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1775039034000 PULSER COILPULSER COIL
-
1859009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
1969139093000 SPARK PLUG NGK "LMAR7A-9"SPARK PLUG NGK "LMAR7A-9"
