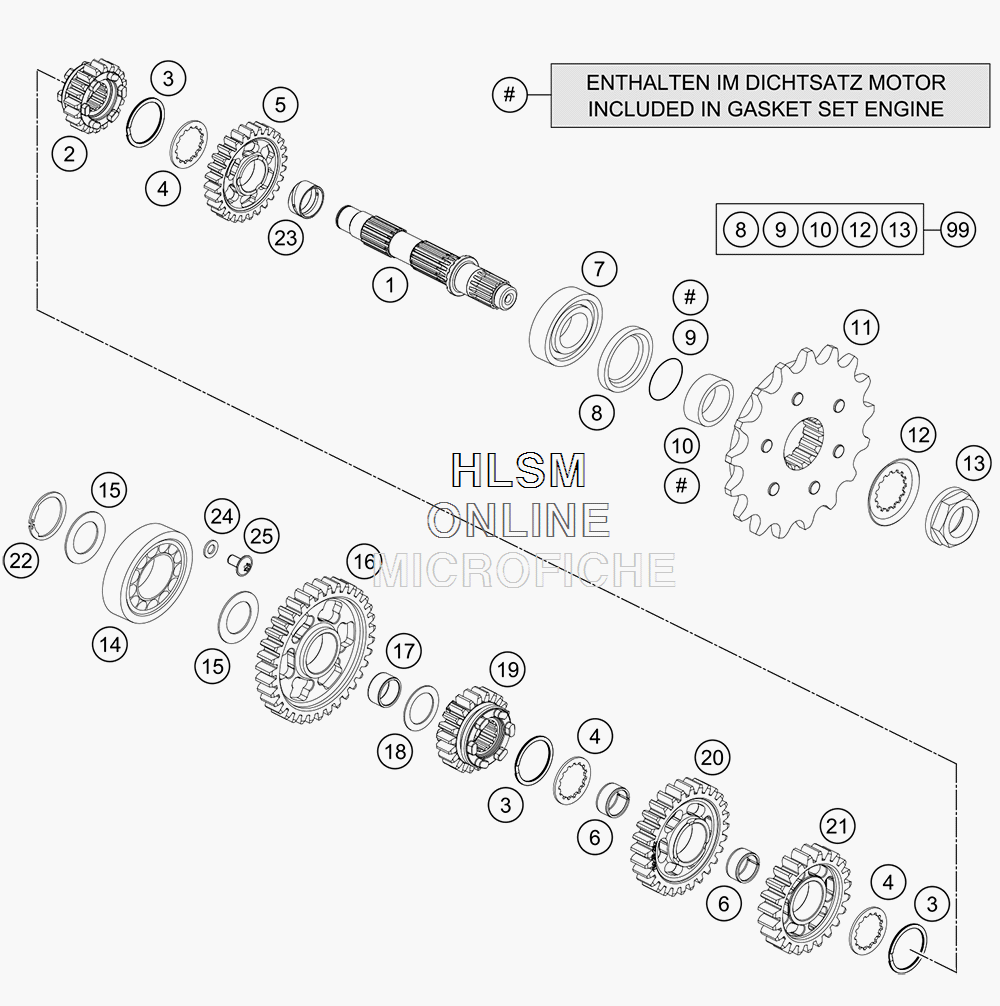

TRANSMISSION - COUNTERSHAFT для Ktm 690 ENDURO R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    76233010000 COUNTER SHAFT
    COUNTER SHAFT
  • 2
    75033016000 SLIDING GEAR 6TH G.
    SLIDING GEAR 6TH G.
  • 3
    0471025000 CIRCLIP D25
    CIRCLIP D25
  • 4
    56533016300 STOP DISK 22,7 X 32 X 1,5
    STOP DISK 22,7 X 32 X 1,5
  • 5
    76233012100 IDLER 2. GEAR
    IDLER 2. GEAR
  • 6
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 7
    49030023100 CYL.ROLLER BEARING NJ205 C4
    CYL.ROLLER BEARING NJ205 C4
  • 8
    0760324773 SHAFT SEAL R. 32X47X7BSL VITON
    SHAFT SEAL R. 32X47X7BSL VITON
  • 9
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 10
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 11
    58033029115 ENGINE SPROCKET 15 T DAMPED
    ENGINE SPROCKET 15 T DAMPED
  • 11
    58033029116 ENGINE SPROCKET 16 T DAMPED
    ENGINE SPROCKET 16 T DAMPED
  • 11
    58033029117 ENGINE SPROCKET 17 T DAMPED
    ENGINE SPROCKET 17 T DAMPED
  • 12
    51033031000 LOCK WASHER
    LOCK WASHER
  • 13
    58033132200 SPROCKET NUT M20X1.5
    SPROCKET NUT M20X1.5
  • 14
    0625060044 BALL BEARING 6004 DDUN C4
    BALL BEARING 6004 DDUN C4
  • 15
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 16
    75033011000 IDLER GEAR 1ST GEAR
    IDLER GEAR 1ST GEAR
  • 17
    56533098000 NEEDLE BEARING K22X26X13H
    NEEDLE BEARING K22X26X13H
  • 18
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 19
    75033015000 5TH GEAR COUNTERSHAFT
    5TH GEAR COUNTERSHAFT
  • 20
    75033013000 IDLER GEAR 3.G
    IDLER GEAR 3.G
  • 21
    75033014000 IDLER GEAR 4.G
    IDLER GEAR 4.G
  • 22
    0471200120 CIRCLIP DIN471 20X1,2
    CIRCLIP DIN471 20X1,2
  • 23
    76233022200 BUSHING 25X28X13
    BUSHING 25X28X13
  • 24
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 25
    073800501002 PAN HEAD SCREW M5X10 TX25
    PAN HEAD SCREW M5X10 TX25
  • 99
    00050000946 COUNTER SHAFT REP.KIT 690
    COUNTER SHAFT REP.KIT 690
