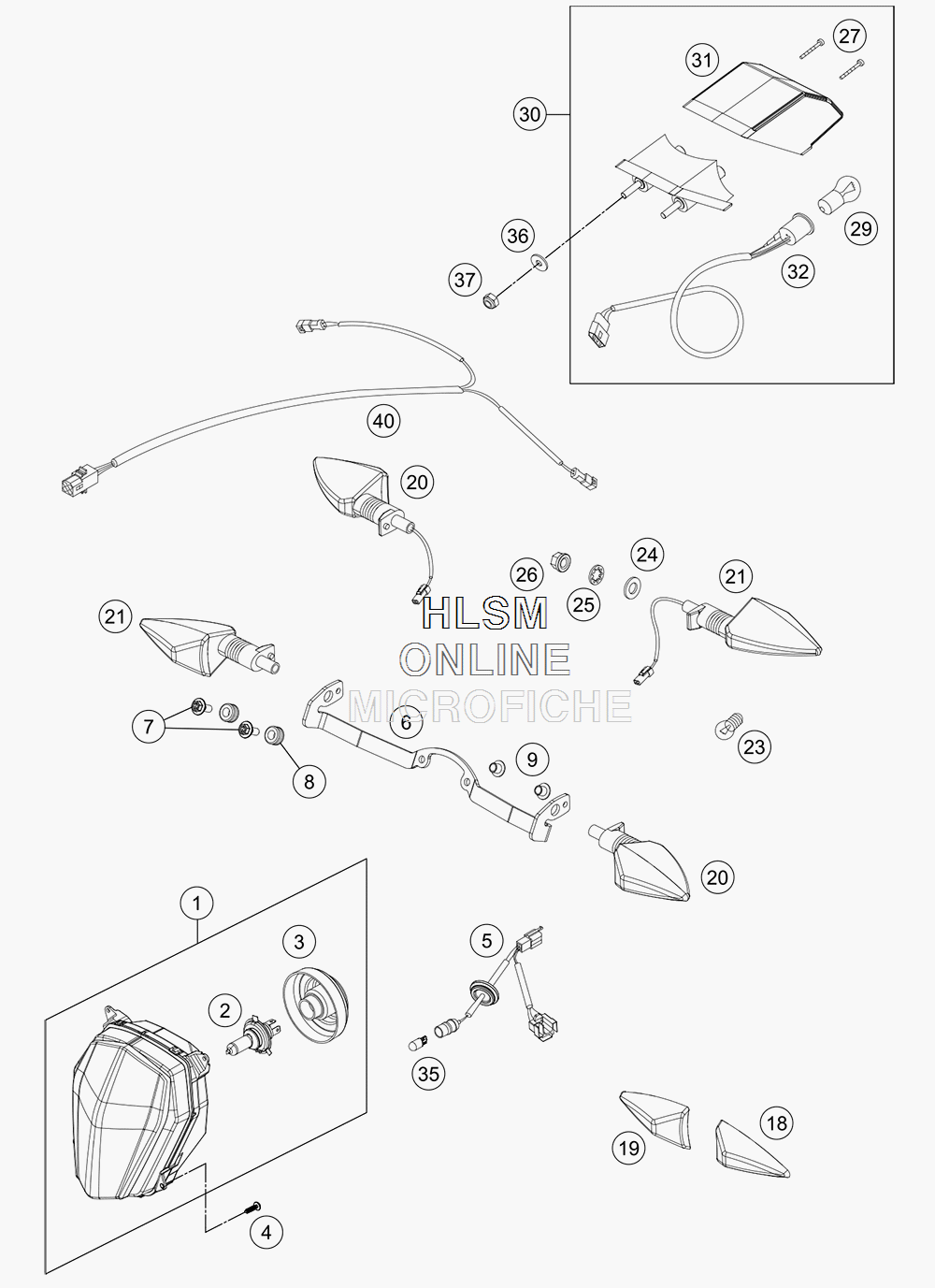

LIGHTING SYSTEM для Ktm 690 ENDURO R - 2018 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    76514001000 HEAD LIGHT
    HEAD LIGHT
  • 2
    57111038000 BULB H4 12V 60/55W (P43T)
    BULB H4 12V 60/55W (P43T)
  • 3
    76514001050 RUBBER CAP FOR HEAD LIGHT
    RUBBER CAP FOR HEAD LIGHT
  • 4
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 5
    76511079000 WIRING HARNESS HEAD LIGHT
    WIRING HARNESS HEAD LIGHT
  • 6
    76514260000 FLASHER RETAINING PLATE
    FLASHER RETAINING PLATE
  • 7
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 8
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 9
    75014010050 COLLAR BUSHING 6,1X8,1X14X8 07
    COLLAR BUSHING 6,1X8,1X14X8 07
  • 18
    78114027000 FLASHER LENS FRONT L/S REAR R/S
    FLASHER LENS FRONT L/S REAR R/S
  • 19
    78114028000 FLASHER LENS FRONT L/S REAR L/S TRANSP.
    FLASHER LENS FRONT L/S REAR L/S TRANSP.
  • 20
    78114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 21
    78114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 23
    60114027000 BULB 12V ORANGE
    BULB 12V ORANGE
  • 24
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 24
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 25
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 26
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 27
    0981350323 SHEET MET. SCR. DIN7981 3,5X32
    SHEET MET. SCR. DIN7981 3,5X32
  • 29
    58414042000 BULB 12V 21/5W (BAY15S) REINFO.
    BULB 12V 21/5W (BAY15S) REINFO.
  • 30
    50314040200 REAR LIGHT CPL. EXC
    REAR LIGHT CPL. EXC
  • 31
    50314041100 REAR LIGHT LENS
    REAR LIGHT LENS
  • 32
    50311076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 35
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 36
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 37
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 40
    76511076000 WIRING HARNESS FLASHER REAR
    WIRING HARNESS FLASHER REAR
