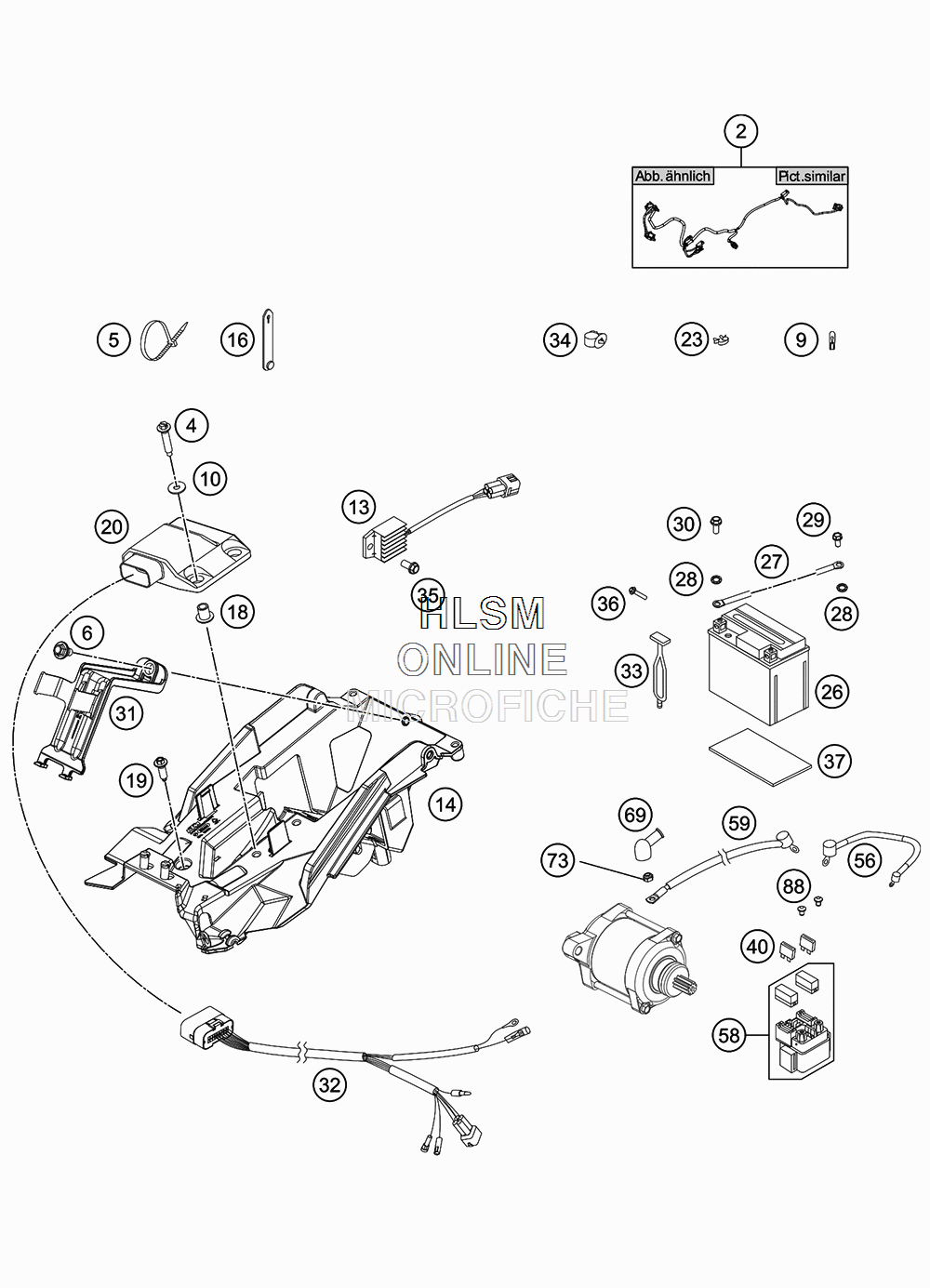

WIRING HARNESS для Ktm 300 XC-WSD - 2018 года выпуска

  • №
    Артикул
    Название
  • 2
    54811075800 WIRING HARNESS
    WIRING HARNESS
  • 4
    0017060305 SPECIAL SCREW K60X30 WS=6
    SPECIAL SCREW K60X30 WS=6
  • 5
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 5
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 5
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 6
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 9
    49111425200 BULB 12V 2,3W (W2X4,6D)
    BULB 12V 2,3W (W2X4,6D)
  • 10
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 13
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 14
    79011055100 BATTERY BOX
    BATTERY BOX
  • 16
    60011093060 RUBBER CABLE TIE 60MM
    RUBBER CABLE TIE 60MM
  • 18
    60308006000 COLLAR BUSHING 6,2X9,2X15X12,5
    COLLAR BUSHING 6,2X9,2X15X12,5
  • 19
    0017060206 SCREW F. PLASTIC K60X20AL
    SCREW F. PLASTIC K60X20AL
  • 20
    55439331000 DASH BOARD BOX
    DASH BOARD BOX
  • 23
    57013072000 WIRING HOLDER 12MM
    WIRING HOLDER 12MM
  • 23
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 26
    77311953000 LITHIUM ION BATTERY 5S
    LITHIUM ION BATTERY 5S
  • 27
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 28
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 29
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 30
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 31
    79011056100 BATTERY BOX SUPPORT
    BATTERY BOX SUPPORT
  • 32
    55439032000 HARNESS CDI BOX 2T 2017
    HARNESS CDI BOX 2T 2017
  • 33
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 34
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 35
    0023060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
  • 36
    0017060205 SCREW FOR PLASTIC K60X20
    SCREW FOR PLASTIC K60X20
  • 37
    59003001099 METAMOLL 90X45X3MM
    METAMOLL 90X45X3MM
  • 40
    58011109110 FUSE 10 A
    FUSE 10 A
  • 56
    58711086000 WIRING HARNESS BATTERY DUKE'99
    WIRING HARNESS BATTERY DUKE'99
  • 58
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 59
    55111059000 STARTER CABLE 1100MM
    STARTER CABLE 1100MM
  • 69
    77240099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 73
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 88
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
