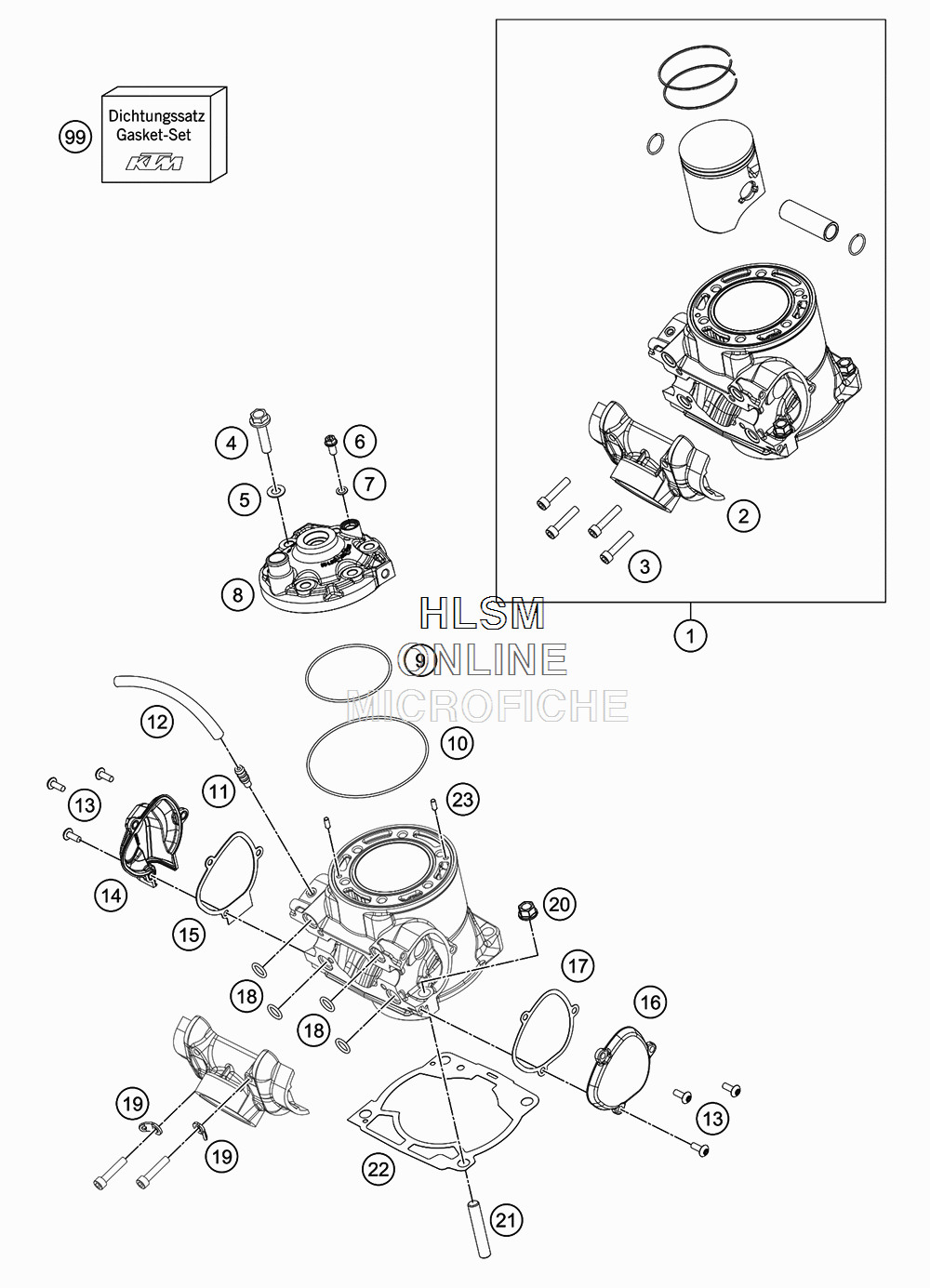

CYLINDER CYLINDER HEAD для Ktm 300 XC-WSD - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    55630038000 CYLINDER W/ PISTON CPL.
    CYLINDER W/ PISTON CPL.
  • 2
    55437001000 CONNECTION FLANGE
    CONNECTION FLANGE
  • 3
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 4
    54830079000 COLLAR SCREW M 8X35
    COLLAR SCREW M 8X35
  • 5
    56530080000 CU-SEAL RING 8 X 16 X 1
    CU-SEAL RING 8 X 16 X 1
  • 6
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 7
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 8
    55630206000 CYLINDER HEAD 300 XC
    CYLINDER HEAD 300 XC
  • 9
    0770078020 O-RING 78,00X2,00 VIT. BLACK
    O-RING 78,00X2,00 VIT. BLACK
  • 10
    0770105020 O-RING 105,00X2,00
    O-RING 105,00X2,00
  • 11
    58336020090 VACUUM CONNECTION M 6X1
    VACUUM CONNECTION M 6X1
  • 12
    50335030001 PVC-HOSE 6X9
    PVC-HOSE 6X9
  • 13
    58605083014 SCREW M5X14 TORX 25
    SCREW M5X14 TORX 25
  • 14
    5483700700015 CONTROL COVER R/S
    CONTROL COVER R/S
  • 15
    54837008000 GASKET FOR CONTROL COVER R/S
    GASKET FOR CONTROL COVER R/S
  • 16
    5483700500015 CONTROL COVER L/S
    CONTROL COVER L/S
  • 17
    54837006000 GASKET FOR CONTROL COVER L/S
    GASKET FOR CONTROL COVER L/S
  • 18
    0770116241 O-RING 11,3 X2,4 SILICON
    O-RING 11,3 X2,4 SILICON
  • 19
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 20
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 21
    0835100351S STUD SCREW DIN0835-M10X35
    STUD SCREW DIN0835-M10X35
  • 22
    55430030025 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030020 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030040 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030050 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030075 CYLINDER FOOT GASKET
    CYLINDER FOOT GASKET
  • 23
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 99
    55430097000 GASKET SET PISTON 250/300
    GASKET SET PISTON 250/300
