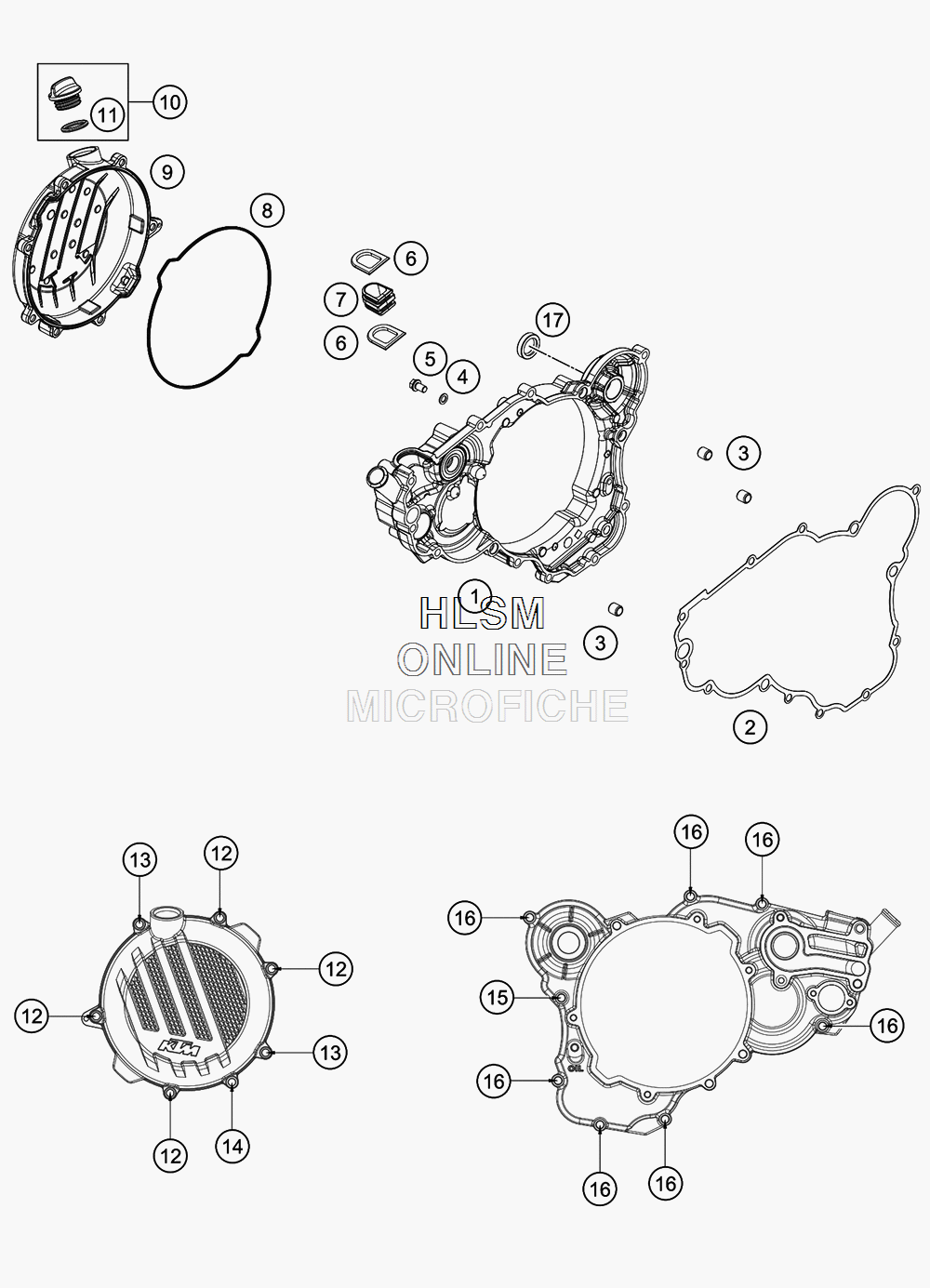

CLUTCH COVER для Ktm 300 XC-WSD - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    55430001044 INNER CLUTCH COVER CPL.
    INNER CLUTCH COVER CPL.
  • 2
    55430025000 CLUTCH COVER GASKET INSIDE
    CLUTCH COVER GASKET INSIDE
  • 3
    49030090100 DOWEL 9,8 X7X10
    DOWEL 9,8 X7X10
  • 4
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 5
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 6
    54637107000 SEALING ELEMENT BOTTOM
    SEALING ELEMENT BOTTOM
  • 7
    54837091100 SEALING CARRIER
    SEALING CARRIER
  • 8
    55430027000 CLUTCH COVER GASKET OUTSIDE
    CLUTCH COVER GASKET OUTSIDE
  • 9
    5543002600015 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 10
    79430020033 OIL FILLER CAP M24X3 WITH O-R
    OIL FILLER CAP M24X3 WITH O-R
  • 11
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 12
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 13
    0025060606 HH COLLAR SCREW M6X60
    HH COLLAR SCREW M6X60
  • 14
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
  • 15
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 16
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 17
    0760193070 SHAFT SEAL RING 19X30X7 B
    SHAFT SEAL RING 19X30X7 B
