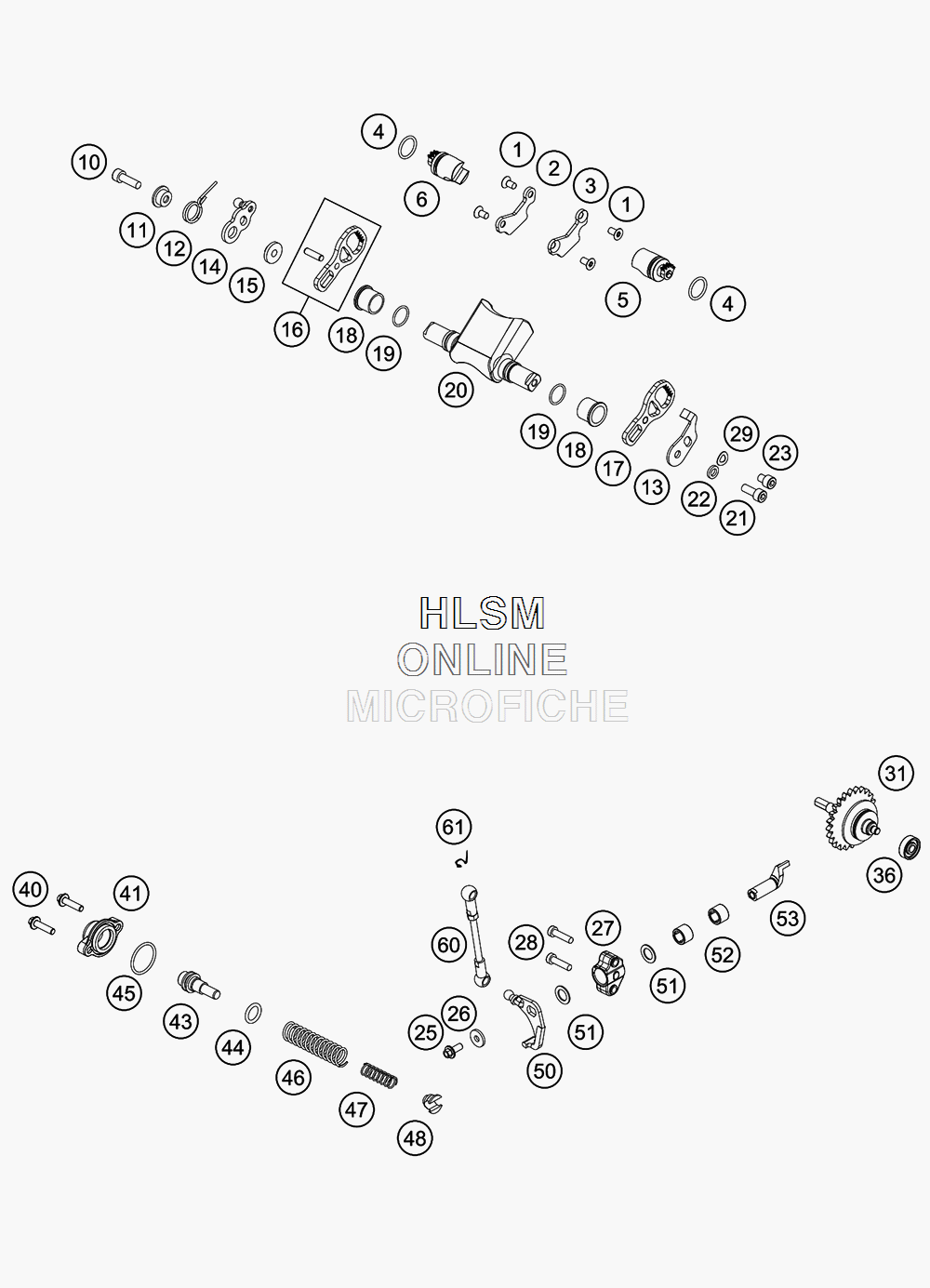

EXHAUST CONTROL для Ktm 300 XC-WSD - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0019050106S INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 2
    54837362000 RETAINING PLATE 300 R/S
    RETAINING PLATE 300 R/S
  • 3
    54837363000 RETAINING PLATE 300 L/S
    RETAINING PLATE 300 L/S
  • 4
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 5
    55437161044 CONTROL ROLLER LEFT CPL.
    CONTROL ROLLER LEFT CPL.
  • 6
    55437162044 CONTROL ROLLER RIGHT CPL.
    CONTROL ROLLER RIGHT CPL.
  • 10
    0912060203 AH SCREW DIN0912-M 6X20
    AH SCREW DIN0912-M 6X20
  • 11
    54637067000 SPRING SLEEVE
    SPRING SLEEVE
  • 12
    54637066000 OVERLOAD SPRING
    OVERLOAD SPRING
  • 13
    54637085300 RETAIN.PLATE CONTROL FLAP '92
    RETAIN.PLATE CONTROL FLAP '92
  • 14
    54637065000 CONTROL LEVER WITH BALL TYPE
    CONTROL LEVER WITH BALL TYPE
  • 15
    54637068100 BUSHING SLEEVE
    BUSHING SLEEVE
  • 16
    54837364044 GEAR SEGMENT RIGHT CPL.
    GEAR SEGMENT RIGHT CPL.
  • 17
    54837364050 GEAR SEGMENT 300 L/S
    GEAR SEGMENT 300 L/S
  • 18
    50437023000 BEARING SLEEVE F. CONTROL FLAP
    BEARING SLEEVE F. CONTROL FLAP
  • 19
    0770150151 O-RING 15,00X1,50 VITON
    O-RING 15,00X1,50 VITON
  • 20
    55637120000 CONTROL FLAP 300
    CONTROL FLAP 300
  • 21
    0912060163 AH SCREW DIN0912-M 6X16
    AH SCREW DIN0912-M 6X16
  • 22
    54637056100 WASHER 6,5X11X2
    WASHER 6,5X11X2
  • 23
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 25
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 26
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 27
    55437058000 BEARING SUPPOR T
    BEARING SUPPOR T
  • 28
    0025050256 HH COLLAR SCREW M5X25 ISA30
    HH COLLAR SCREW M5X25 ISA30
  • 29
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 31
    55437050044 CENTRIFUGAL FORCE REGULA TOR
    CENTRIFUGAL FORCE REGULA TOR
  • 36
    54637098100 BALL BEARING 626LLBC3/5K
    BALL BEARING 626LLBC3/5K
  • 40
    0014050203 HH COLLAR SCREW M 5X20
    HH COLLAR SCREW M 5X20
  • 41
    54637070100 COVER LID
    COVER LID
  • 43
    54837075000 SPRING GUIDE 250/300
    SPRING GUIDE 250/300
  • 44
    0770021120 O-RING 12,37X2,62 NBR70
    O-RING 12,37X2,62 NBR70
  • 45
    0770240020 O-RING 24,00X2,00 NBR70
    O-RING 24,00X2,00 NBR70
  • 46
    54837069000 ADJUST. SPRING
    ADJUST. SPRING
  • 47
    54837072000 AUXILIARY SPRING SOFT, RED
    AUXILIARY SPRING SOFT, RED
  • 47
    54637072300 AUXILIARY SPRING MID., YELLOW
    AUXILIARY SPRING MID., YELLOW
  • 47
    54837072100 AUXILIARY SPRING HARD, GREEN
    AUXILIARY SPRING HARD, GREEN
  • 48
    54637071200 SPRING INSERT
    SPRING INSERT
  • 50
    47237056000 ANGLE LEVER
    ANGLE LEVER
  • 51
    0988101610 SHIM WASHER DIN988 10X16X1
    SHIM WASHER DIN988 10X16X1
  • 52
    0618101410 NEEDLE SLEEVE HK 1010 10/14/10
    NEEDLE SLEEVE HK 1010 10/14/10
  • 53
    55437057100 ADJUSTING LEVER 250/300
    ADJUSTING LEVER 250/300
  • 60
    55437095044 CONNECTING ROD CPL.
    CONNECTING ROD CPL.
  • 61
    50237195055 SECURING DIN-71805-S-8
    SECURING DIN-71805-S-8
