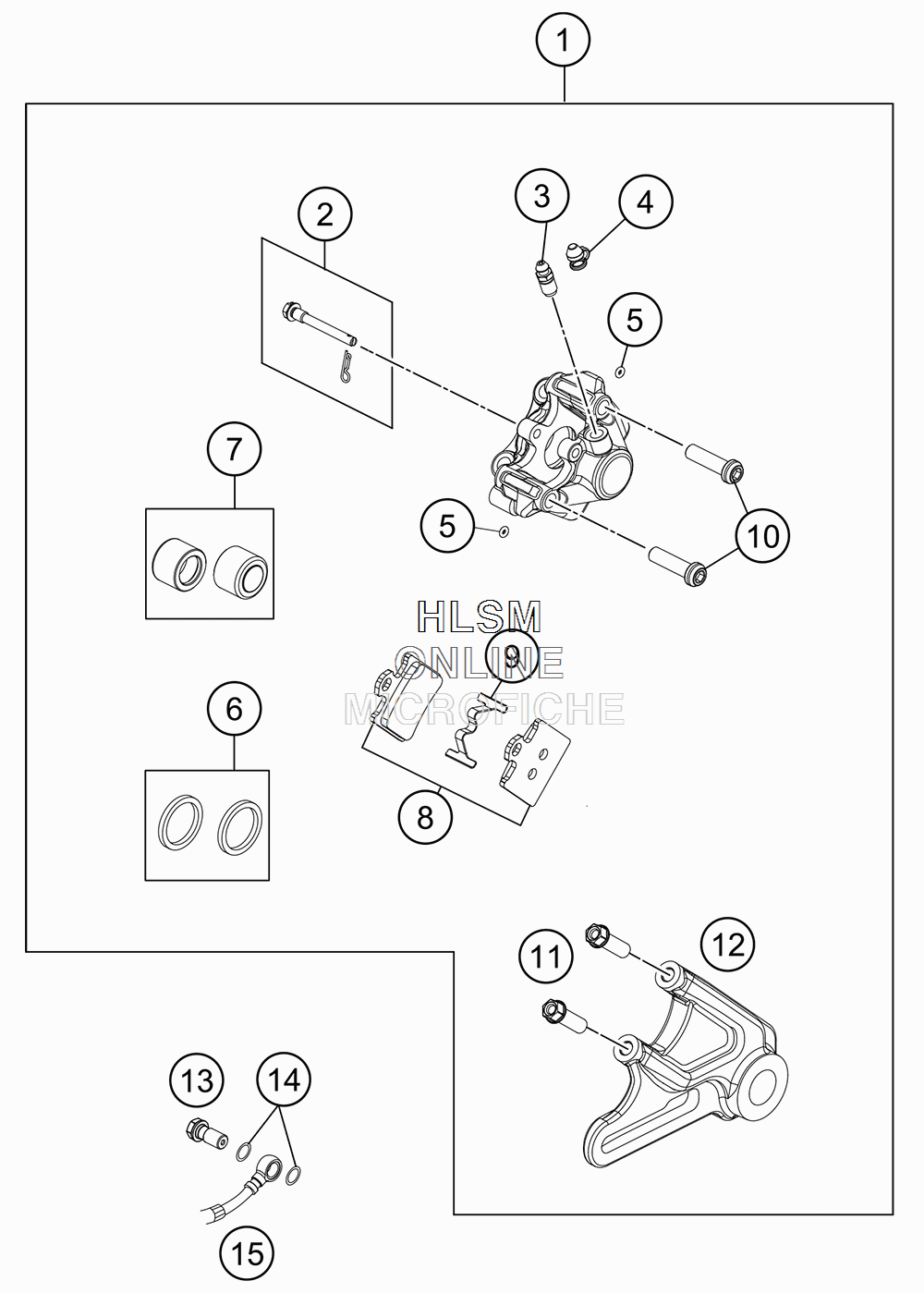

REAR BRAKE CALIPER для Ktm 250 FREERIDE - 2018 года выпуска
-
№АртикулНазвание
-
147213080000 CALIPER REAR CPL. 85 TC/SXCALIPER REAR CPL. 85 TC/SX
-
247013092000 SPECIAL SCREW WITH SPLINT PINSPECIAL SCREW WITH SPLINT PIN
-
347013085000 BLEEDER SCREW M8X1BLEEDER SCREW M8X1
-
447013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
507700257178 O-RING 2,57X1,78O-RING 2,57X1,78
-
647213081000 REPAIR KIT SEAL RING 22MMREPAIR KIT SEAL RING 22MM
-
747213083000 REPAIR KIT BRAKEPISTON 22MMREPAIR KIT BRAKEPISTON 22MM
-
847013090300 BRAKE PADS REAR 85 SX 2011BRAKE PADS REAR 85 SX 2011
-
947013018000 RETAINING SPRING 85 SX 2011RETAINING SPRING 85 SX 2011
-
1047013084000 SPECIAL SCREW CALIPER M8X30SPECIAL SCREW CALIPER M8X30
-
110025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
1247013075000 BRAKE CALIPER SUPPORT CPL.BRAKE CALIPER SUPPORT CPL.
-
1347013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
140770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
1572013071100 REAR BRAKE HOSE L=540MM DOTREAR BRAKE HOSE L=540MM DOT
