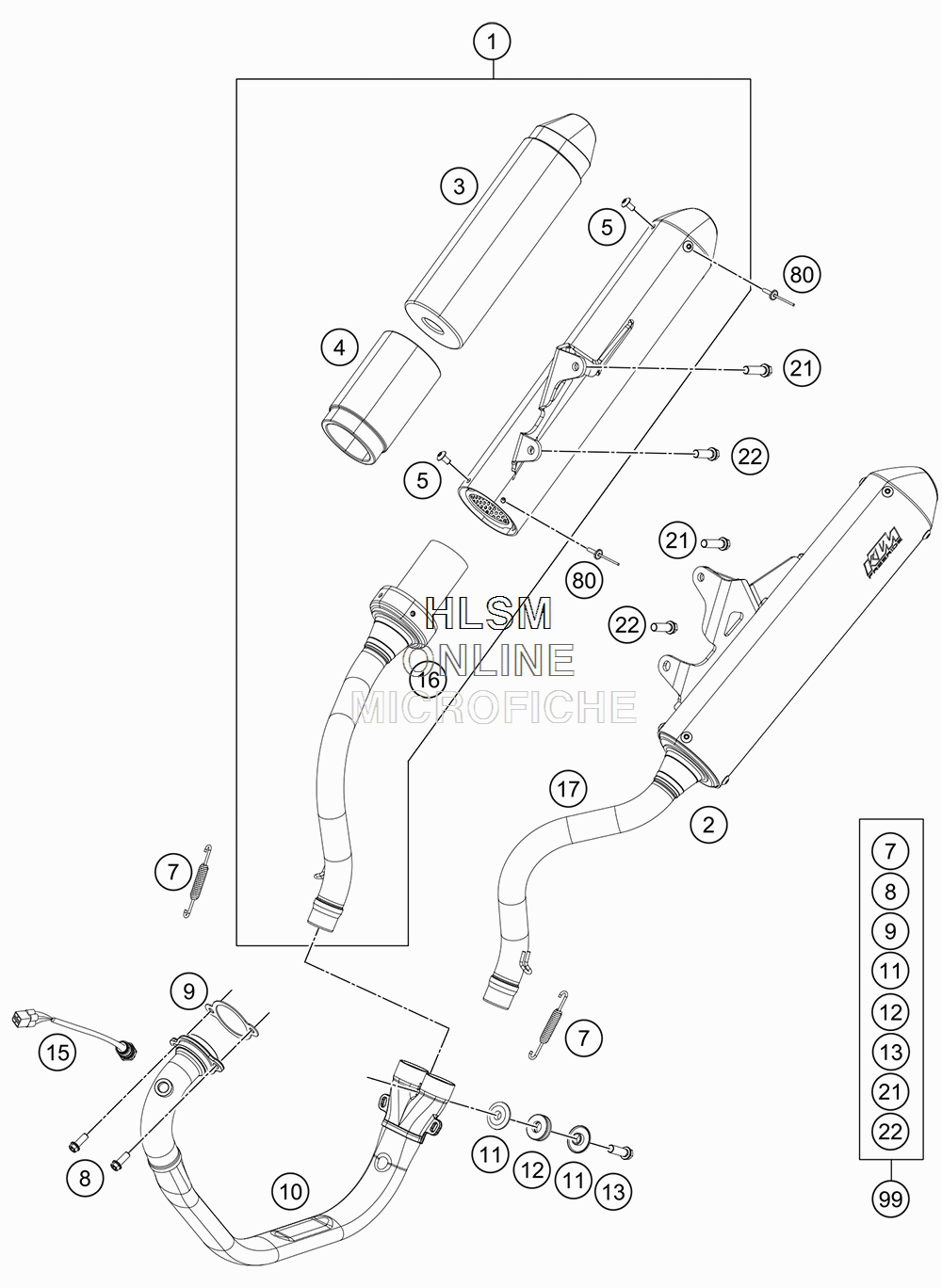

EXHAUST SYSTEM для Ktm 250 FREERIDE - 2018 года выпуска
-
№АртикулНазвание
-
172105081000 MUFFLER RIGHTMUFFLER RIGHT
-
272105080000 MUFFLER LEFTMUFFLER LEFT
-
372005078200 ROCKWOOL PREFORMED REARROCKWOOL PREFORMED REAR
-
472005078070 ROCKWOOL PREFORMED FRONTROCKWOOL PREFORMED FRONT
-
578105081010 SCREW TORX M5X10SCREW TORX M5X10
-
750305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
80025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
977236041000 GASKET EXHAUST FLANGEGASKET EXHAUST FLANGE
-
1072105007000 MANIFOLD CPL.MANIFOLD CPL.
-
1159405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
-
1277205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
130025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
1575041090200 LAMBDA SENSORLAMBDA SENSOR
-
1672105081050 CONNECTION CAP RIGHT CPL.CONNECTION CAP RIGHT CPL.
-
1772105080050 CONNECTION CAP LEFT CPL.CONNECTION CAP LEFT CPL.
-
210025080256S HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
220025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
800011401200 DUMMY RIVET 4,0X12 ALUDUMMY RIVET 4,0X12 ALU
-
9900050000816 EXHAUST P AR TS KITEXHAUST P AR TS KIT
