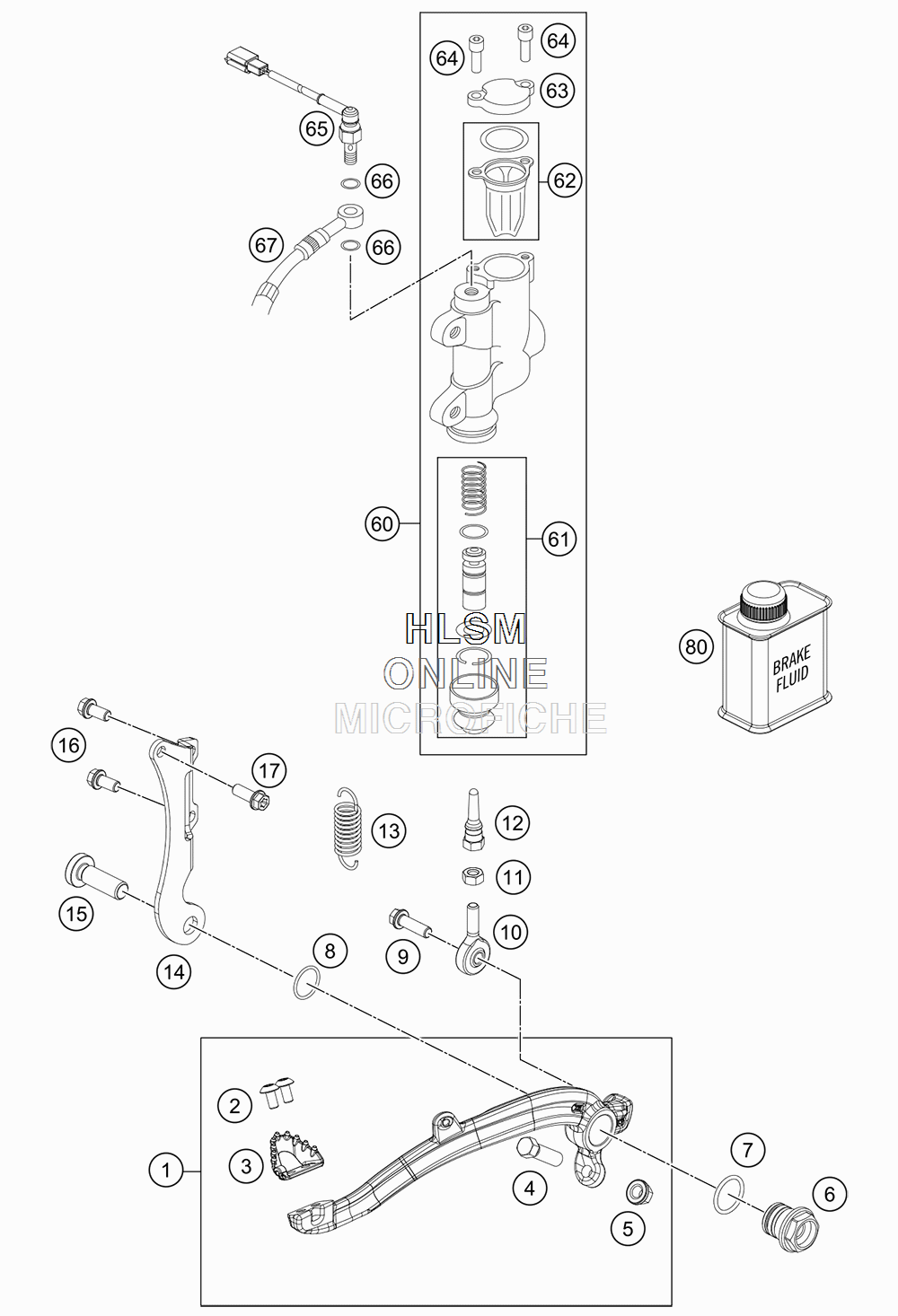

REAR BRAKE CONTROL для Ktm 250 FREERIDE - 2018 года выпуска
-
№АртикулНазвание
-
172113050044 REAR BRAKE LEVER CPL.REAR BRAKE LEVER CPL.
-
258605083010 SCREW TORX M5X10SCREW TORX M5X10
-
355413051000 STEP PLATE FOOT BRAKE LEVERSTEP PLATE FOOT BRAKE LEVER
-
459001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
546030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
672013053000 NUT FOOT BRAKE LEVER SW19NUT FOOT BRAKE LEVER SW19
-
70770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
80770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
90025060206S HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1054813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
110934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1246213056000 PUSH RODPUSH ROD
-
1354603062100 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
1472013065000 SUP. PLATE BRAKECYL. REARSUP. PLATE BRAKECYL. REAR
-
150035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
160025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
1759009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
604701306030001S FOOT BRAKE CYL. REAR CPL. D=12FOOT BRAKE CYL. REAR CPL. D=12
-
6147013061100 REP. SET PISTON REAR D=12 2004REP. SET PISTON REAR D=12 2004
-
6247013063000 GASKET CYLINDER COVER REARGASKET CYLINDER COVER REAR
-
6347013062000 CYLINDER COVER REAR 85 SXCYLINDER COVER REAR 85 SX
-
640912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
6572011051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
660770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
6772013071100 REAR BRAKE HOSE L=540MM DOTREAR BRAKE HOSE L=540MM DOT
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
