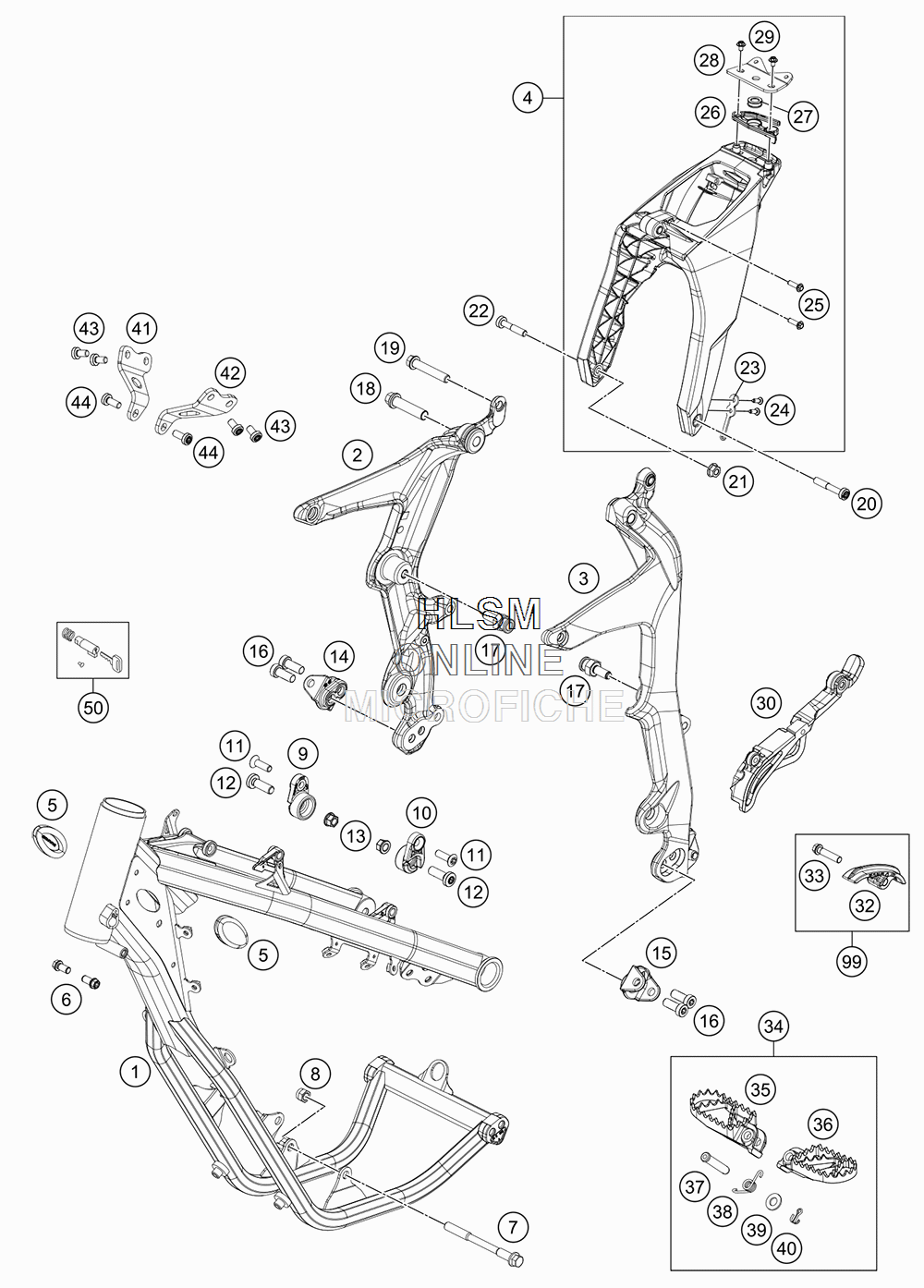

FRAME для Ktm 250 FREERIDE - 2018 года выпуска
-
№АртикулНазвание
-
172103001000EB FRAME "721R1" ELEC. ORANGEFRAME "721R1" ELEC. ORANGE
-
272103001152 CONNECTION SUPPORT RIGHTCONNECTION SUPPORT RIGHT
-
372103101051 LINKAGE BRACKET, LEFT PREMOUNT.LINKAGE BRACKET, LEFT PREMOUNT.
-
470003002033 SUBFRAME CPL.SUBFRAME CPL.
-
558404041000 CLOSING COVER SWINGARM SMCLOSING COVER SWINGARM SM
-
60025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
777203014000 ENGINE BRAC.SCR. M10X115ENGINE BRAC.SCR. M10X115
-
854310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
972007015000 FUEL TANK CARRIER R/SFUEL TANK CARRIER R/S
-
1072007014000 FUEL TANK CARRIER L/SFUEL TANK CARRIER L/S
-
110019080306S COUNTER-SUNK SCREW ISA45 M8X30COUNTER-SUNK SCREW ISA45 M8X30
-
120035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
1354630044000 COLLAR NUT M10COLLAR NUT M10
-
1470003039100 FOOTREST MOUNTING R/S '12FOOTREST MOUNTING R/S '12
-
1570003038100 FOOTREST MOUNTING L/S '12FOOTREST MOUNTING L/S '12
-
160032100256S AH-COLLAR SCREW M10X25 ISA45AH-COLLAR SCREW M10X25 ISA45
-
1772003001059 SPECIAL SCREW M10 SW19SPECIAL SCREW M10 SW19
-
1870004016000 MONOSHOCK SCREW TOP M12X80MONOSHOCK SCREW TOP M12X80
-
1969004094000 HH COLLAR SCREW M10X56 WS13HH COLLAR SCREW M10X56 WS13
-
200035080506S AH-COLLAR SCREW M8X50 ISA45AH-COLLAR SCREW M8X50 ISA45
-
2154310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
220035080406 AH-COLLAR SCREW M8X40 ISA45AH-COLLAR SCREW M8X40 ISA45
-
2370003024050 SIDE STAND SPRING PLATESIDE STAND SPRING PLATE
-
240017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
250016070253 PLASTIC SCREW K7X25 PT1447PLASTIC SCREW K7X25 PT1447
-
2670007039000 SEAT LOCKING MECHANISMSEAT LOCKING MECHANISM
-
2770007039060 BUSHING QUICK LOCKBUSHING QUICK LOCK
-
2870007039050 BRACKET QUICK LOCKBRACKET QUICK LOCK
-
290024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
3072103096000 SPROCKET COVER FREERIDE 350SPROCKET COVER FREERIDE 350
-
3270003053000 CHAIN SLIDING PIECE BELOW CPL.CHAIN SLIDING PIECE BELOW CPL.
-
330025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
3478003040033 FOOTREST L/S + R/S CPL.FOOTREST L/S + R/S CPL.
-
3578003041050 FOOTREST R/SFOOTREST R/S
-
3678003040050 FOOTREST L/SFOOTREST L/S
-
3754803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
3854603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
390125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
400094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4172103014000 ENGINE BRACKET RIGHTENGINE BRACKET RIGHT
-
4272103013000 ENGINE BRACKET LEFTENGINE BRACKET LEFT
-
430035080156S AH-COLLAR SCREW M8X15 TORX45AH-COLLAR SCREW M8X15 TORX45
-
440035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
5078003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
-
9970003053010 CHAIN SLIDING KIT BELOWCHAIN SLIDING KIT BELOW
