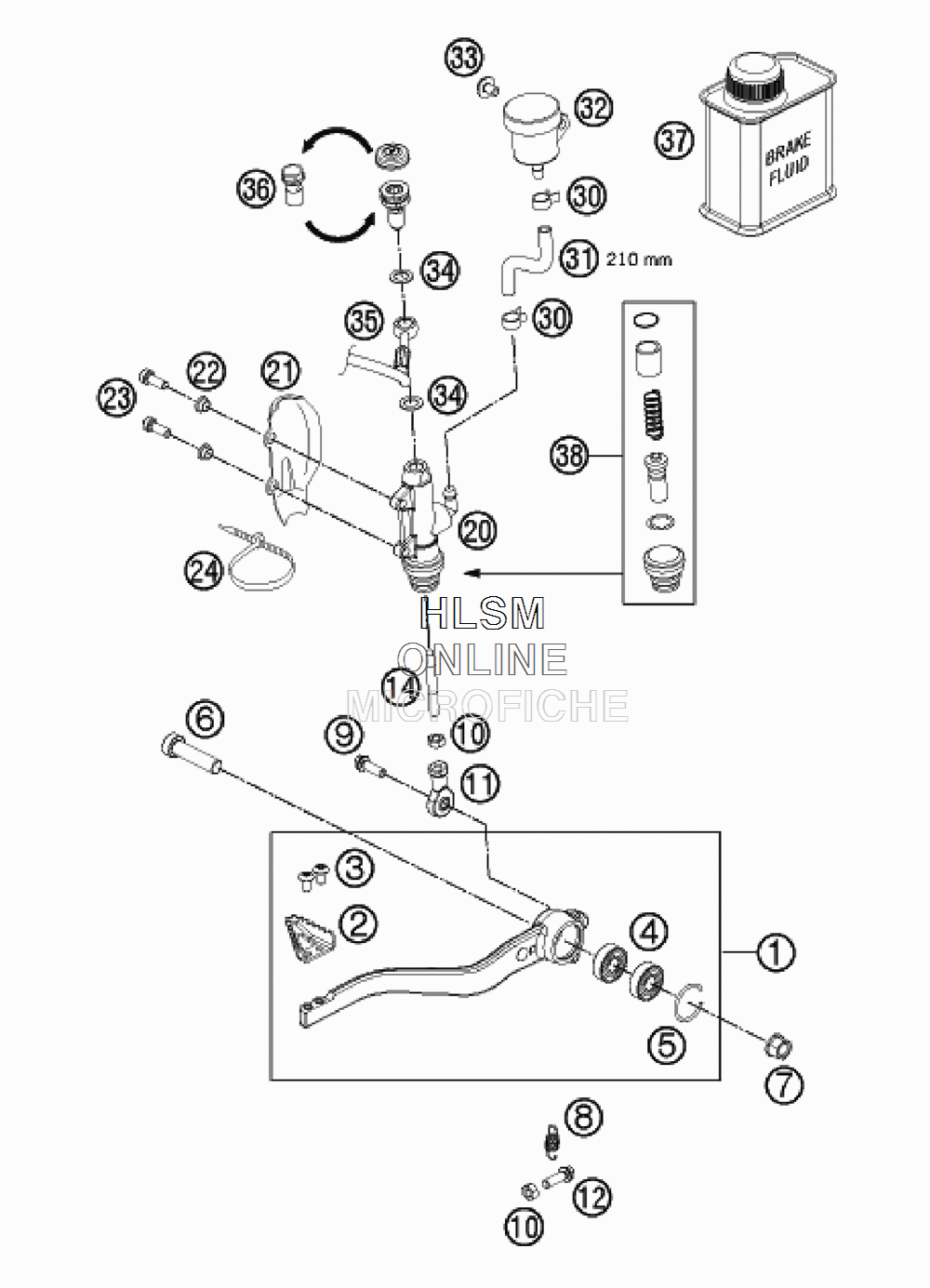

REAR BRAKE CONTROL для Ktm 690 DUKE ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7501305004401 FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 2
    60013051000 STEP PLATE FOOT BRAKE LEVER
    STEP PLATE FOOT BRAKE LEVER
  • 3
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 4
    0625060002 BALL BEARING SKF 6000-2RS1
    BALL BEARING SKF 6000-2RS1
  • 5
    0993026500 LOCK RING DIN7993-B26
    LOCK RING DIN7993-B26
  • 6
    0032100406S AH-COLLAR SCREW M10X40 ISA45
    AH-COLLAR SCREW M10X40 ISA45
  • 7
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 8
    61013052000 SPRING FOOT BRAKE LEVER
    SPRING FOOT BRAKE LEVER
  • 9
    0025060206S HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 10
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 11
    54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.
    SWIVEL HEAD M6 FOOT BRAKE LEV.
  • 12
    59009062026 SPECIAL SCREW M6X26 SW=8 10.9
    SPECIAL SCREW M6X26 SW=8 10.9
  • 14
    54603068000 PRESSURE ROD ALU
    PRESSURE ROD ALU
  • 20
    54513101044 MAIN BRAKE CYLINDER
    MAIN BRAKE CYLINDER
  • 21
    54513038000 BRAKE CYL. PROTECTOR "BREMBO"
    BRAKE CYL. PROTECTOR "BREMBO"
  • 22
    50213161000 COLLAR BUSHING
    COLLAR BUSHING
  • 23
    0025060206S HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 24
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 30
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 31
    69013069001 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 32
    54513030044 BRAKE FLUID RESERVOIR
    BRAKE FLUID RESERVOIR
  • 33
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 34
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 35
    76042003000 BRAKE PIPE
    BRAKE PIPE
  • 36
    62113020100 HOLL. SCREW M10X1X19.5
    HOLL. SCREW M10X1X19.5
  • 37
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
  • 38
    54513150000 REPAIR KIT PISTON 13MM
    REPAIR KIT PISTON 13MM
