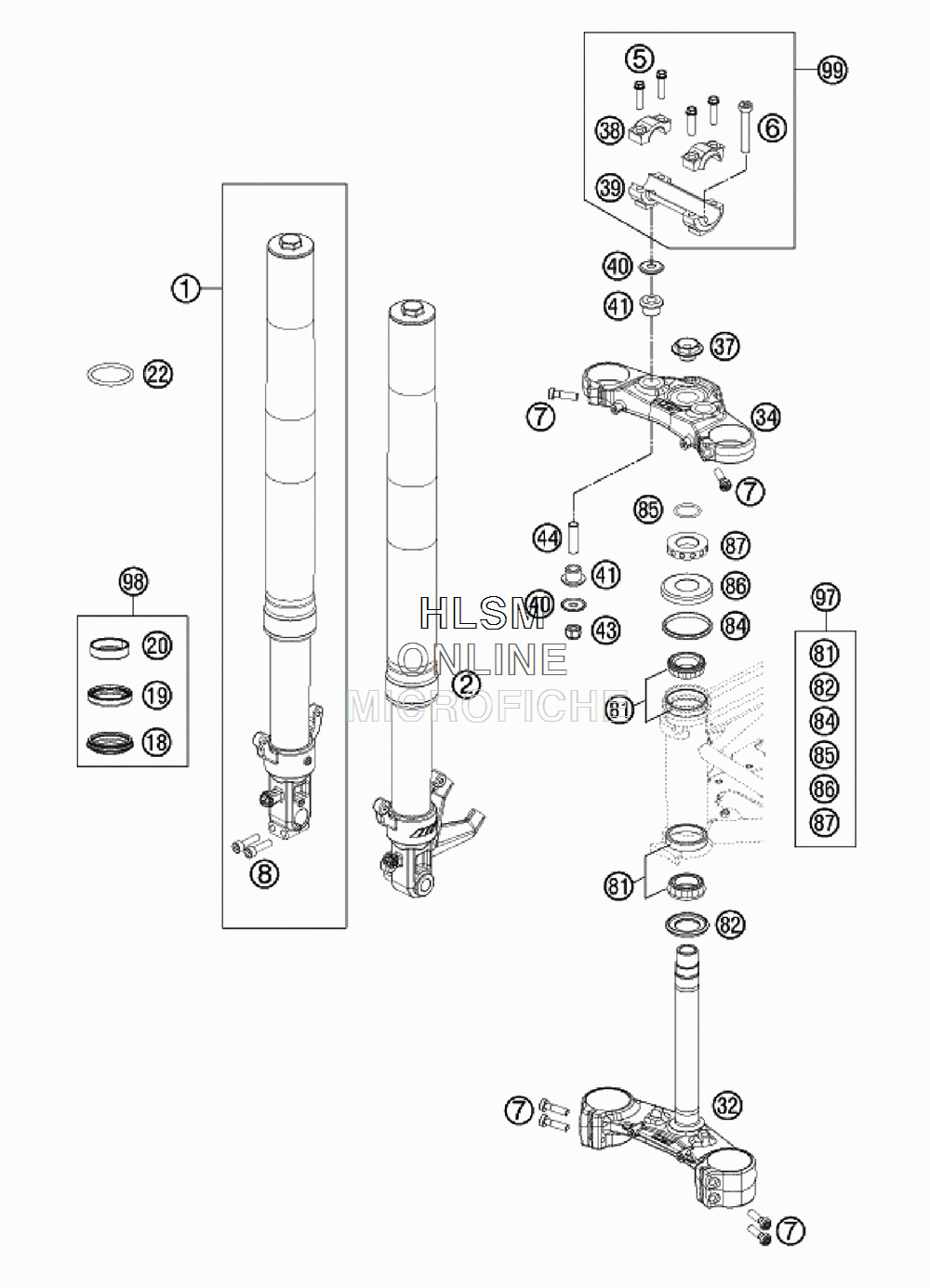

FRONT FORK- TRIPLE CLAMP для Ktm 690 DUKE ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    05187L19R01 FORK WP 690 DUKE R/S
    FORK WP 690 DUKE R/S
  • 2
    05187L19L01 FORK WP 690 DUKE L/S
    FORK WP 690 DUKE L/S
  • 5
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 6
    0012100603 AH SCREW DIN6912-M10X60
    AH SCREW DIN6912-M10X60
  • 7
    0035080306 AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 8
    J020080273 AH SCREW M8X27
    AH SCREW M8X27
  • 18
    43570624 DUST CAP 43X53,4X5,8
    DUST CAP 43X53,4X5,8
  • 19
    43570623 OIL SEAL RING 43X52,9X11,4
    OIL SEAL RING 43X52,9X11,4
  • 20
    43570618 GUIDE BUSHING 43X47X12
    GUIDE BUSHING 43X47X12
  • 22
    40140024 O-RING NBR 43X2
    O-RING NBR 43X2
  • 32
    7600103202801S LOWER TRIPLE CLAMP CPL.
    LOWER TRIPLE CLAMP CPL.
  • 34
    7600103402801S UPPER TRIPLE CLAMP
    UPPER TRIPLE CLAMP
  • 37
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    5900103830001S HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    5900103920001S HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 40
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 41
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 43
    49009082000 SELF LOCKING NUT M10
    SELF LOCKING NUT M10
  • 44
    61001041000 SPACER TUBE 10,2X12X38
    SPACER TUBE 10,2X12X38
  • 81
    54201081100 TAPERED ROLLER BEARING CPL. 06
    TAPERED ROLLER BEARING CPL. 06
  • 82
    77701084000 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    0770275025 O-RING 27,5X2,5 NBR
    O-RING 27,5X2,5 NBR
  • 86
    78101086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 87
    57301036100 STEER.HEAD NUT
    STEER.HEAD NUT
  • 97
    76001080044 STEARING HEAD REP. KIT
    STEARING HEAD REP. KIT
  • 98
    90101000010 REP. KIT FORK KPL.
    REP. KIT FORK KPL.
  • 99
    00050000922 HANDLEBAR SUPPORT KIT
    HANDLEBAR SUPPORT KIT
