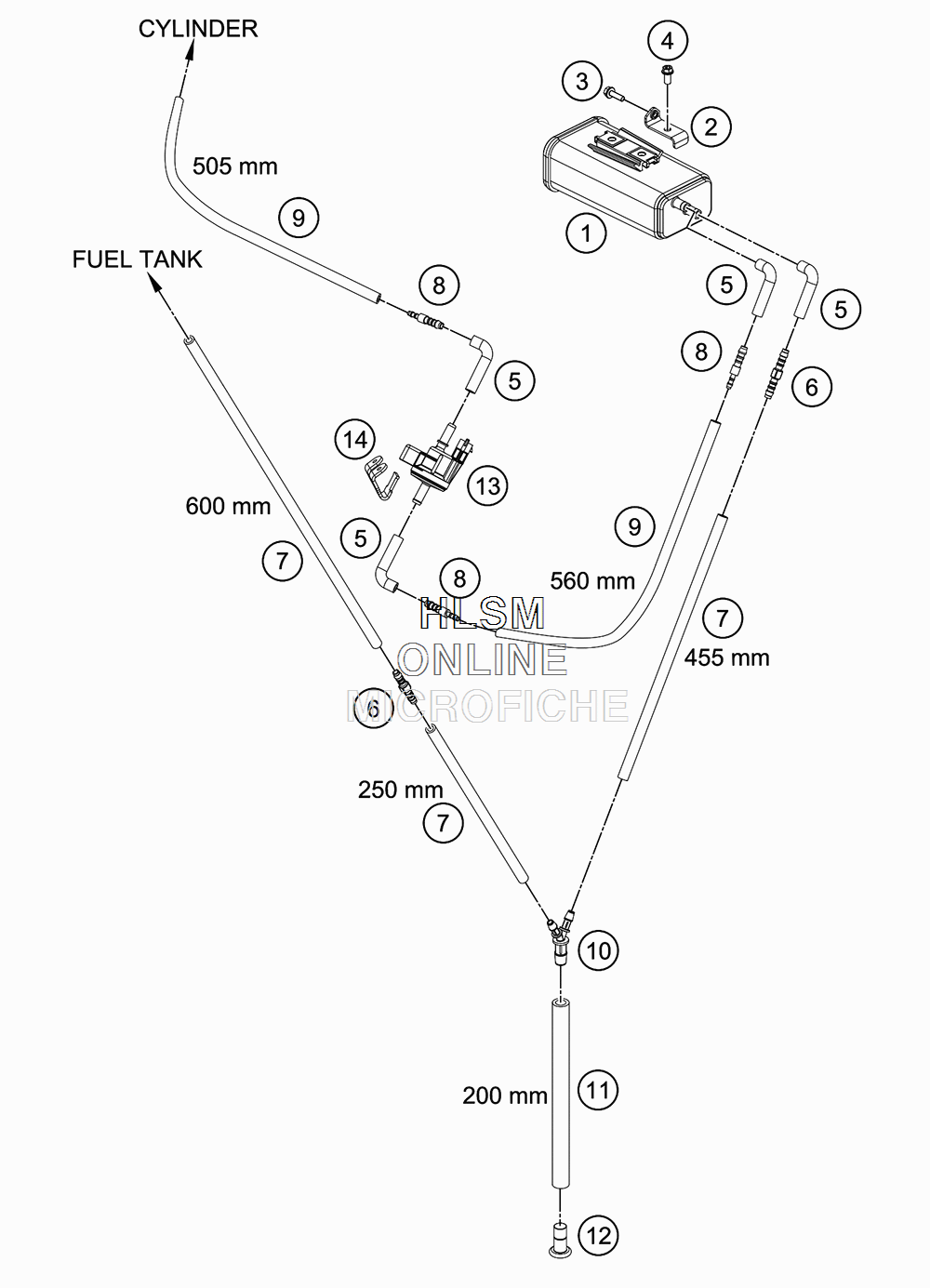

EVAPORATIVE CANISTER для Ktm 690 DUKE ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    75015001200 CARBON CANISTER
    CARBON CANISTER
  • 2
    76015002000 BRACKET EVAP. CANISTER
    BRACKET EVAP. CANISTER
  • 3
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 4
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 5
    61315022000 PREFORMED HOSE 6X10 FPM
    PREFORMED HOSE 6X10 FPM
  • 6
    69015019010 HOSE CONNECTION STRAIGHT
    HOSE CONNECTION STRAIGHT
  • 7
    78015019000 HOSE EPA D=6/10 L=2000MM
    HOSE EPA D=6/10 L=2000MM
  • 8
    75015023000 REDUCTION CONNECTION GRS6-4
    REDUCTION CONNECTION GRS6-4
  • 9
    78015021000 HOSE EPA D=4/8 L=2000MM
    HOSE EPA D=4/8 L=2000MM
  • 10
    61315028100 Y-CONNECTOR YS 6-10-6
    Y-CONNECTOR YS 6-10-6
  • 11
    78015119000 HOSE EPA D=10/16 L=2000MM
    HOSE EPA D=10/16 L=2000MM
  • 12
    61315026000 PLUG D=10
    PLUG D=10
  • 13
    76015015000 VALVE EVAP
    VALVE EVAP
  • 14
    76011047000 BRACKET PURGE VALVE
    BRACKET PURGE VALVE
