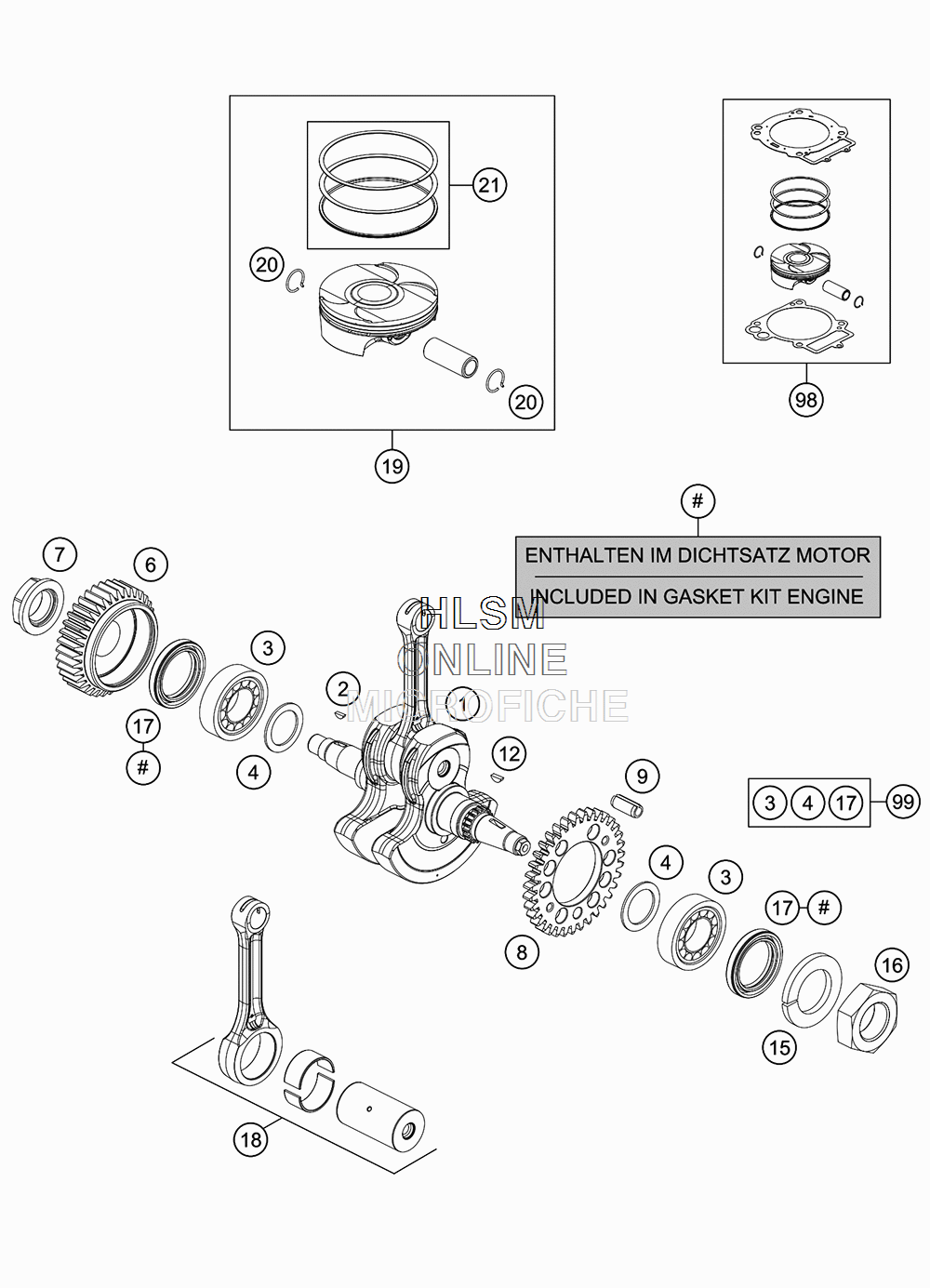

CRANKSHAFT - PISTON для Ktm 690 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
176630018000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
20888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
375030018150 CYL.ROLLER BEARING NJ207 ECPC4CYL.ROLLER BEARING NJ207 ECPC4
-
456530081000 SHIM WASHER 36X48X0,10SHIM WASHER 36X48X0,10
-
456530081100 SHIM WASHER 36X48X0,15SHIM WASHER 36X48X0,15
-
456530081200 SHIM WASHER 36X48X0,20 STEELSHIM WASHER 36X48X0,20 STEEL
-
456530081300 SHIM WASHER 36X48X0,30SHIM WASHER 36X48X0,30
-
675032000102 PRIMARY GEAR 36T.PRIMARY GEAR 36T.
-
775030029100 NUT FOR PRIMARY GEARNUT FOR PRIMARY GEAR
-
875030055100 DRIVE WHEEL BALANCING SHAFTDRIVE WHEEL BALANCING SHAFT
-
90749080300 TENSION PIN ISO13337 8X30TENSION PIN ISO13337 8X30
-
126946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
1558132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
160936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
170760355070 SHAFT SEAL R.35X50X7B VITONSHAFT SEAL R.35X50X7B VITON
-
1876630015044 CONROD REPAIR KITCONROD REPAIR KIT
-
1976630007000I PISTON D=105PISTON D=105
-
1976630007000II PISTON D=105PISTON D=105
-
2075030074000 CIRCLIP LC4CIRCLIP LC4
-
2176630031044 PISTONRING SET D=105PISTONRING SET D=105
-
9800050000237 PISTON KIT SIZE I 690 DUKEPISTON KIT SIZE I 690 DUKE
-
9800050000238 PISTON KIT SIZE II 690 DUKEPISTON KIT SIZE II 690 DUKE
-
9900050002305 CRANKSHAFT REP. KIT 690CRANKSHAFT REP. KIT 690
