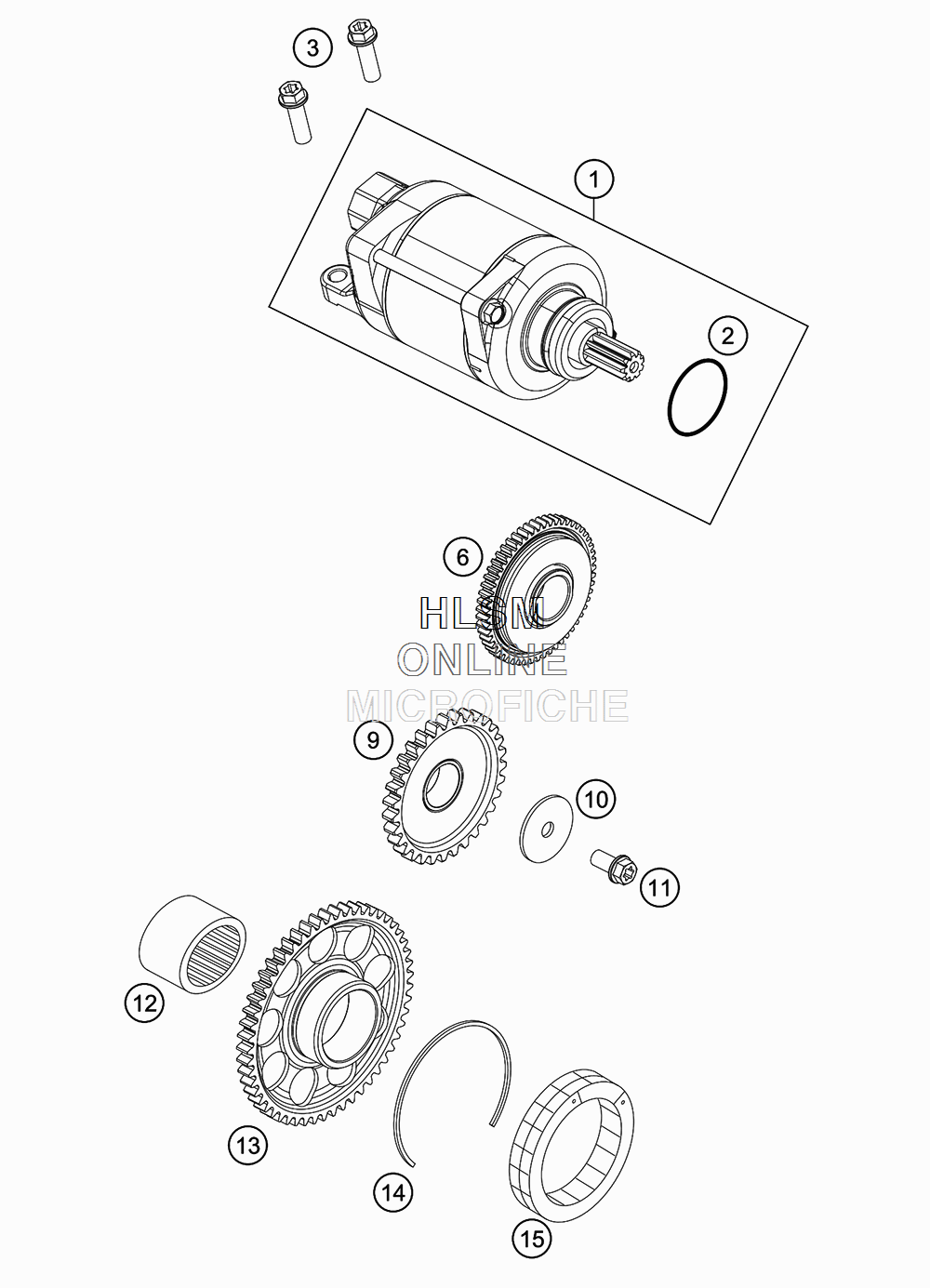

ELECTRIC ST ARTER для Ktm 350 EXC-F - 2017 года выпуска`
-
№АртикулНазвание
-
179240001000 E-STARTER ENGINE CPL.E-STARTER ENGINE CPL.
-
20770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
30025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
679240016000 TORQUE LIMITERTORQUE LIMITER
-
979240022000 INTERMEDIATE STARTING GEARINTERMEDIATE STARTING GEAR
-
1079240017000 STOP DISC 6X26X1,5STOP DISC 6X26X1,5
-
110025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
120618253216 NEEDLE BUSH HK2516 25/32/16 02NEEDLE BUSH HK2516 25/32/16 02
-
1379240020000 FREE WHEEL GEARFREE WHEEL GEAR
-
140472057150 CIRCLIP DIN0472-57X1,50CIRCLIP DIN0472-57X1,50
-
1579240026000 FREEWHEELFREEWHEEL
