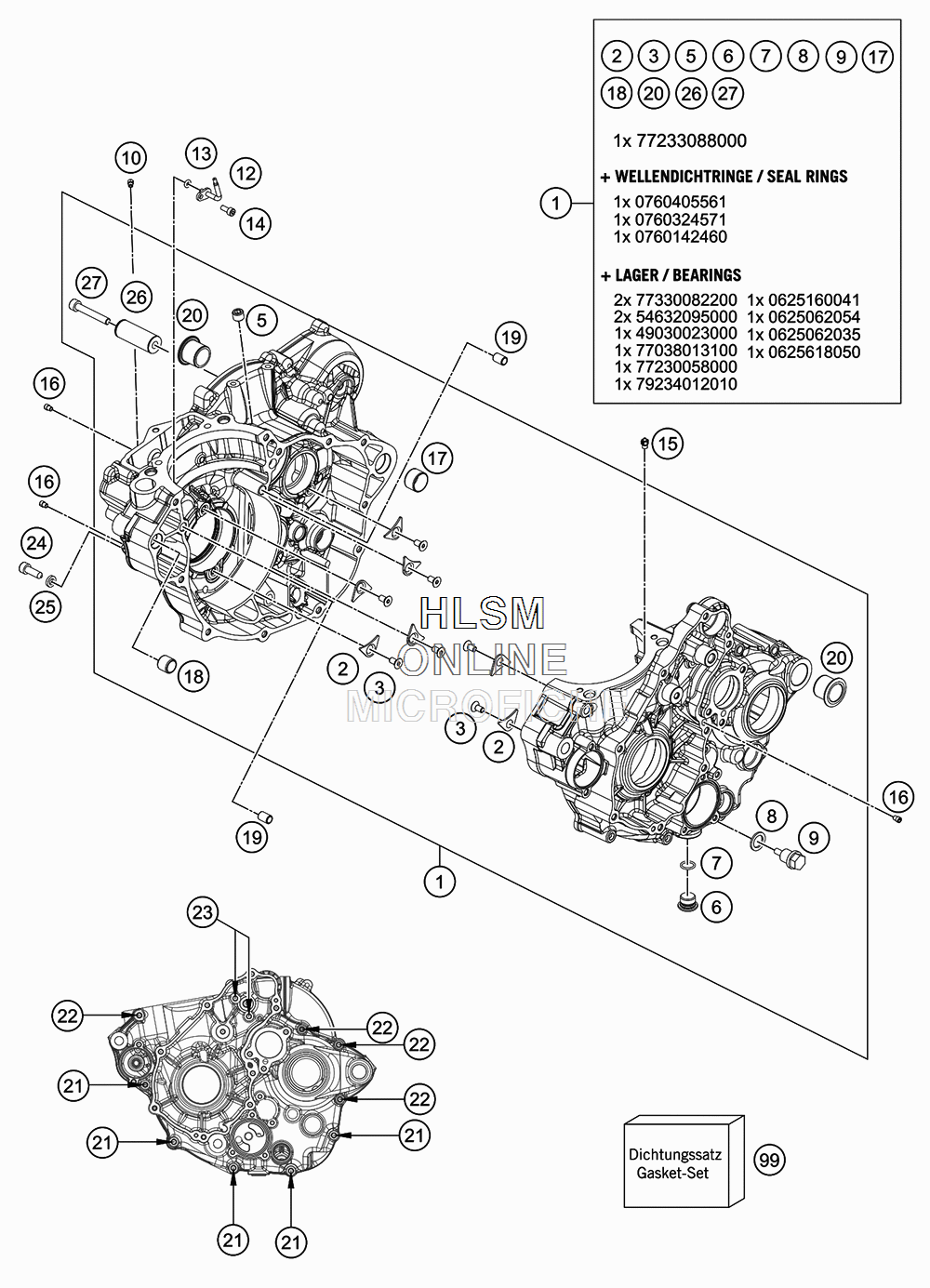

ENGINE CASE для Ktm 350 EXC-F - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79230100033 ENGINE CASE CPL.
    ENGINE CASE CPL.
  • 2
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 3
    0019050121S INT. TORX FLAT HEAD M5X12 T25
    INT. TORX FLAT HEAD M5X12 T25
  • 5
    0906100100 PLUG DIN0906-M10X1
    PLUG DIN0906-M10X1
  • 6
    78036081000 HOLDING BOLT M14X1,5
    HOLDING BOLT M14X1,5
  • 7
    0770110015 O-RING 1,5X11 SILICON
    O-RING 1,5X11 SILICON
  • 8
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 9
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 10
    80030058060 OIL JET "60" M4
    OIL JET "60" M4
  • 12
    77830064070 OIL JET CURVED " 70 "
    OIL JET CURVED " 70 "
  • 13
    0770035020 O-RING 3,5X2,00 NBR
    O-RING 3,5X2,00 NBR
  • 14
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 15
    60030063070 OIL JET 70 M5
    OIL JET 70 M5
  • 16
    59030058000 JET 100 BING(44-031/180) M4
    JET 100 BING(44-031/180) M4
  • 17
    59030024000 DOWEL 17 X 19 X 12
    DOWEL 17 X 19 X 12
  • 18
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 19
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 20
    79230010000 CASE BUSH
    CASE BUSH
  • 21
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
  • 22
    0025060656 HH COLLAR SCREW M6X65
    HH COLLAR SCREW M6X65
  • 23
    0025060706 HH COLLAR SCREW M6X70
    HH COLLAR SCREW M6X70
  • 24
    58030080000 LOCATING SCREW M8 L=23
    LOCATING SCREW M8 L=23
  • 25
    58030081000 CU-SEAL RING 8 X 14 X 3
    CU-SEAL RING 8 X 14 X 3
  • 26
    59033018000 BUSHING PIN
    BUSHING PIN
  • 27
    0912060406 AH SCREW DIN0912 M 6X40
    AH SCREW DIN0912 M 6X40
  • 99
    79030099000 ENGINE GASKET KIT 350 EXC-F 17
    ENGINE GASKET KIT 350 EXC-F 17
