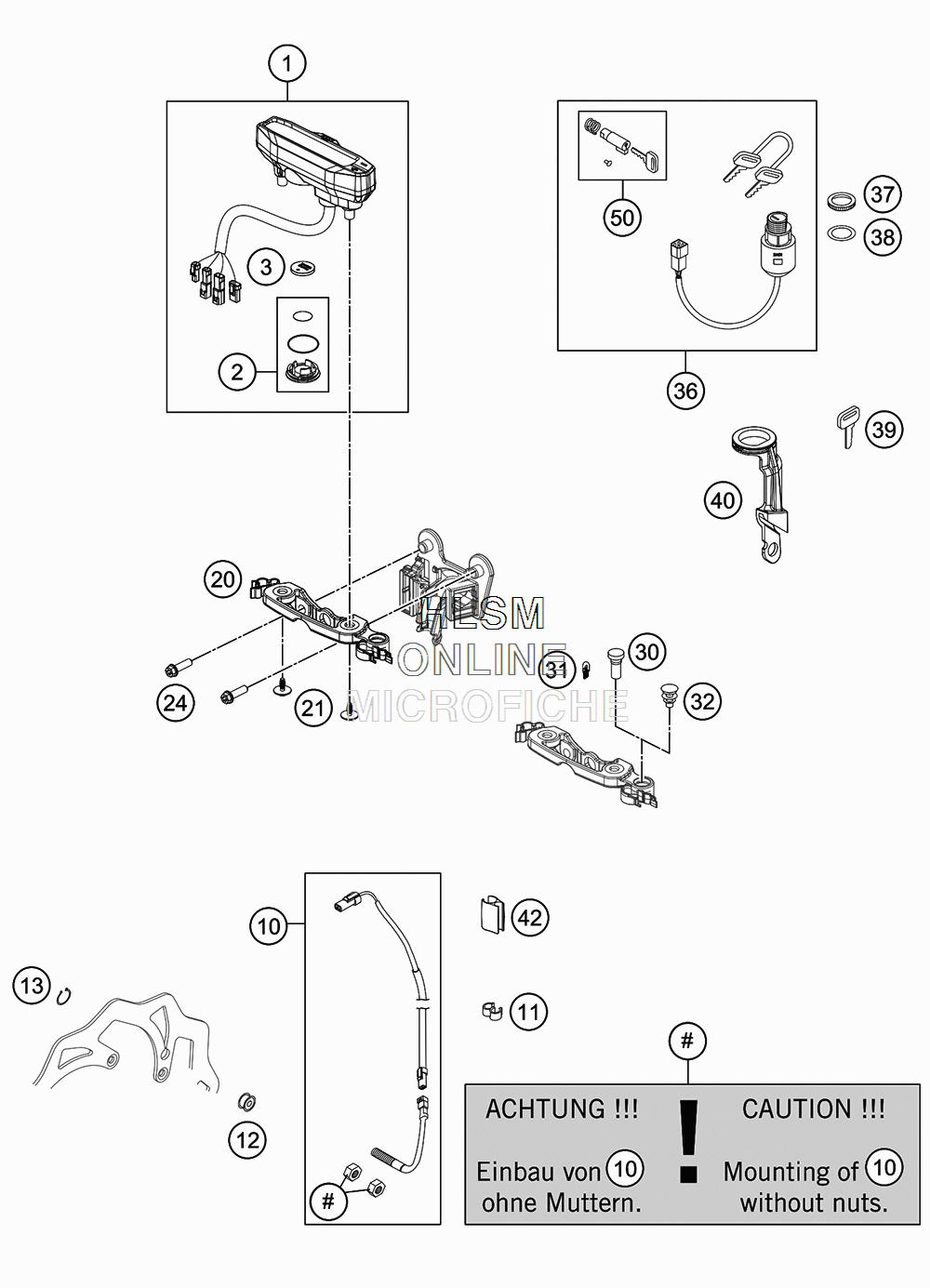

INSTRUMENTS / LOCK SYSTEM для Ktm 350 EXC-F - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    77714069400 TACHO DIGITAL KM/H F. 21"
    TACHO DIGITAL KM/H F. 21"
  • 2
    77714069010 BATTERY COVER F. SPEEDOMETER
    BATTERY COVER F. SPEEDOMETER
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E. 02
    BATTERY F. SPEEDOM. M.A.E. 02
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM. 06
    CABLE FOR DIGITAL SPEEDOM. 06
  • 11
    60111094000 CLIP 5/7 MM
    CLIP 5/7 MM
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM. 03
    MAGNET FOR DIGITAL SPEEDOM. 03
  • 13
    0471009104 CIRCLIP DIN0471- 9X1
    CIRCLIP DIN0471- 9X1
  • 20
    77714060000 SPEEDOMETER BRACKET EXC/XCW 14
    SPEEDOMETER BRACKET EXC/XCW 14
  • 21
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 24
    0024060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 30
    58011024300 FLASHER INDICAT.LIGHT GREEN'98
    FLASHER INDICAT.LIGHT GREEN'98
  • 31
    49111425200 BULB 12V 2,3W (W2X4,6D)
    BULB 12V 2,3W (W2X4,6D)
  • 32
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 36
    78011065100 IGNITION LOCK SET STR.LE
    IGNITION LOCK SET STR.LE
  • 37
    50311066050 IGNITION LOCK NUT M24X1
    IGNITION LOCK NUT M24X1
  • 38
    58411066450 WASHER F. IGNITION LOCK
    WASHER F. IGNITION LOCK
  • 39
    40011166200 KEY BLANK
    KEY BLANK
  • 40
    79611065050 IGNITION LOCK BRACKET
    IGNITION LOCK BRACKET
  • 42
    54813026000 CABLE SUPPORT 10/6MM
    CABLE SUPPORT 10/6MM
  • 50
    78003035000 STEERING HEAD LOCK
    STEERING HEAD LOCK
