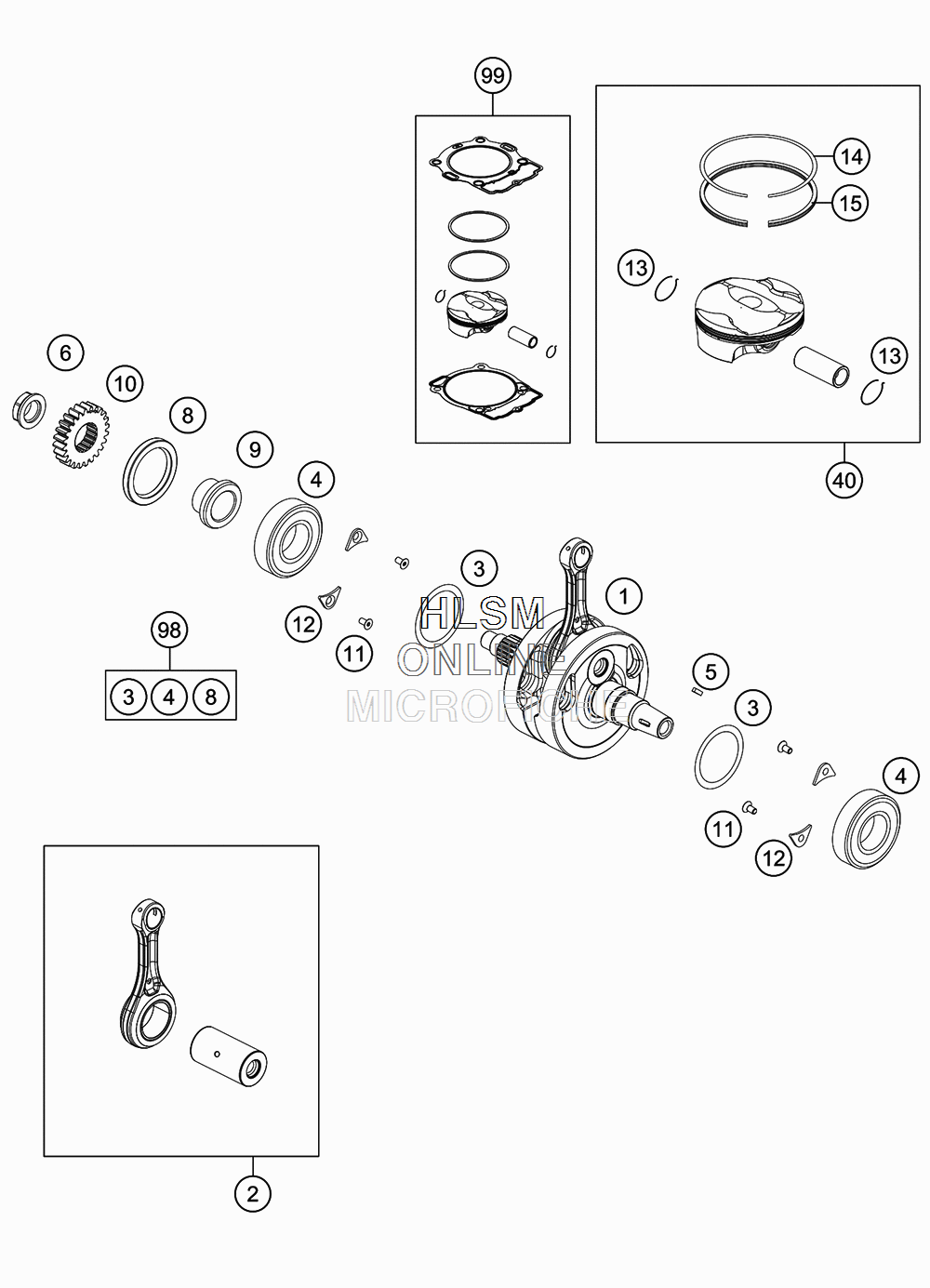

CRANKSHAFT PISTON для Ktm 350 EXC-F - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79230118100 CRANKSHA FT CPL.
    CRANKSHA FT CPL.
  • 2
    79230115144 CONROD REP AIR KIT
    CONROD REP AIR KIT
  • 3
    0988324510 THRUST WASHER 988ST 32X0,1
    THRUST WASHER 988ST 32X0,1
  • 3
    0988324515 THRUST WASHER 988ST 32X0,15
    THRUST WASHER 988ST 32X0,15
  • 3
    0988324530 THRUST WASHER 988ST 32X0,30
    THRUST WASHER 988ST 32X0,30
  • 4
    77330082200 BEARING NJ 206 ECP/HN3C4HVA624
    BEARING NJ 206 ECP/HN3C4HVA624
  • 5
    0888030037 WOODRUFF KEY DIN6888-3X3,7
    WOODRUFF KEY DIN6888-3X3,7
  • 6
    77230029000 NUT PRIMARY WHEEL
    NUT PRIMARY WHEEL
  • 7
    0760304760 SHAFT SEAL RING A30X47X6 VITON
    SHAFT SEAL RING A30X47X6 VITON
  • 8
    0760405561 SHAFT SEAL RING A 40X55X6 V.
    SHAFT SEAL RING A 40X55X6 V.
  • 9
    77232022000 SPACER BUSHING PRIMARY GEAR
    SPACER BUSHING PRIMARY GEAR
  • 10
    79232023024 PRIMARY GEAR 24T.
    PRIMARY GEAR 24T.
  • 11
    0019050121S INT. TORX FLAT HEAD M5X12 T25
    INT. TORX FLAT HEAD M5X12 T25
  • 12
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 13
    79230274000 CIRCLIP PISTON PIN
    CIRCLIP PISTON PIN
  • 14
    77230030000 COMPRESSIONRING 350
    COMPRESSIONRING 350
  • 15
    79230232000 OIL SCRAPER RING
    OIL SCRAPER RING
  • 40
    79230507000 I PISTON I CPL. 350
    I PISTON I CPL. 350
  • 40
    79230507000 II PISTON II CPL. 350
    II PISTON II CPL. 350
  • 98
    00050002316 CRANKSHAFT REP. KIT
    CRANKSHAFT REP. KIT
  • 99
    00050000241 PISTON KIT I 350 2017
    PISTON KIT I 350 2017
  • 99
    00050000242 PISTON KIT II 350 2017
    PISTON KIT II 350 2017
