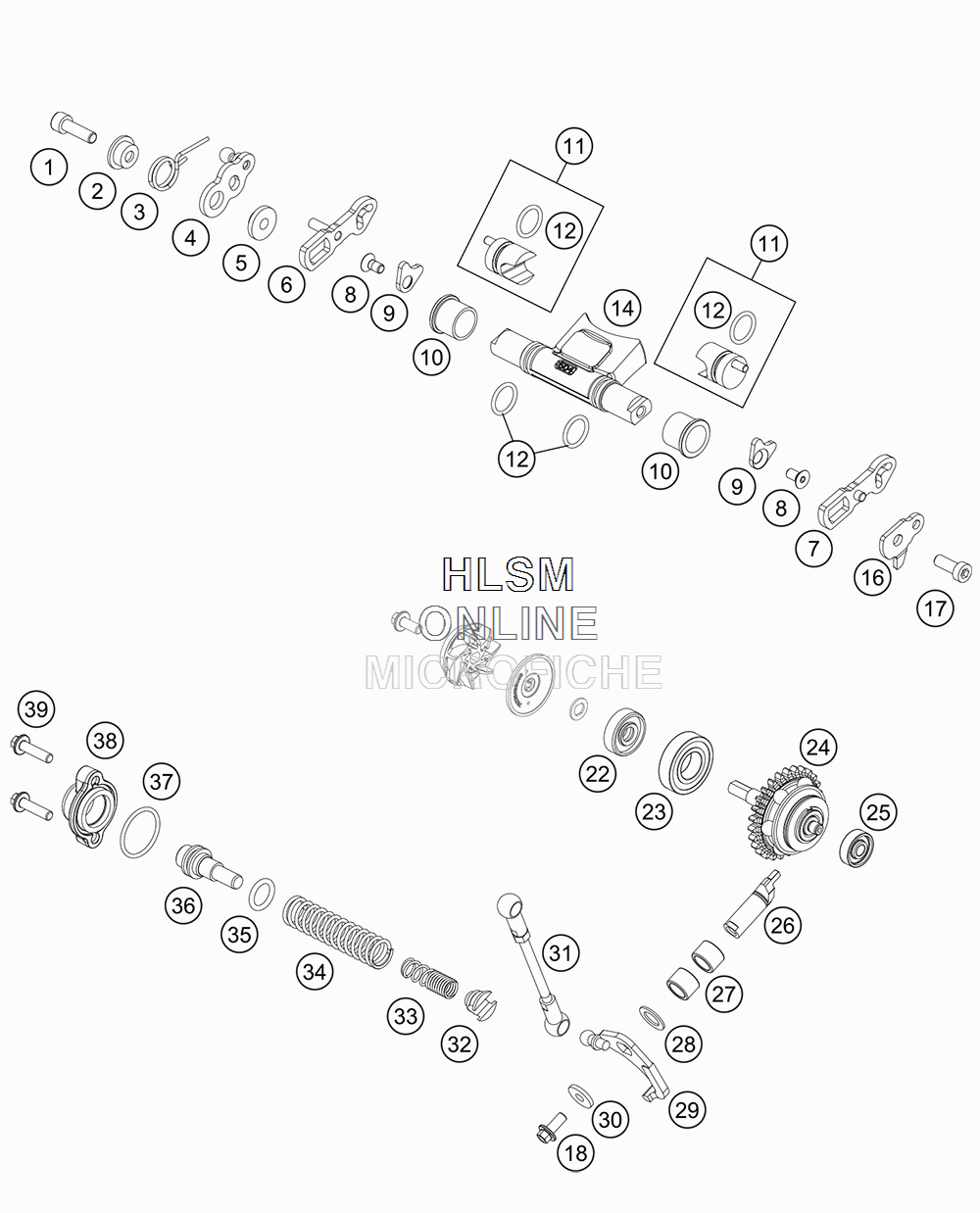

EXHAUST CONTROL для Ktm 150 XC-W - 2017 года выпуска`
-
№АртикулНазвание
-
10912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
254637067000 SPRING SLEEVESPRING SLEEVE
-
354637066000 OVERLOAD SPRINGOVERLOAD SPRING
-
454637065000 CONTROL LEVER WITH BALL TYPECONTROL LEVER WITH BALL TYPE
-
554637068100 BUSHING SLEEVEBUSHING SLEEVE
-
650437065044 SLOTTED LEVER R/SSLOTTED LEVER R/S
-
750437064044 SLOTTED LEVER L/SSLOTTED LEVER L/S
-
80019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
950437079000 LOCK PLATELOCK PLATE
-
1050437023000 BEARING SLEEVE F. CONTROL FLAPBEARING SLEEVE F. CONTROL FLAP
-
1151637061044 CONTROLLER DRUM CPL.CONTROLLER DRUM CPL.
-
120770140201 O-RING 14X2 FPM 75SHO-RING 14X2 FPM 75SH
-
1451637020000 EXHAUST FLAPEXHAUST FLAP
-
1650437085000 STOP PLATESTOP PLATE
-
170912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
180014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
220760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
230625160020 BALL BEARING 16002 C3BALL BEARING 16002 C3
-
2450437050044 CENTRIFUGAL UNITCENTRIFUGAL UNIT
-
2554637098100 BALL BEARING 626LLBC3/5KBALL BEARING 626LLBC3/5K
-
2650437057100 ADJUSTING LEVER 125/150ADJUSTING LEVER 125/150
-
270618101410 NEEDLE SLEEVE HK 1010 10/14/10NEEDLE SLEEVE HK 1010 10/14/10
-
280988101610 SHIM WASHER DIN988 10X16X1SHIM WASHER DIN988 10X16X1
-
2954637055244 ANGLE LEVER CPL.ANGLE LEVER CPL.
-
300349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
3150437095044 CONNECTING ROD CPL.CONNECTING ROD CPL.
-
3254637071200 SPRING INSERTSPRING INSERT
-
3350437069050 SUPPORT SPRINGSUPPORT SPRING
-
3454637072000 ADJUST.SPRING L=65MM D=1,8MMADJUST.SPRING L=65MM D=1,8MM
-
350770021120 O-RING 12,37X2,62 NBR70O-RING 12,37X2,62 NBR70
-
3654837075000 SPRING GUIDE 250/300SPRING GUIDE 250/300
-
370770240020 O-RING 24,00X2,00 NBR70O-RING 24,00X2,00 NBR70
-
3854637070100 COVER LIDCOVER LID
-
390014050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
