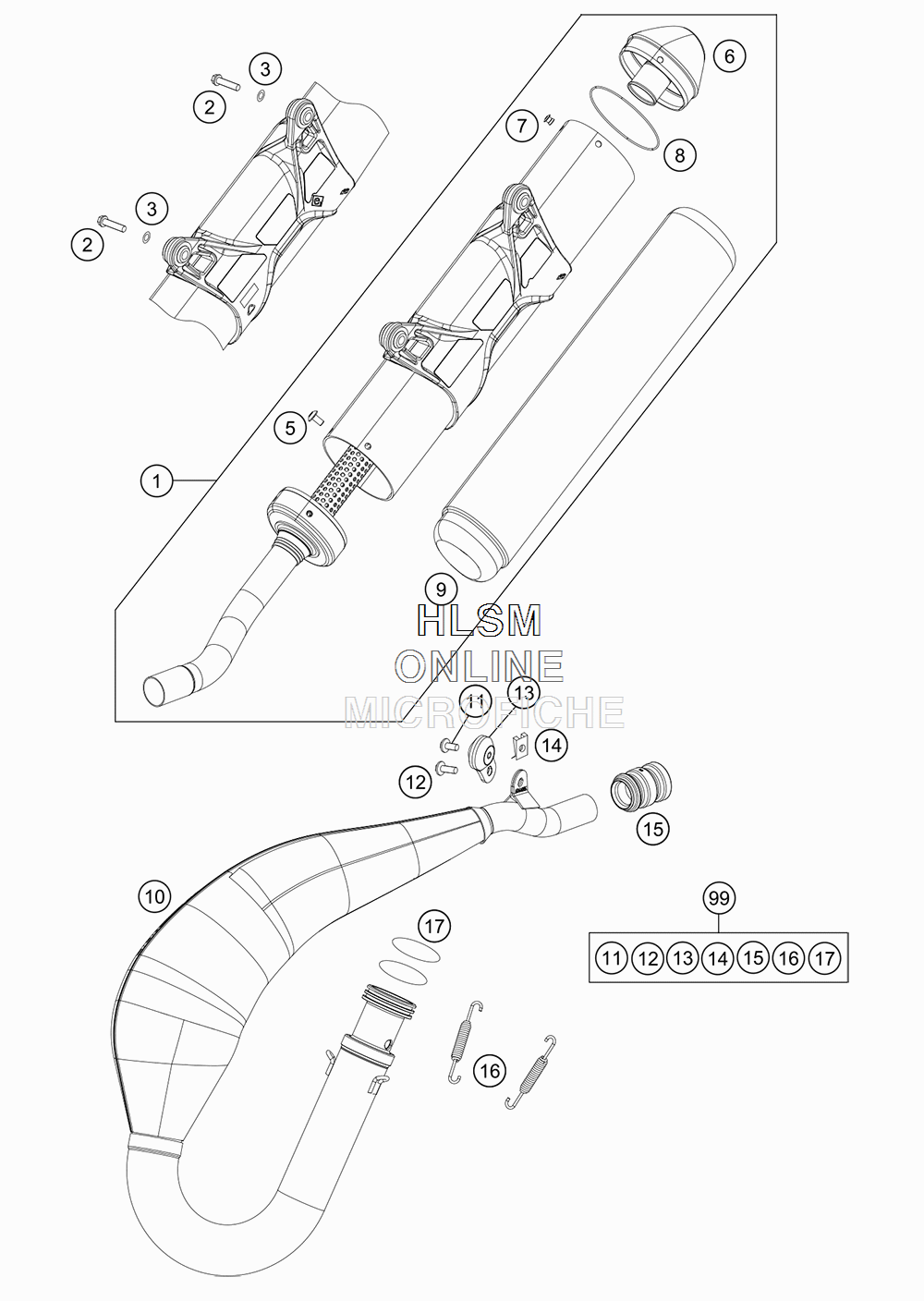

EXHAUST SYSTEM для Ktm 150 XC-W - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    50405083000 SILENCER 125 EXC
    SILENCER 125 EXC
  • 2
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 3
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 5
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 6
    50305083260 END CAP CPL.
    END CAP CPL.
  • 7
    0011480800 DUMMY RIVET 4,8X 8 NIRO
    DUMMY RIVET 4,8X 8 NIRO
  • 8
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 9
    54805078265 ROCK WOOL 265G
    ROCK WOOL 265G
  • 10
    50405007100 EXHAUST PIPE
    EXHAUST PIPE
  • 11
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 12
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 13
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 14
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 15
    54605057000 RUBBER SLEEVE D=21MM/23MM
    RUBBER SLEEVE D=21MM/23MM
  • 16
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 17
    0770440030 O-RING 44,00X3,00 VITON
    O-RING 44,00X3,00 VITON
  • 99
    00050000811 EXHAUST HARDWARE KIT
    EXHAUST HARDWARE KIT
