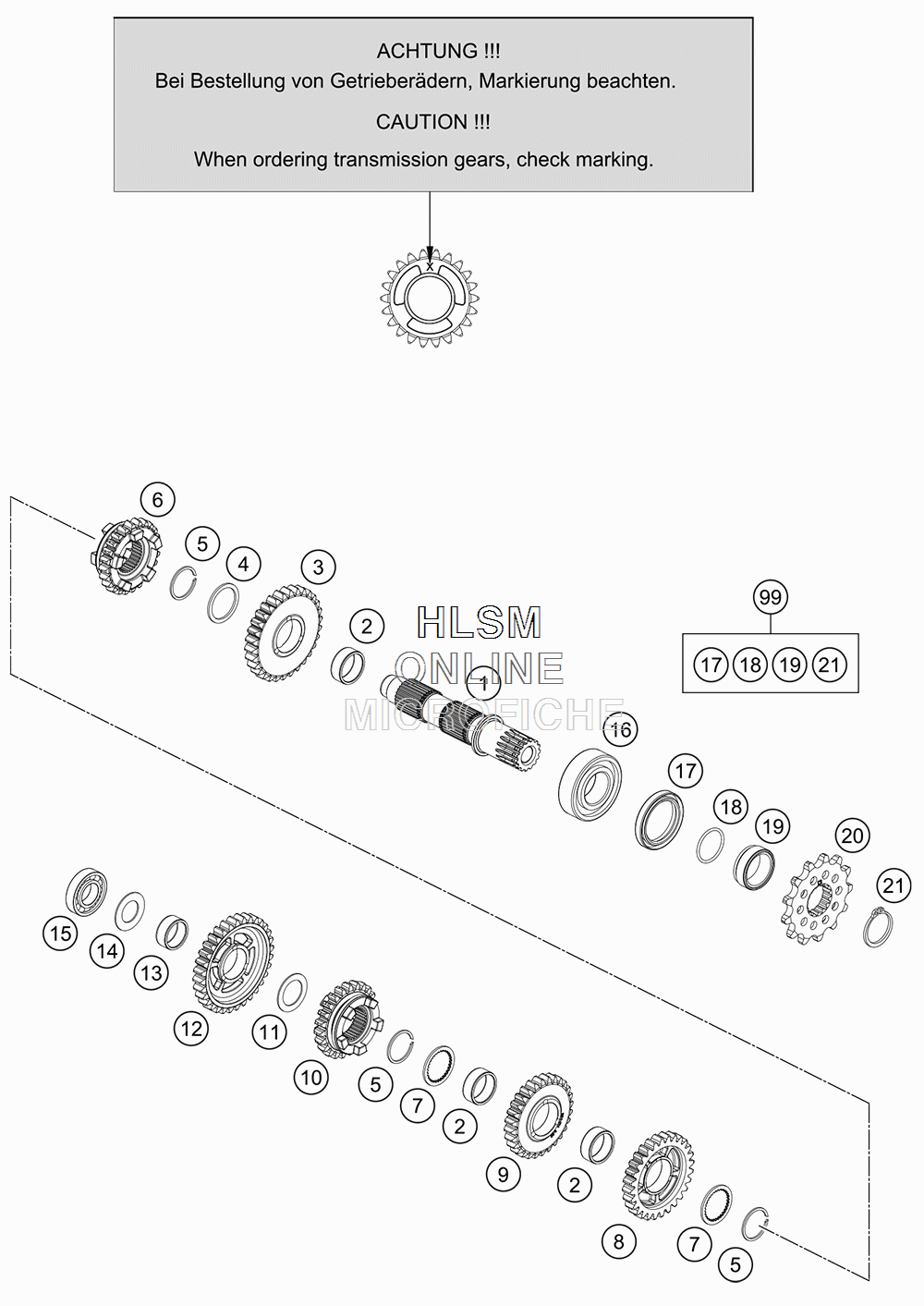

TRANSMISSION - COUNTERSHAFT для Ktm 150 XC-W - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    50433010000 DRIVEN SHAFT CPL.
    DRIVEN SHAFT CPL.
  • 2
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 3
    50433112000 IDLER 2ND GEAR NOT=31
    IDLER 2ND GEAR NOT=31
  • 4
    54833044000 STOP DISC 25X31X1,5
    STOP DISC 25X31X1,5
  • 5
    0417024000 CIRCLIP WS24
    CIRCLIP WS24
  • 6
    50433116000 IDLER 6TH GEAR NOT=20
    IDLER 6TH GEAR NOT=20
  • 7
    54833043000 STOP DISC 25X0,8X30X30X7H
    STOP DISC 25X0,8X30X30X7H
  • 8
    50433013000 IDLER GEAR, 3RD GEAR, 28T
    IDLER GEAR, 3RD GEAR, 28T
  • 9
    50433114000 IDLER 4TH GEAR NOT=26
    IDLER 4TH GEAR NOT=26
  • 10
    50433115100 IDLER 5TH GEAR NOT=25
    IDLER 5TH GEAR NOT=25
  • 11
    54833080000 STOP DISC 20,2X30X1
    STOP DISC 20,2X30X1
  • 12
    50433111000 IDLER 1ST GEAR NOT=33
    IDLER 1ST GEAR NOT=33
  • 13
    0405202410 NEEDLE BEARING K20X24X10
    NEEDLE BEARING K20X24X10
  • 14
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 15
    0625160031 GROOVED BALL B. 16003 C4 J1
    GROOVED BALL B. 16003 C4 J1
  • 16
    0625062054 BALL BEARING 6205 C3 NTN
    BALL BEARING 6205 C3 NTN
  • 17
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 18
    0770230020 O-RING 23,00X2,00 NBR70
    O-RING 23,00X2,00 NBR70
  • 19
    50433030000 SPACER BUSHING 12,4 MM
    SPACER BUSHING 12,4 MM
  • 20
    79233029013 SPROCKET 13T
    SPROCKET 13T
  • 21
    0471250200 CIRCLIP DIN0471 - 25X2
    CIRCLIP DIN0471 - 25X2
  • 99
    00050000949 COUNTER SHAFT REP. KIT
    COUNTER SHAFT REP. KIT
