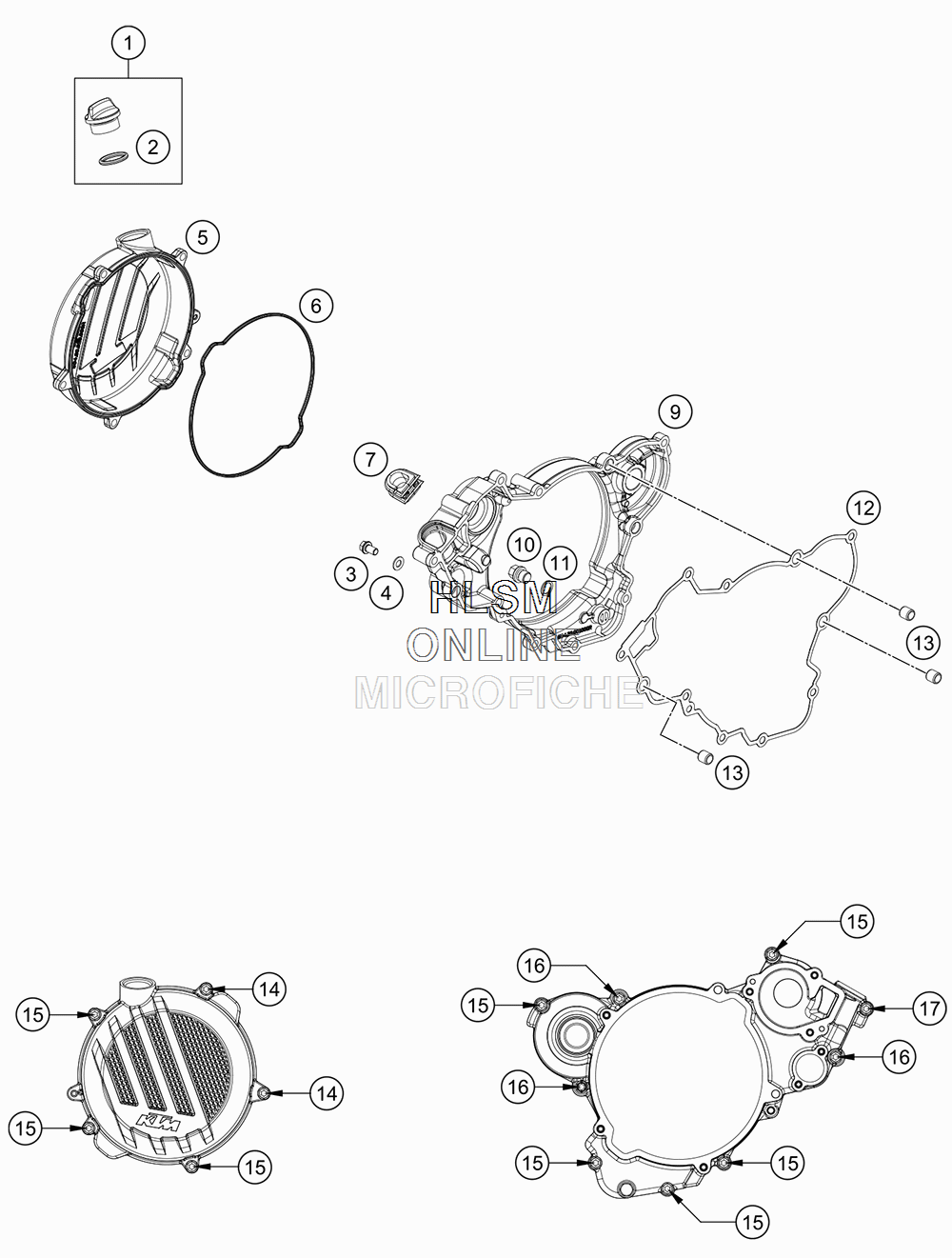

CLUTCH COVER для Ktm 150 XC-W - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79430020033 OIL FILLER CAP M24X3 WITH O-RING
    OIL FILLER CAP M24X3 WITH O-RING
  • 2
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 3
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 4
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 5
    5043002600015 OUTER CLUTCH COVER
    OUTER CLUTCH COVER
  • 6
    50430027000 GASKET OUTER CLUTCH COVER
    GASKET OUTER CLUTCH COVER
  • 7
    50437091000 SEALING ELEMENT
    SEALING ELEMENT
  • 9
    50430001044 INNER CLUTCH COVER CPL.
    INNER CLUTCH COVER CPL.
  • 10
    0910100003 PLUG DIN0910-M 10X1
    PLUG DIN0910-M 10X1
  • 11
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 12
    50430025000 GASKET INNER CLUTCH COVER
    GASKET INNER CLUTCH COVER
  • 13
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 14
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
  • 15
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 16
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 17
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
