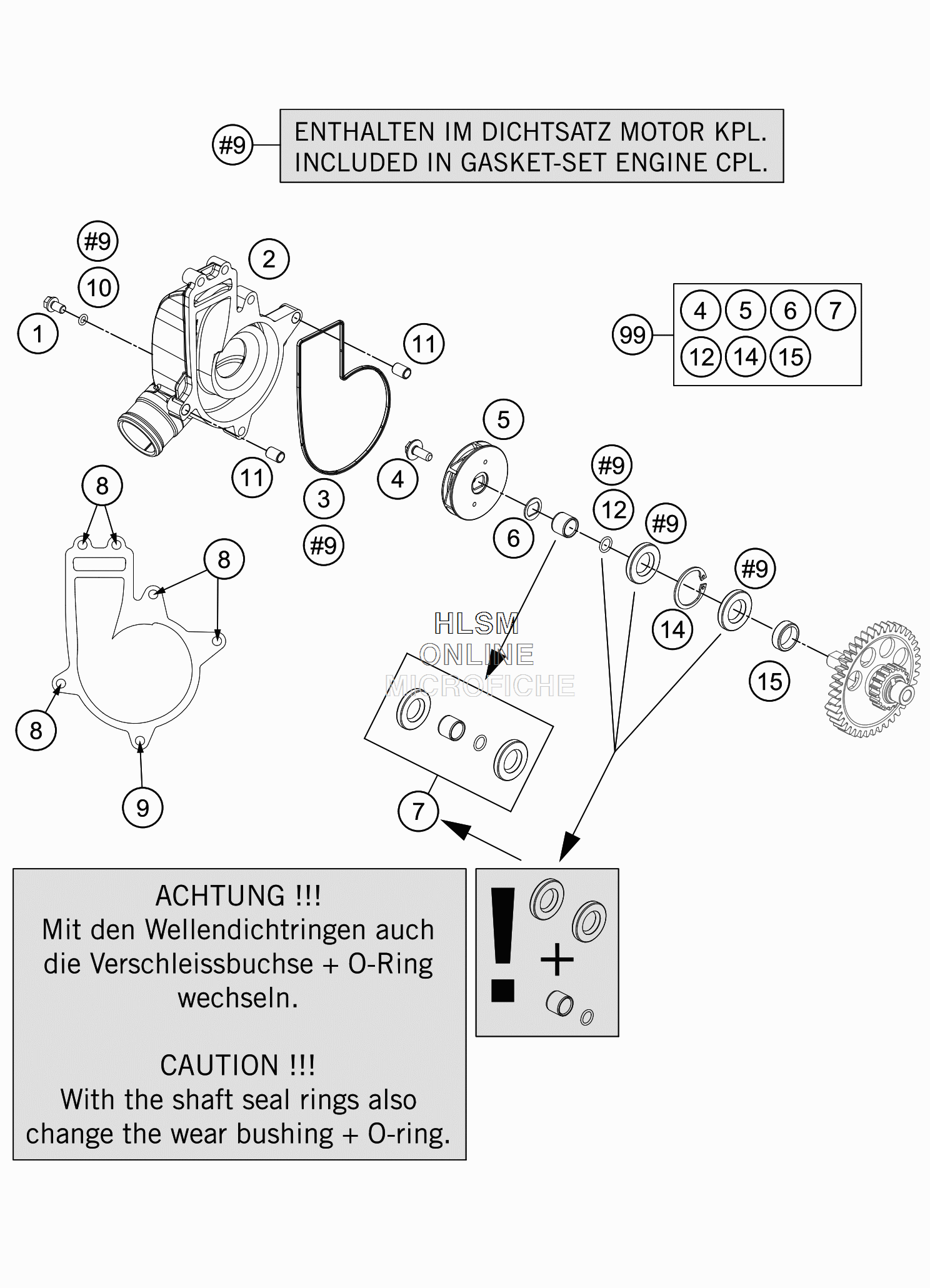

WATER PUMP для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 2
    6033505200041 WATER PUMP COVER CPL.
    WATER PUMP COVER CPL.
  • 3
    61235061000 MOLDED RING WATER PUMP COV.
    MOLDED RING WATER PUMP COV.
  • 4
    0024060136 HH COLLAR SCREW M6X13
    HH COLLAR SCREW M6X13
  • 5
    60335055100 WATER PUMP WHEEL CPL.
    WATER PUMP WHEEL CPL.
  • 6
    60035055150 FORM WASHER 16X1 NIRO
    FORM WASHER 16X1 NIRO
  • 7
    61235065244 WEAR BUSHING WITH SEAL RING
    WEAR BUSHING WITH SEAL RING
  • 8
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 9
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 10
    0770050012 O-RING 5,0X1,2 NBR 70
    O-RING 5,0X1,2 NBR 70
  • 11
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 12
    07700900151 O-RING 9X1,5 V80 SH
    O-RING 9X1,5 V80 SH
  • 14
    04720300121 CIRCLIP DIN0472-30X1,2 NIRO
    CIRCLIP DIN0472-30X1,2 NIRO
  • 15
    61330157050 SLIDE BEARING
    SLIDE BEARING
  • 99
    60335055110 WATER PUMP REP. KIT ADV.1190
    WATER PUMP REP. KIT ADV.1190
